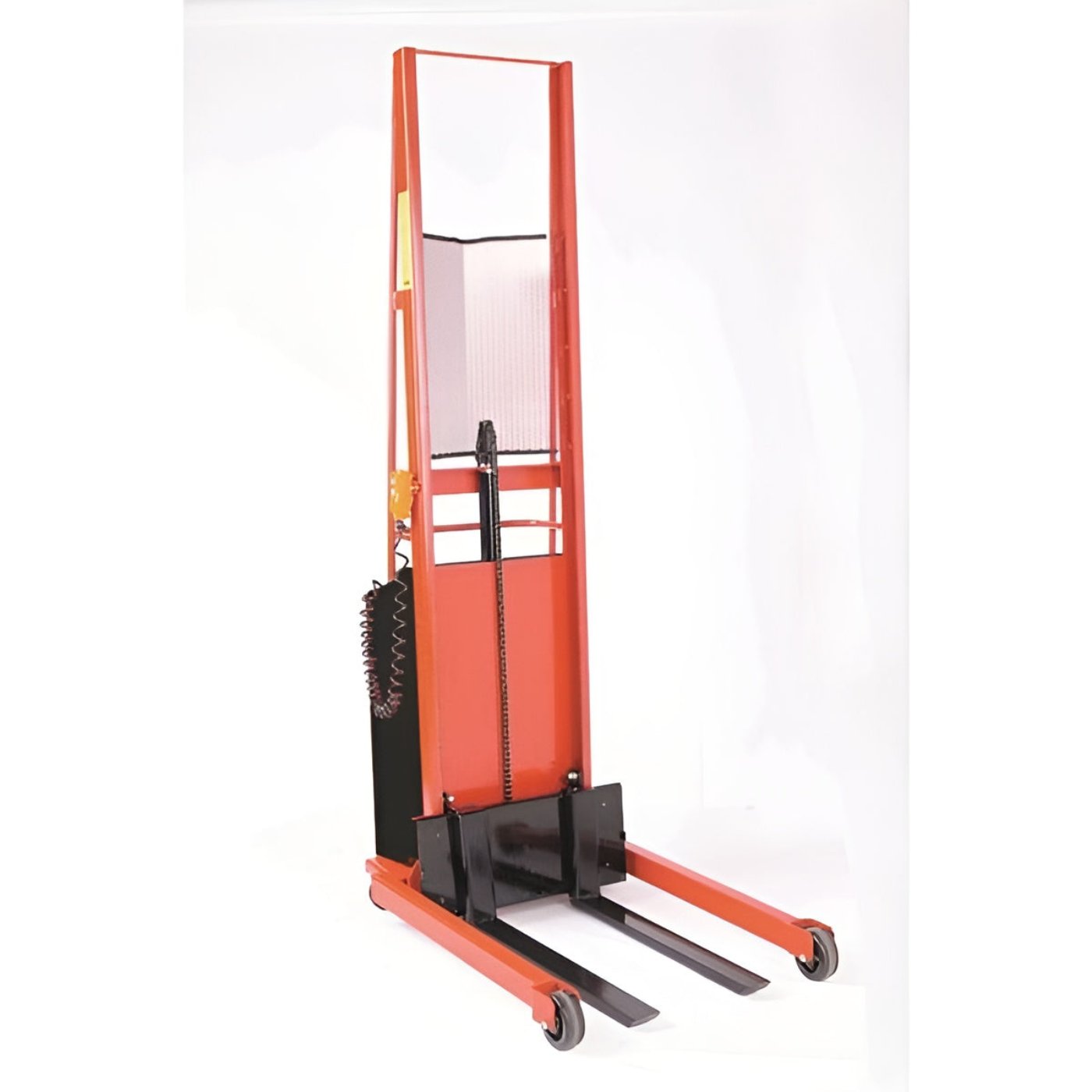

Wesco 3" X 25" FORK FIXED BASE POWERED STACKER - 261028
Features
- 1-year warranty.
- Proven quality: Wesco® manufactured Hydraulic Cylinder.
- Battery and charger included.
- Forks lower to floor on all models.
- 5" Phenolic wheels on front, 4" swivel on rear
- 110V AC models available.(Special order, NO cancellations or returns.)
- Meets ANSI B56.10 specifications.
- Power Drive option available.
Videos
Specifications
| PART NUMBER | 261028 |
|---|---|
| MODEL | PESFL-56-25 |
| TYPE | Fork Models |
| FRONT WHEEL | (2) 5" Phenolic |
| REAR SWIVEL CASTER | (2) 4" Phenolic |
| LIFT HEIGHT | 56" |
| CAPACITY | 1000 lb |
| WIDTH FORKS | 3" |
| LENGTH FORKS | 25" |
| LOAD CENTER | 15" |
| BASE LEG (ID/OD) | 15"/21" |
| OVERALL WIDTH | 25.5" |
| OVERALL HEIGHT | 72" |
| OVERALL DEPTH | 44.5" |
| WEIGHT | 452 lb |
Drawing
What Our Experts Think
- Compact and Reliable: Supports up to 1,000 lbs, perfect for light to medium-duty applications.
- Ideal Fork Length: 25" forks easily accommodate standard pallets and materials.
- Efficient Lift Range: 56" lift height is great for stacking and transporting at moderate heights.
- Sturdy Design: Built to provide stable and safe lifting for everyday industrial tasks.
- Easy to Maneuver: User-friendly and ideal for smaller spaces with its compact frame.
Q&A
Q: What is the weight capacity of this fork stacker?
A: The Wesco 261028 can lift up to 1,000 lbs.
Q: What is the maximum lift height?
A: This stacker offers a lift height of up to 56 inches.
Q: What are the fork dimensions?
A: The forks measure 25 inches in length.
Q: Is this stacker electric-powered?
A: Yes, it features a power lift mechanism for easy lifting.
Q: What are the main applications for this stacker?
A: Ideal for lifting light-to-medium loads, pallets, and material handling in warehouses.
Q: Is it easy to maneuver?
A: Yes, designed for smooth movement and precise control.
Q: Does it require assembly?
A: Minimal assembly may be required, with simple instructions included.
Q: Is it durable?
A: Yes, built with durable materials for long-lasting performance.
Maintenance Tips
- Inspect Regularly: Check forks, base legs, and hydraulic system for wear or damage each month.
- Lubricate Moving Parts: Grease rollers, hinges, and chains every 3 months.
- Battery Care: Fully charge before use; inspect for corrosion or damage on cables.
- Clean Equipment: Wipe down forks, frame, and base legs after each use to prevent debris buildup.
- Check Fasteners: Tighten bolts, screws, and hardware periodically for secure operation.
- Test Safety Features: Ensure lift, lowering, and brake controls function properly.
- Adhere to Load Limits: Do not exceed the 1,000 lb. load capacity or 56" lift height.
