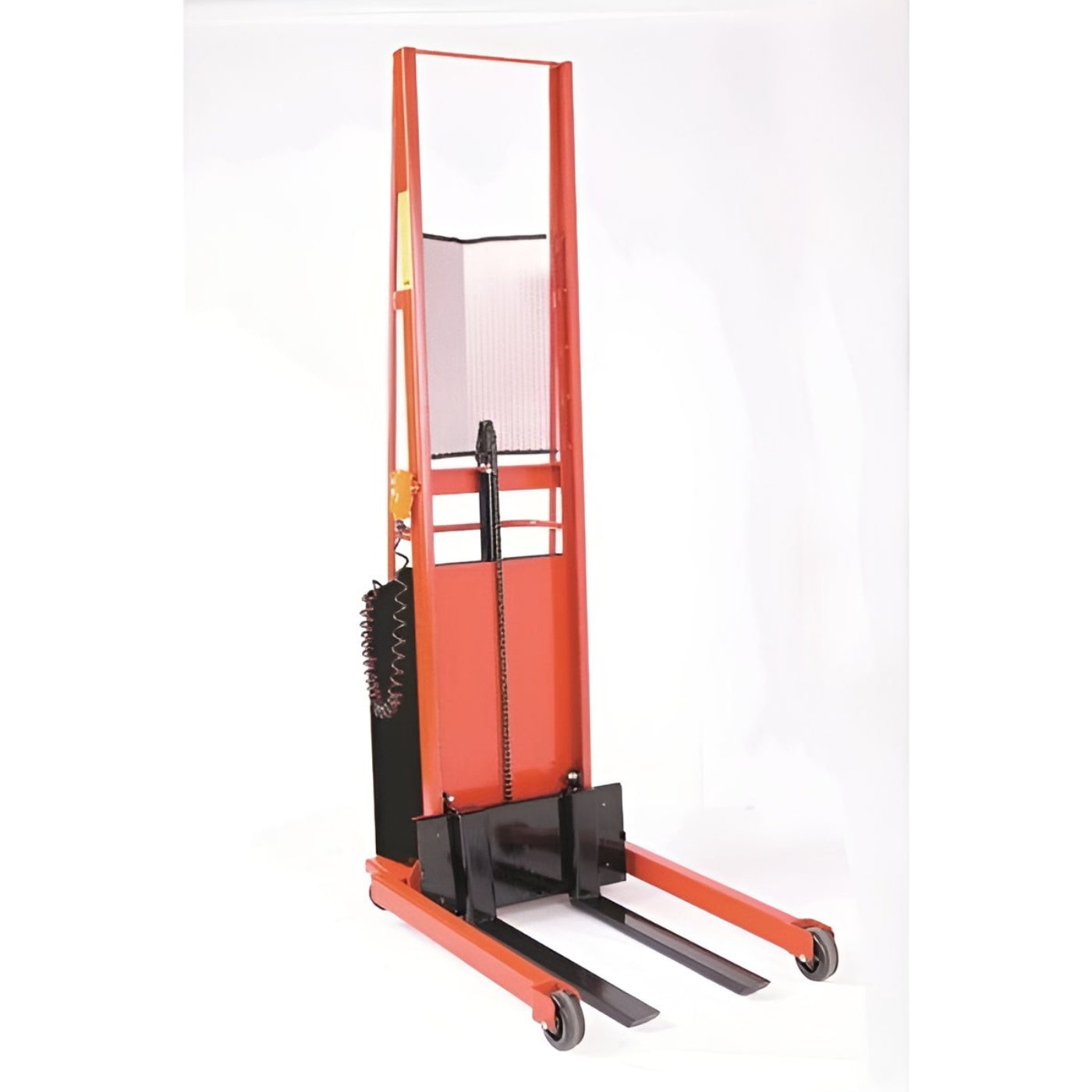

Wesco 3" X 25" FORK FIXED BASE POWERED STACKER - 261029
Features
- 1-year warranty.
- Proven quality: Wesco® manufactured Hydraulic Cylinder.
- Battery and charger included.
- Forks lower to floor on all models.
- 5" Phenolic wheels on front, 4" swivel on rear
- 110V AC models available.(Special order, NO cancellations or returns.)
- To order add AC to the end of the battery powered stacker part #.
Example:
Battery Powered #261029
110V AC Powered #261029AC - Meets ANSI B56.10 specifications.
- Power Drive option available.
Videos
Specifications
| PART NUMBER | 261029 |
|---|---|
| MODEL | PESFL-64-25 |
| TYPE | Fork Models |
| FRONT WHEEL | (2) 5" Phenolic |
| REAR SWIVEL CASTER | (2) 4" Phenolic |
| LIFT HEIGHT | 64" |
| CAPACITY | 1000 lb |
| WIDTH FORKS | 3" |
| LENGTH FORKS | 25" |
| LOAD CENTER | 15" |
| BASE LEG (ID/OD) | 15"/21" |
| OVERALL WIDTH | 25.5" |
| OVERALL HEIGHT | 80" |
| OVERALL DEPTH | 44.5" |
| WEIGHT | 460 lb |
Drawing
What Our Experts Think
- Light-Duty Capacity: Supports up to 1,000 lbs, ideal for lighter material handling and storage tasks.
- Versatile Forks: 25" forks accommodate standard pallets and a range of materials.
- Extended Lift Height: 64" lift height offers more vertical reach for stacking and organizing.
- Stable Performance: Designed for stability and safe lifting in various industrial environments.
- Compact Design: Easy to maneuver and fit into tight spaces, making it perfect for smaller operations.
Q&A
Q: What is the weight capacity of this fork stacker?
A: The Wesco 261029 can lift up to 1,000 lbs.
Q: What is the maximum lift height?
A: This stacker offers a lift height of up to 64 inches.
Q: What are the fork dimensions?
A: The forks are 25 inches in length.
Q: Is this stacker electric-powered?
A: Yes, it features a power lift mechanism for effortless lifting.
Q: What are the primary applications for this stacker?
A: Perfect for lifting light-to-medium loads, pallets, and material handling in warehouses.
Q: Is it easy to maneuver?
A: Yes, it’s designed for smooth operation and precise movement.
Q: Does it require assembly?
A: Minimal assembly may be required, with easy-to-follow instructions provided.
Q: Is it durable?
A: Yes, it is built with heavy-duty materials for long-term reliability.
Maintenance Tips
- Routine Inspections: Check forks, base legs, and hydraulic system for any signs of damage or wear monthly.
- Lubricate Moving Parts: Grease chains, rollers, and hinges every 3 months for smooth operation.
- Battery Maintenance: Charge fully before use and inspect cables for wear or corrosion.
- Clean After Use: Wipe down the forks, frame, and base legs to prevent dirt and rust buildup.
- Tighten Fasteners: Periodically check and secure bolts, screws, and fasteners for stability.
- Test Functionality: Ensure lift, lowering, and braking systems operate properly.
- Respect Load Limits: Do not exceed the 1,000 lb. load capacity or 64" lift height for safety.
