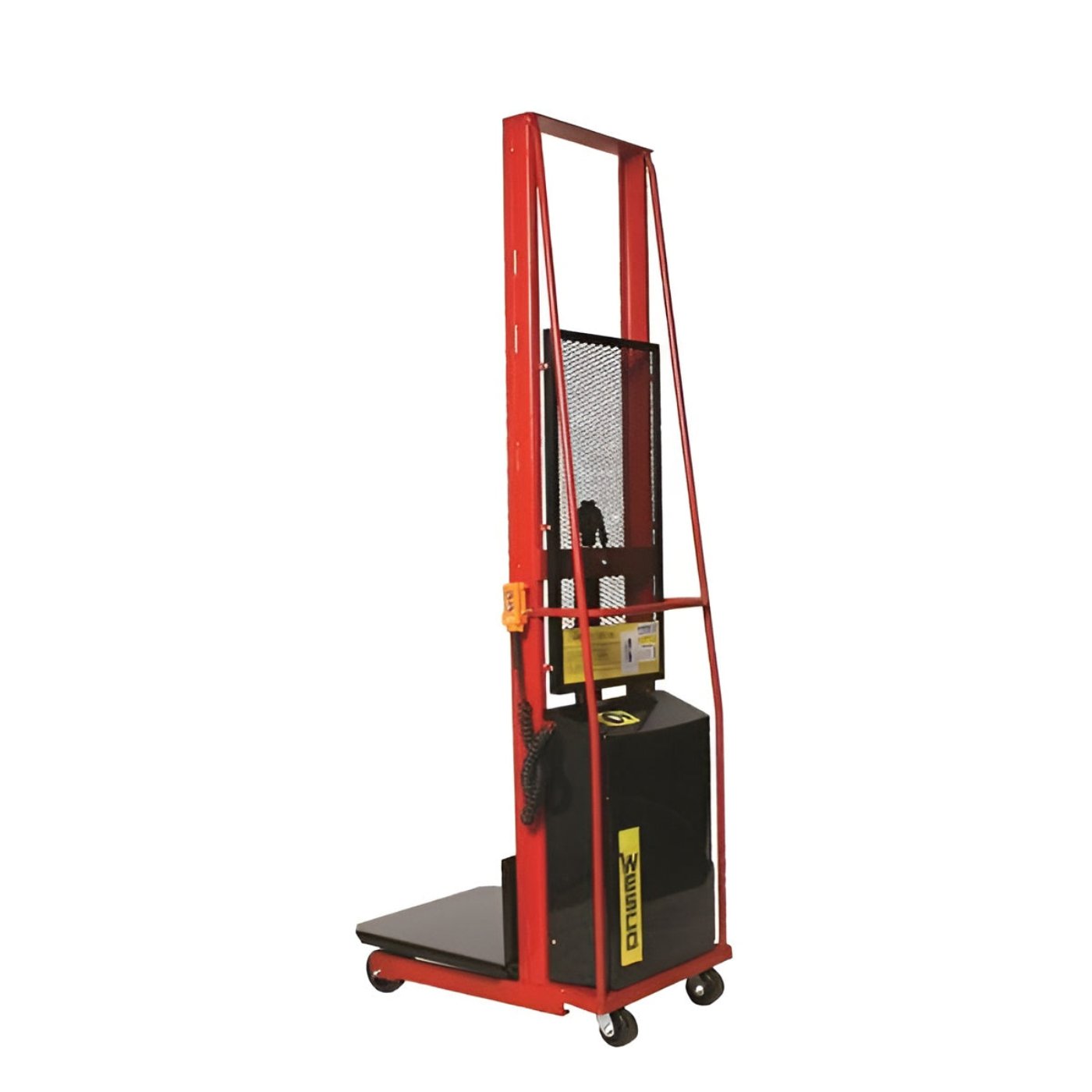

Wesco 32" X 30" PLATFORM FIXED BASE POWERED STACKER - 261025
Features
- 1-year warranty.
- Proven quality: Wesco® manufactured Hydraulic Cylinder.
- Battery and charger included.
- 110V AC models available.(Special order, NO cancellations or returns.)
- To order add AC to the end of the battery powered stacker part #.
Example:
Battery Powered #261025
110V AC Powered #261025AC - Meets ANSI B56.10 specifications.
- Power Drive option available.
Videos
Specifications
| PART NUMBER | 261025 |
|---|---|
| MODEL | PESPL-60-3032 |
| TYPE | 32" x 30" Platform Models |
| FRONT WHEEL | (2) 5" Phenolic |
| REAR SWIVEL CASTER | (2) 4" Phenolic |
| LIFT HEIGHT | 60" |
| CAPACITY | 1000 lb |
| PLATFORM WIDTH | 32" |
| PLATFORM LENGTH | 30" |
| LOAD CENTER | 18" |
| LOWERED HEIGHT | 5.75" |
| BASE LEG (ID/OD) | 25.5"/32" |
| OVERALL WIDTH | 32" |
| OVERALL HEIGHT | 72" |
| OVERALL DEPTH | 43.5" |
| WEIGHT | 404 lb |
Drawing
What Our Experts Think
- Reliable Capacity: Supports up to 1,000 lbs, ideal for light to medium-duty material handling tasks.
- Spacious Platform: The 32" x 30" platform offers ample space for a variety of materials, ensuring stable and secure handling.
- Efficient Lift Height: 60" lift height allows for convenient stacking and retrieval at mid-level heights.
- Power Lift System: Features an electric-powered lift for smooth, controlled operation with minimal effort.
- Durable Design: Built to last in industrial environments, offering long-term reliability and safety.
Q&A
Q: What is the weight capacity of this platform stacker?
A: The Wesco 261025 can lift up to 1,000 lbs.
Q: What is the maximum lift height?
A: This stacker provides a lift height of up to 60 inches.
Q: What are the platform dimensions?
A: The platform measures 32 inches by 30 inches.
Q: Is this stacker electric-powered?
A: Yes, it features a power lift mechanism for smooth and efficient operation.
Q: What are the primary applications for this stacker?
A: Ideal for lifting and moving materials, pallets, and equipment in warehouses and industrial environments.
Q: Is it easy to maneuver?
A: Yes, designed for smooth mobility and precise control.
Q: Does it require assembly?
A: Minimal assembly may be required, with clear instructions provided.
Q: Is it durable?
A: Yes, built with heavy-duty materials for long-lasting performance and reliability.
Maintenance Tips
- Inspect Regularly: Check the platform, lift mechanism, and hydraulic system for any damage or wear monthly.
- Lubricate Moving Parts: Grease rollers, chains, and hinges every 3 months to ensure smooth and efficient operation.
- Hydraulic Fluid Check: Monitor hydraulic fluid levels and check for leaks in the system.
- Battery Maintenance: Fully charge before use and inspect cables for corrosion or damage.
- Clean Equipment: Wipe down the platform, frame, and wheels after each use to prevent dirt buildup and corrosion.
- Tighten Fasteners: Periodically check bolts, screws, and fasteners to ensure everything is securely fastened.
- Test Functionality: Ensure the lift, lowering, and braking systems are functioning correctly.
- Respect Load Limits: Do not exceed the 1,000 lb. capacity or 60" lift height for optimal safety and performance.
