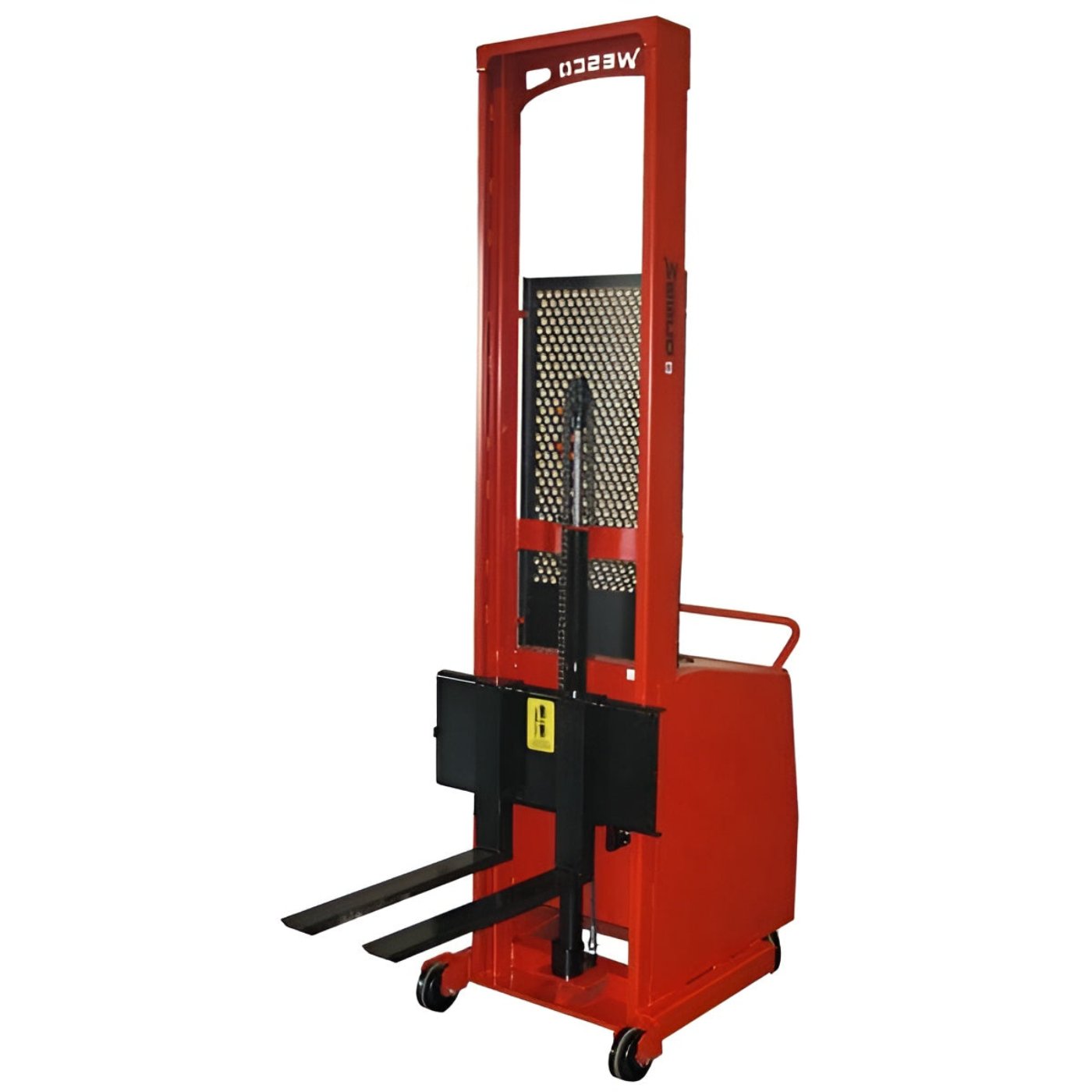

Wesco 56" LIFT HEIGHT COUNTER-BALANCE POWERED STACKER 261037
Features
- Meets ANSI B56.10 specifications.
- 1-year warranty.
- Proven quality: Wesco® manufactured Hydraulic Cylinder.
- 1,000 lb.maximum lift capacity.
- Remote control, floor lock, and safety screen are standard on all models.
- With a minimally charged battery, unit can be used while recharging.
- Easy to read illuminated battery status voltmeter – no extra cost!
- 12V DC battery
- Battery and charger included.
- Applications include:
- Loading and unloading trucks.
- Positioning dies.
- Feeding material to presses. - 25" long forks standard.
- 30" long fork models available, 850 lb. max. capacity.
- Order enough weight kits for your planned load.
- AC models not available.
- Power lift manual drive standard, optional power drive available.
Note: Counter-Balance Stackers require appropriate counter-weights. (see counter weight graph)
Videos
Specifications
| PART NUMBER | 261037 |
|---|---|
| MODEL | PCBFL-56-25 |
| LIFT HEIGHT | 56" |
| CAPACITY | 1000 lb |
| WHEEL | (2) 5" Polyolefin |
| WHEEL REAR SWIVEL CASTERS | (2) 5" Polyolefin Wheel |
| WIDTH FORKS | 3" |
| LENGTH FORKS | 25" |
| LOAD CENTER | 13" |
| OVERALL WIDTH | 26.5" |
| OVERALL HEIGHT | 72" |
| OVERALL DEPTH | 59.5" |
| WEIGHT | 560 lb. Without Counter Weights |
| COUNTER-BALANCE WEIGHTS |
 Counterweight Graph |
