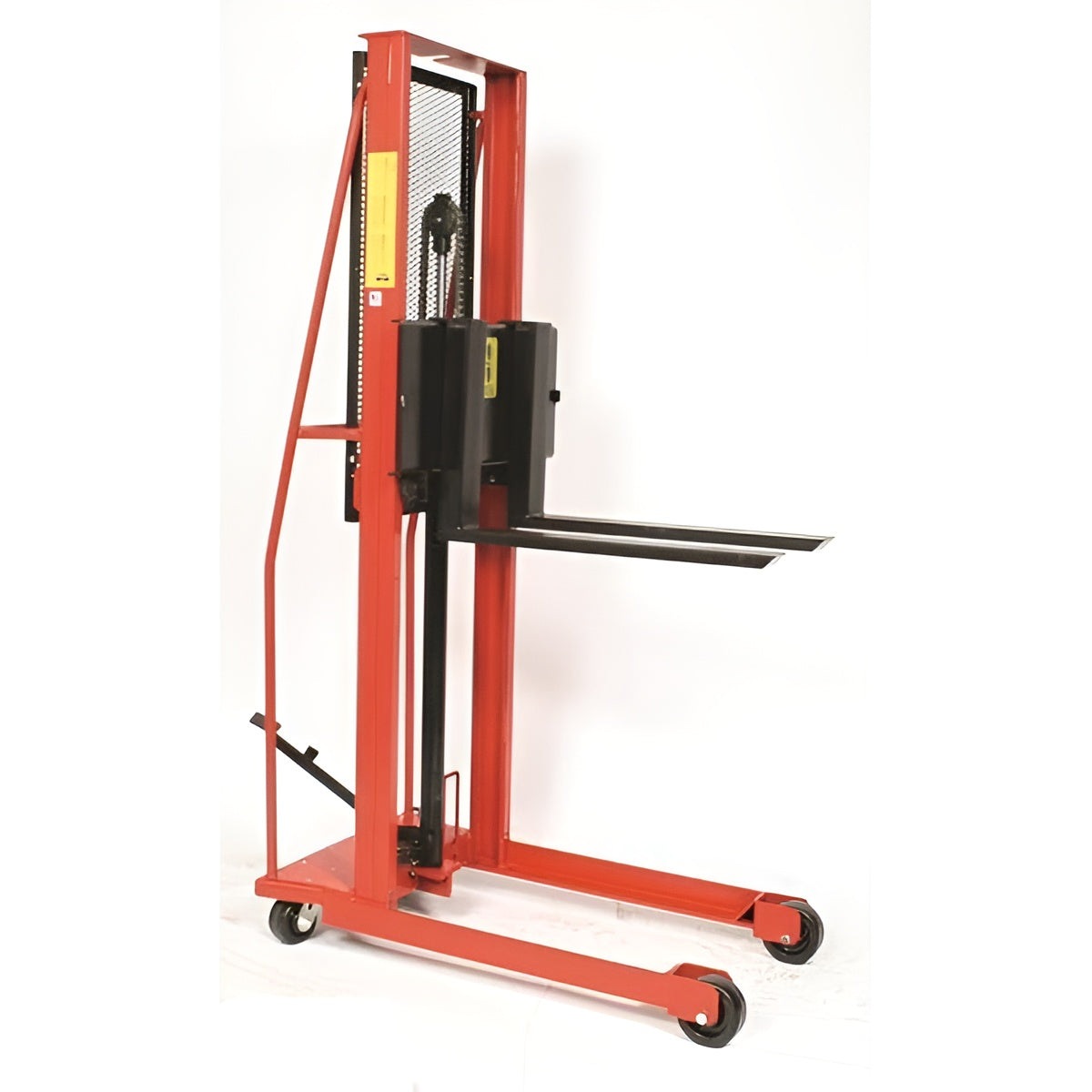

Wesco STRADDLE FORK STACKER MODEL- 260053
Features
- 1-year warranty.
- 1" thick x 3" wide x 30" long forks.
- Adjustable span up to 25".
- 18" load center.
- 32" overall width; 44" depth.
- Base leg span - 25.5" inside, 32" outside.
- Forks lower to ground.
- Wesco® manufactured hydraulic Stacker Jack, over 35 year of proven quality.
Specifications
| PART NUMBER | 260053 |
|---|---|
| MODEL | ESFL-56-30S |
| CAPACITY | 1000 lb |
| TYPE | Economy |
| LIFT HEIGHT | 56" |
| WIDTH FORKS | 3" |
| LENGTH FORKS | 30" |
| THICKNESS FORKS | 1" |
| LOAD CENTER | 18" |
| INSIDE BASE LEG | 25.5" |
| OUTSIDE BASE LEG | 32" |
| ADJUSTABLE FORK SPAN | up to 25" |
| OVERALL WIDTH | 32.5" |
| OVERALL HEIGHT | 72" |
| OVERALL DEPTH | 48" |
| WEIGHT | 281 lb |
Drawing
What Our Experts Think
- Strong Capacity: The Wesco 1,000 lb. Economy Series Straddle Fork Stacker offers reliable lifting support for up to 1,000 lbs., perfect for lighter-duty material handling tasks.
- 56" Lift Height: With a lift height of 56", it is ideal for reaching and handling pallets at mid-to-high shelf levels, maximizing storage efficiency.
- Straddle Fork Design: The straddle fork configuration ensures excellent stability when handling pallets, enhancing safety during transport.
- Cost-Effective Performance: A more economical option for businesses that require reliable lifting solutions without compromising on quality.
- Simple Manual Operation: The manual hydraulic pump provides smooth and easy lifting, minimizing physical effort for operators.
- Durable and Reliable: Built to last with sturdy construction, this stacker performs well in environments requiring frequent, efficient use.
Q&A
Q: What is the maximum load capacity?
A: 1,000 lbs.
Q: What is the size of the forks?
A: The forks measure 30" in length.
Q: What is the maximum lift height?
A: The maximum lift height is 56".
Q: How is this fork stacker operated?
A: It uses a manual hydraulic pump for lifting and lowering loads.
Q: Is this fork stacker easy to move?
A: Yes, it is equipped with durable wheels for easy maneuvering in tight spaces.
Q: What industries is this fork stacker suitable for?
A: Ideal for warehouses, light manufacturing, and retail environments.
Q: Does it include safety features?
A: Yes, it has a stable base and secure hydraulic system for safe and controlled lifting.
Q: How can I purchase or get more details?
A: Visit our website or contact our sales team for additional information.
Maintenance Tips
- Inspect Hydraulic System: Regularly check for any leaks or damage in the hydraulic pump, cylinder, and hoses. Ensure the fluid levels are correct.
- Lubricate Moving Parts: Grease the lift mechanism, pivot points, and casters to ensure smooth and efficient operation.
- Check Forks and Frame: Inspect the forks and frame for any damage or wear. Ensure that the forks are aligned and securely attached.
- Examine Wheels and Casters: Inspect the wheels for wear or damage. Ensure that they rotate smoothly and are aligned properly for stable operation.
- Test Lifting Mechanism: Regularly test the lift and lower functions to ensure smooth movement and proper load handling.
- Tighten Fasteners: Check and tighten all bolts, nuts, and screws to ensure that all components are secure.
- Clean Regularly: Clean the stacker to remove dirt, dust, and grease buildup, especially around the hydraulic system and moving parts.
- Proper Storage: Store the stacker in a dry, indoor area to prevent rust and ensure long-lasting performance.
