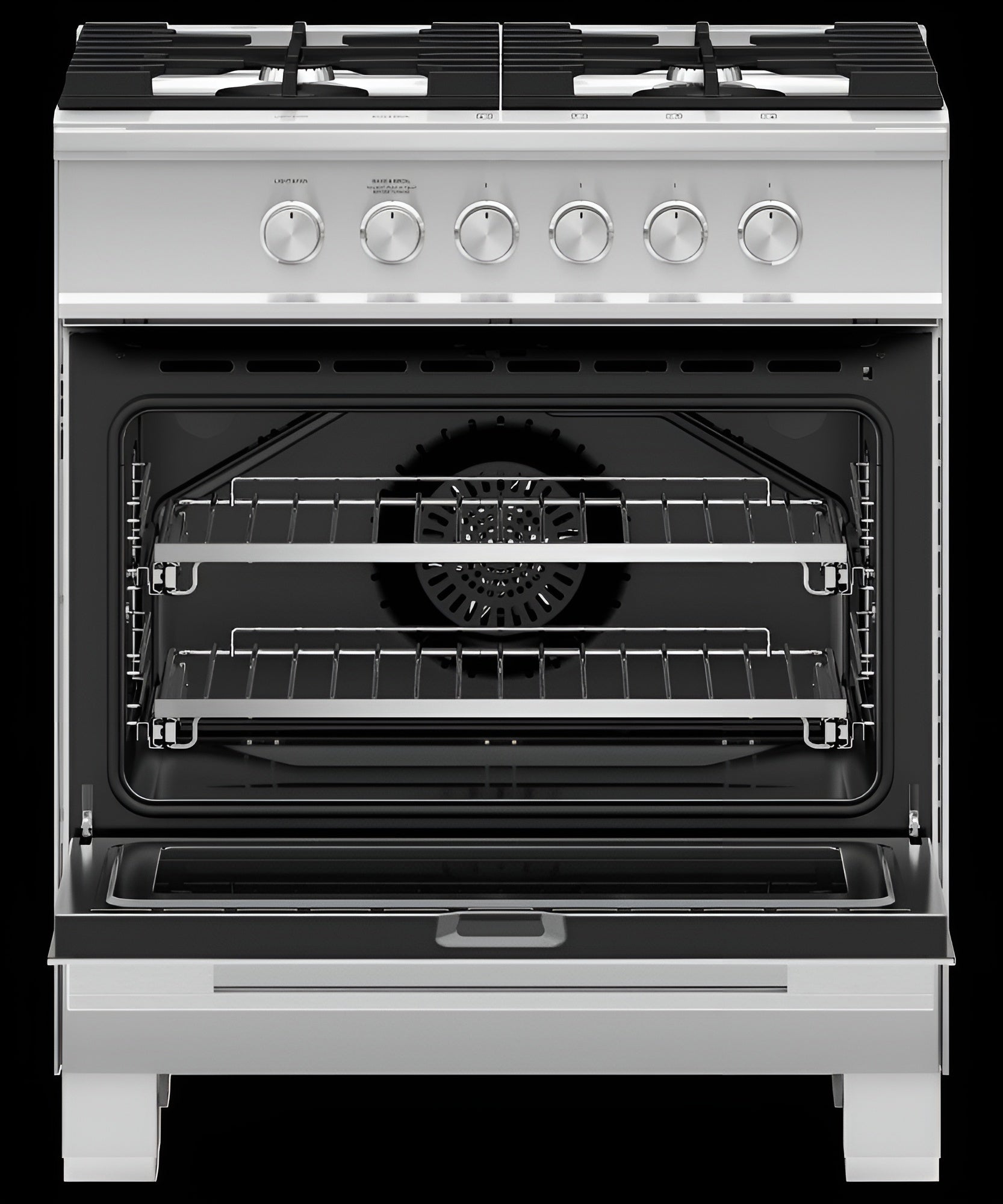

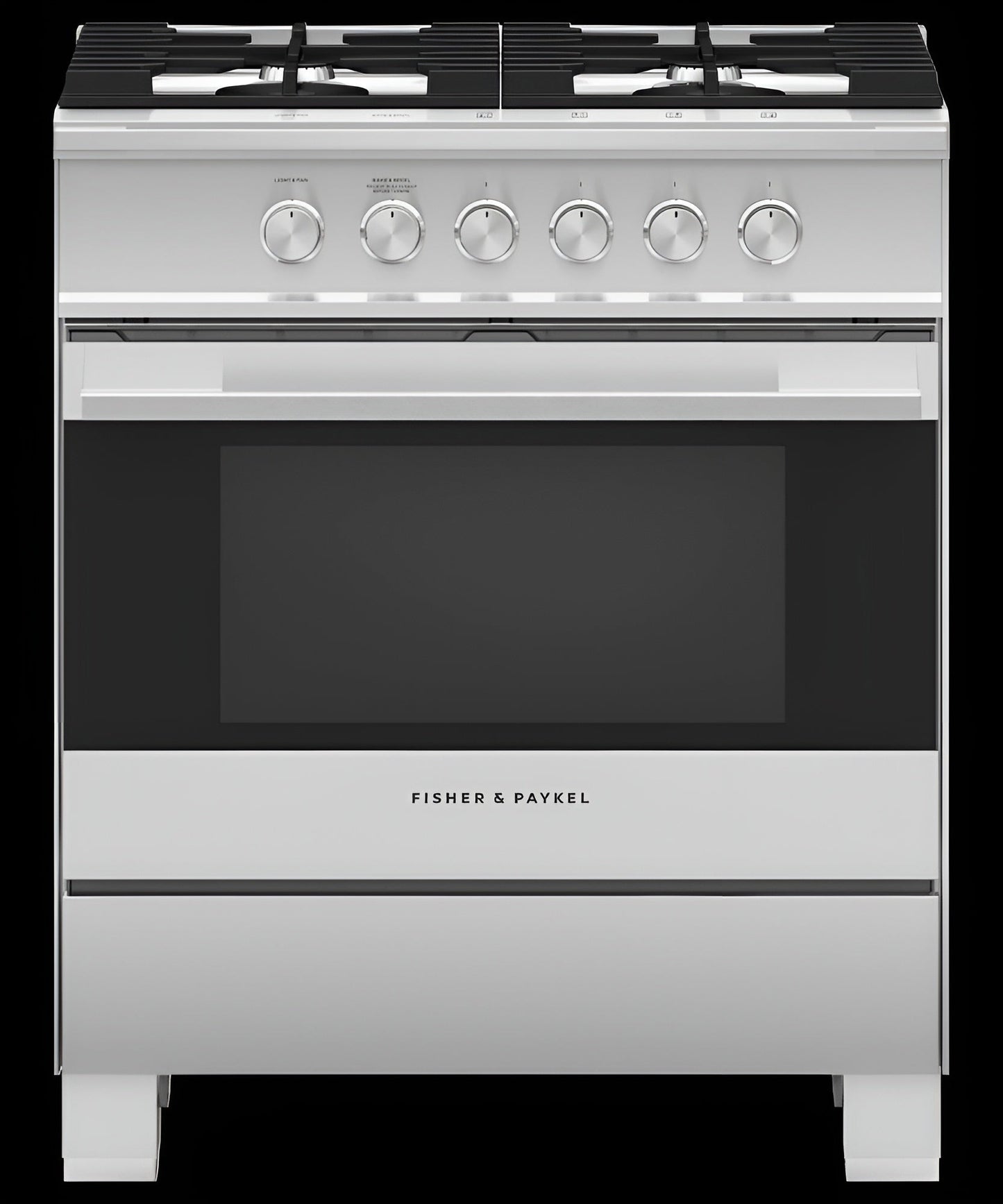

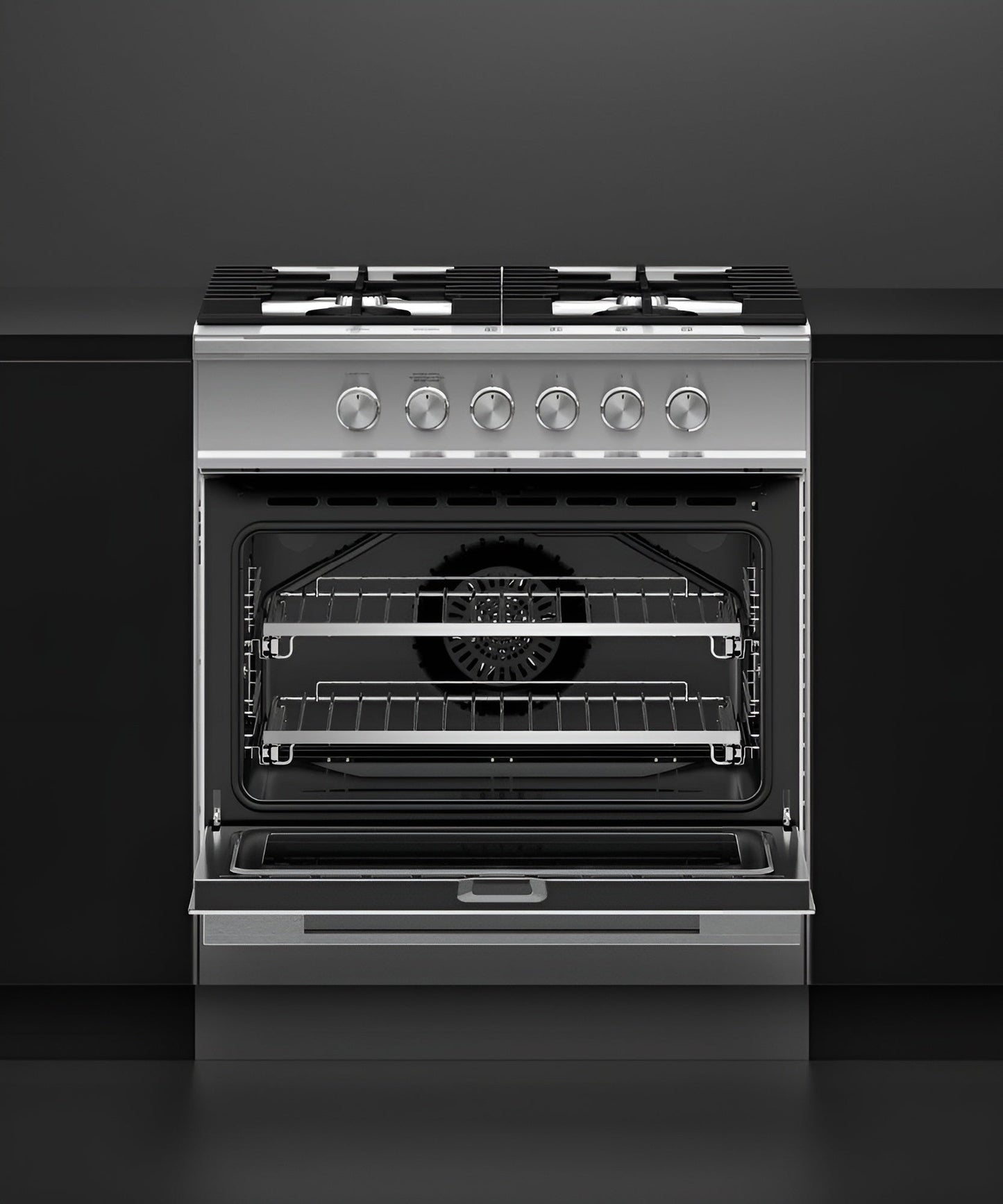

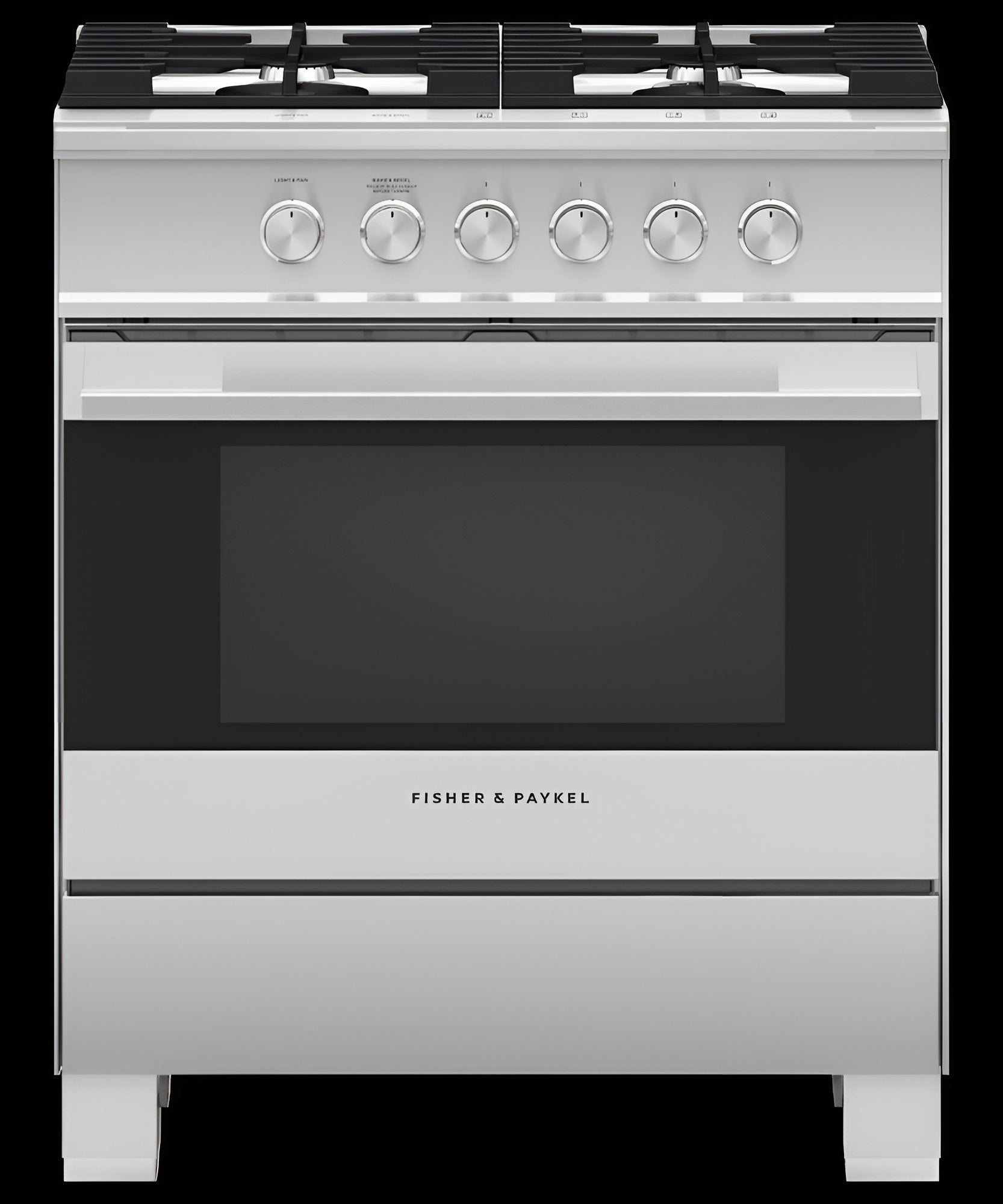

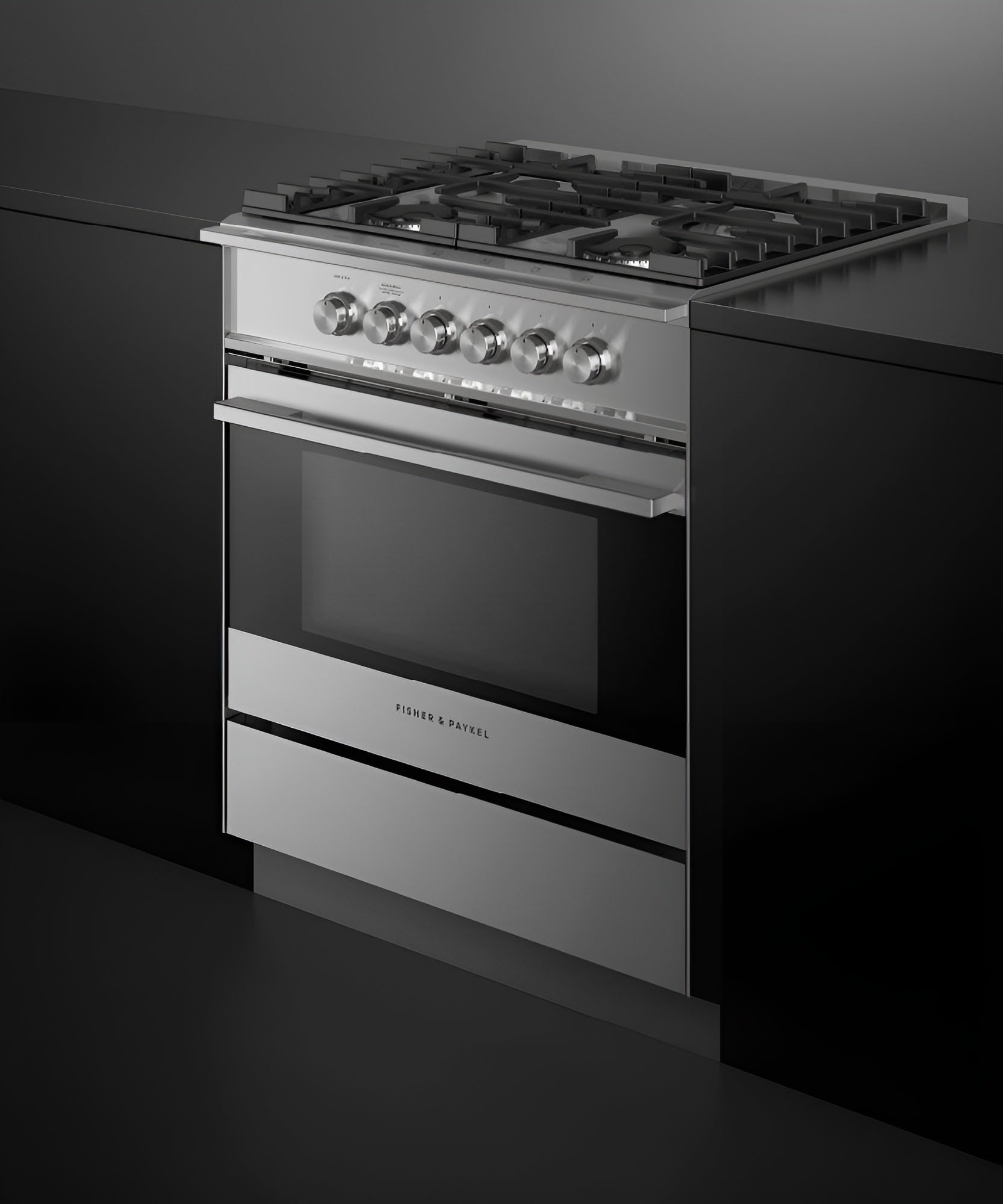

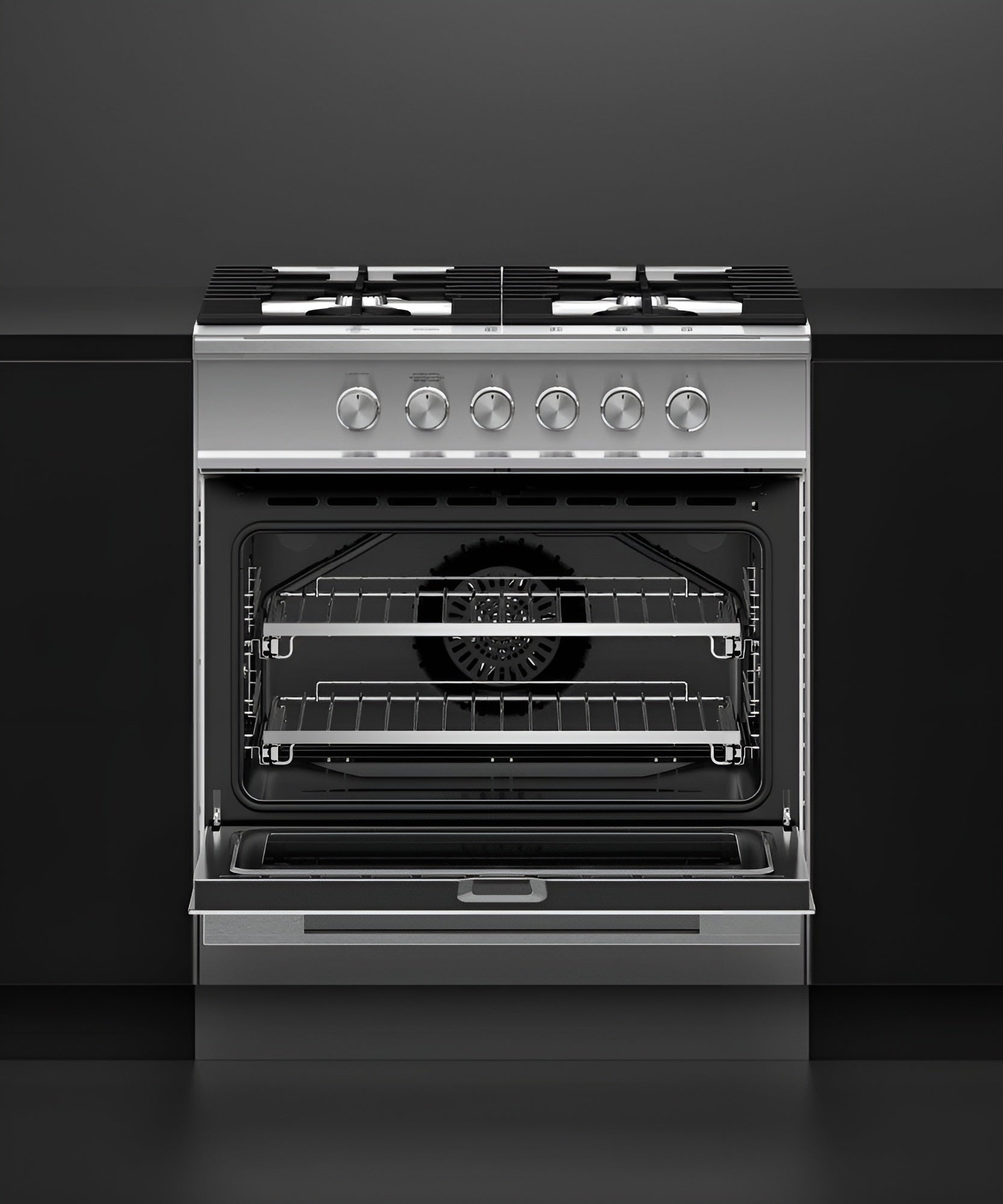

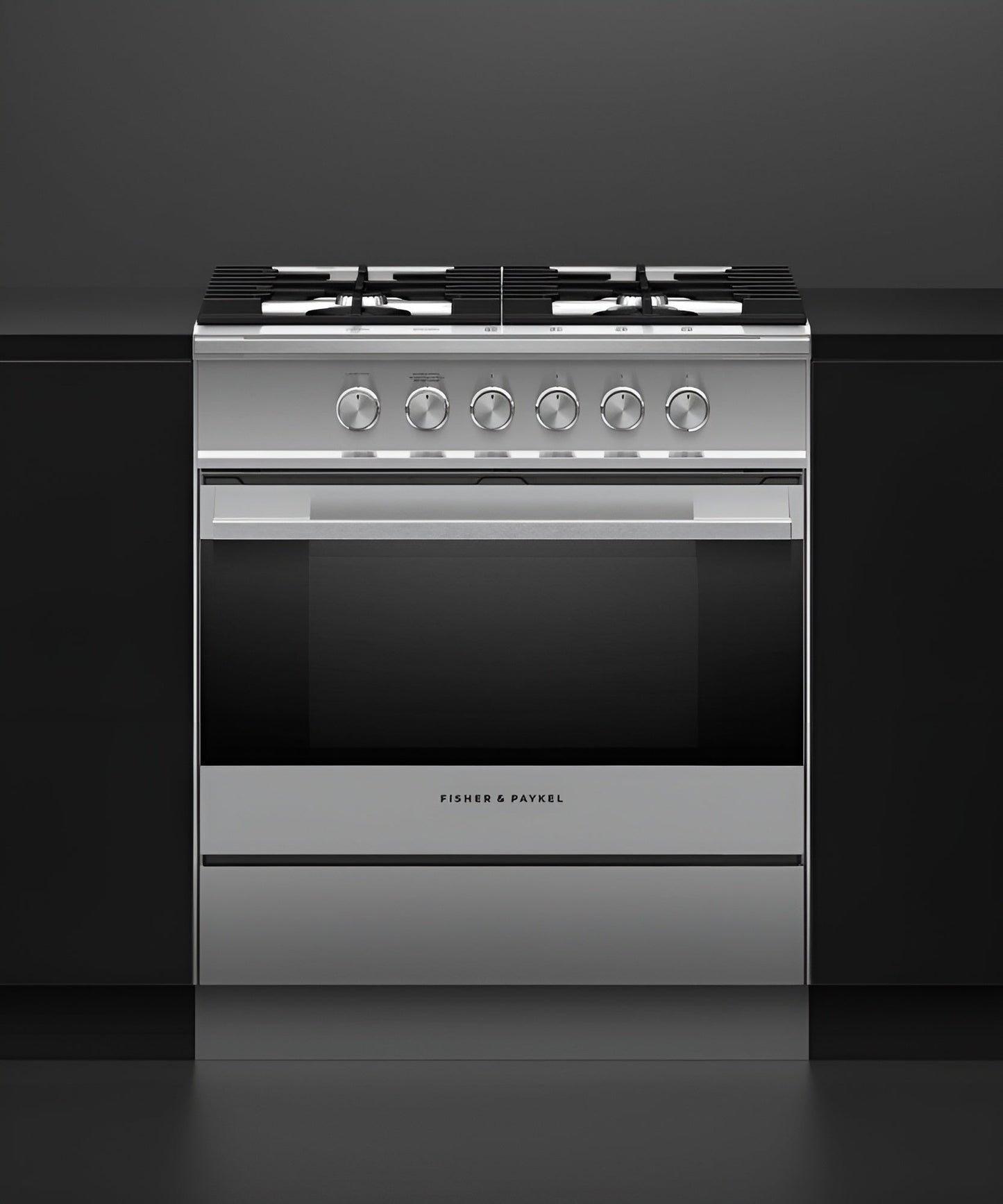

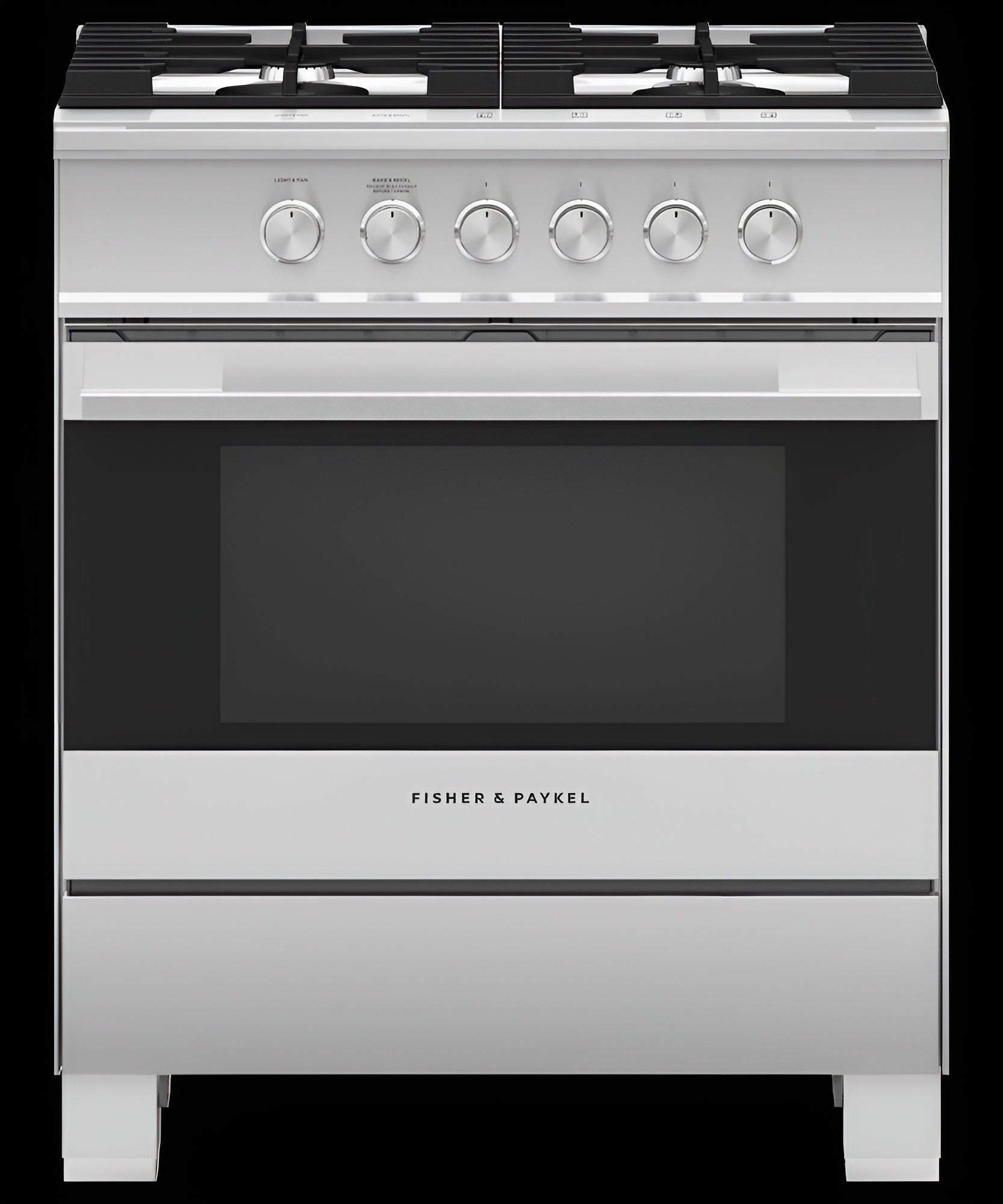

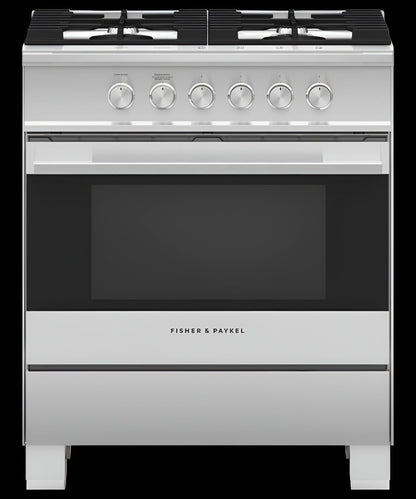

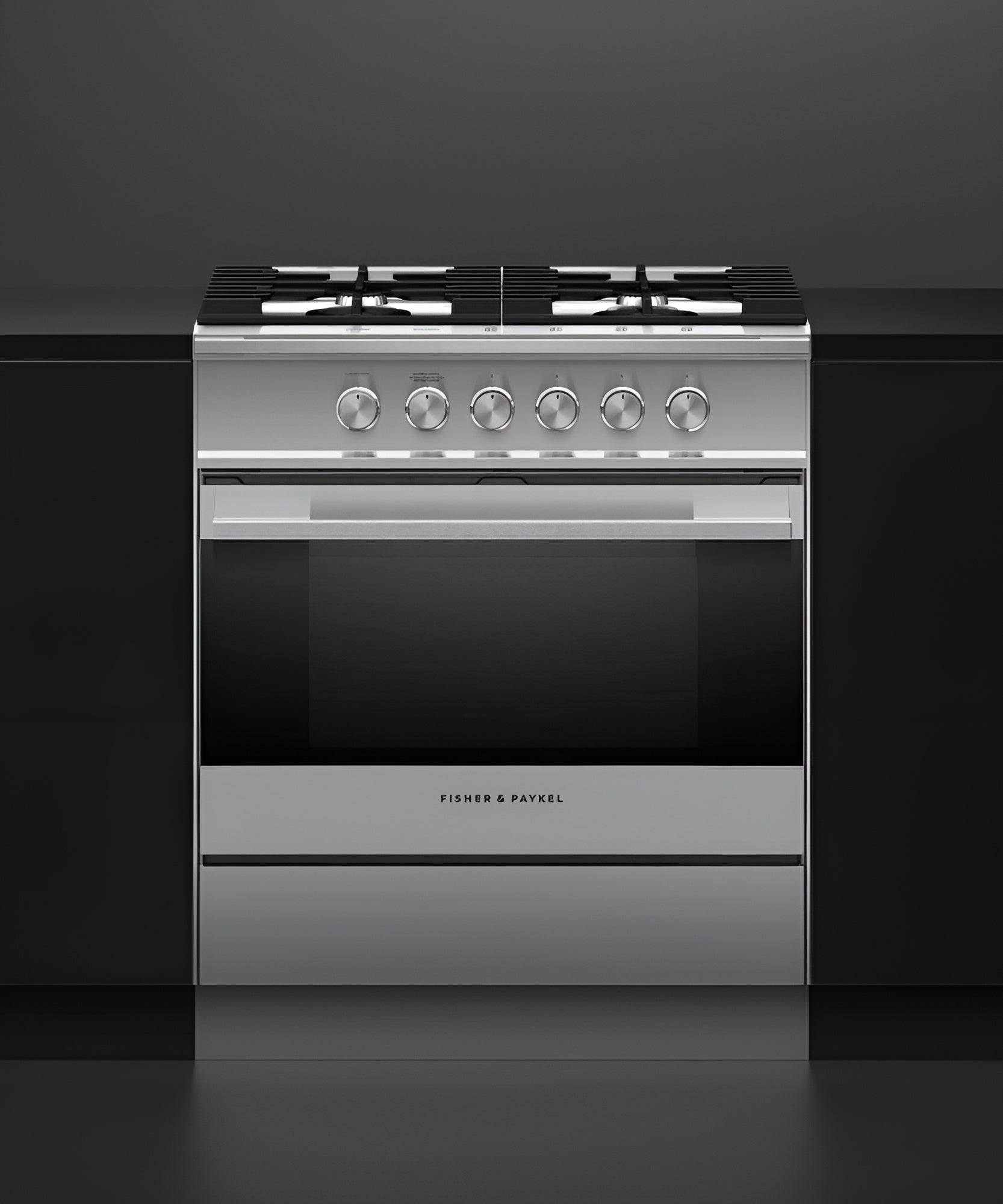

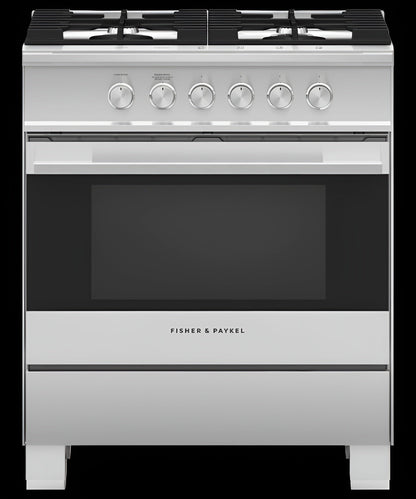

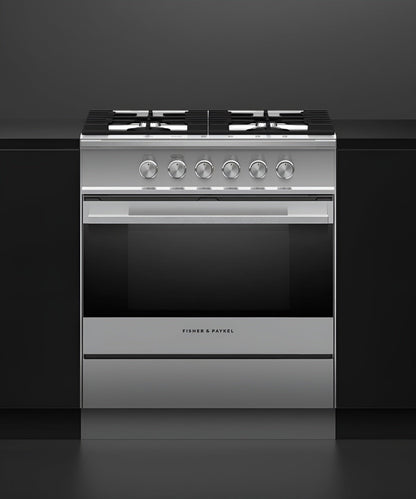

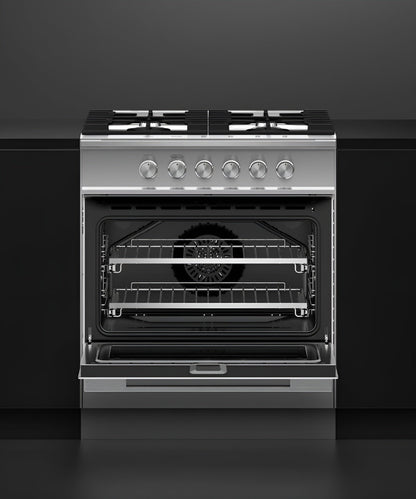

FISHER & PAYKEL OR30SDG4X1 Gas Range, 30" - OR30SDG4X1-KT
Add contemporary style to your kitchen, and enjoy the instant response and precision of a gas-fueled oven and cooktop.(BR)Finish Stainless Steel
Features

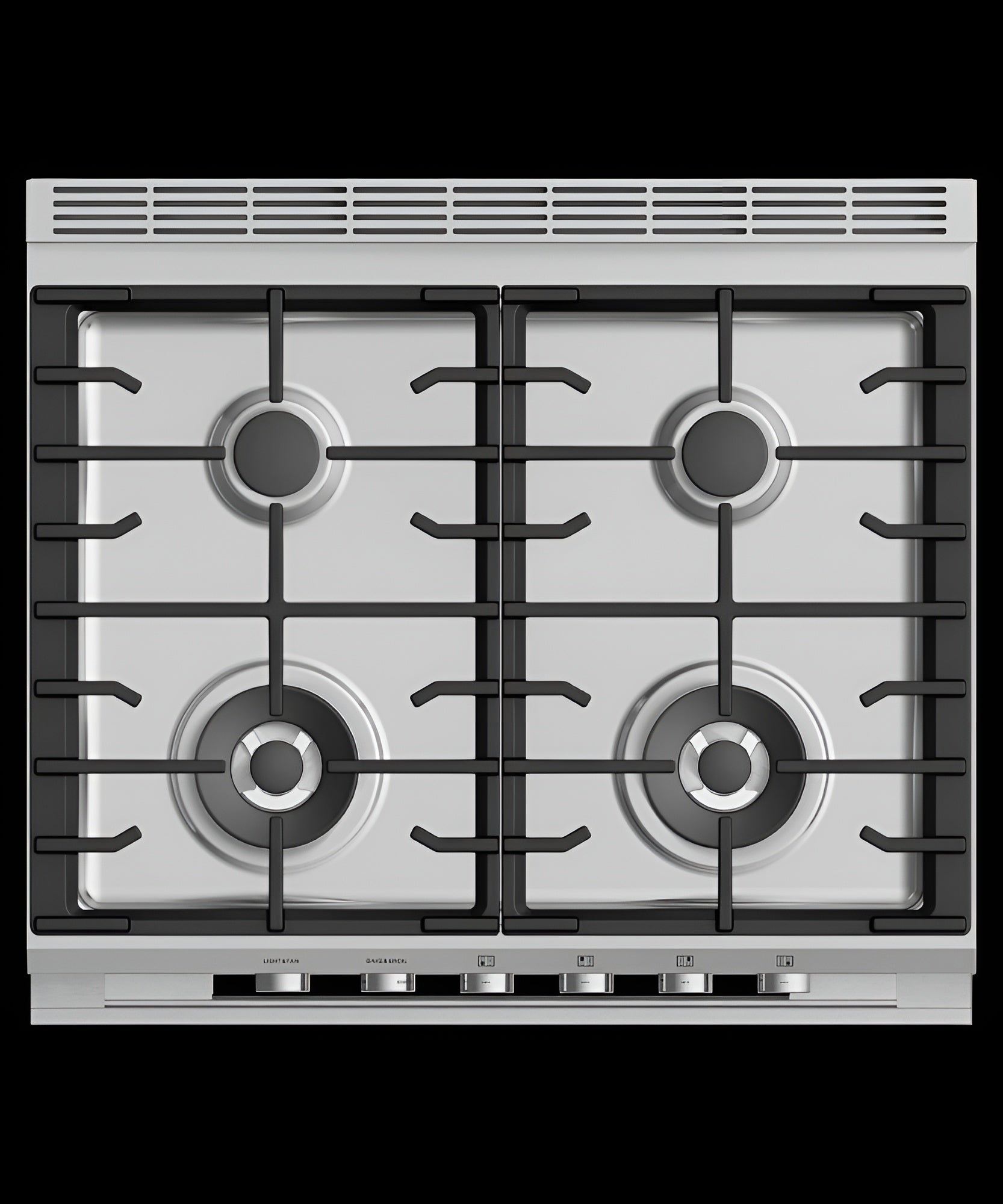

- Four burner gas cooktop, with two dual ring wok burners
- Gas oven with 3.5 cu ft total capacity
- Three oven functions: Bake, Convection Bake and Maxi Broil
Specifications
| Accessories |
| Chromed shelf runners |
1 set |
| Full extension telescopic shelves |
2 sets (part 578776) |
| Small pot support |
1 (part 533981 cast) |
| Accessories (sold separately) |
| Kick strip, stainless steel (optional) |
KICKOR30X1 |
| Burner ratings |
| Dual wok burner inner/outer (LPG) |
1000 - 18000BTU |
| Dual wok burner inner/outer (natural gas) |
1000 - 18000BTU |
| Maximum burner power |
18000 BTU |
| Semi-rapid burner (LPG) |
1500 - 7600BTU |
| Semi-rapid burner (natural gas) |
1500 - 8000BTU |
| Total cooktop power |
52000 BTU |
| Capacity |
| Shelf positions |
7 |
| Total capacity |
3.5cu ft |
| Usable capacity |
2.7cu ft |
| Cleaning |
| Controls |
| Gas Requirements |
| Supply Pressure (LPG) |
11 " W.C.P |
| Supply Pressure (natural gas) |
4 " W.C.P |
| Oven features |
| Internal light |
2 x 25W halogen (rear) |
| Oven functions |
| Number of functions |
3 |
| Oven performance |
| Bake power |
14000 BTU |
| Broil |
11000 BTU |
| CoolTouch door |
Triple glazed |
| Power requirements |
| Amperage |
15A |
| Supply frequency |
60Hz |
| Supply voltage |
120V |
| Product dimensions |
| Depth |
25 1 / 4 " |
| Height |
35 3 / 4 - 37 5 / 8 " |
| Width |
29 7 / 8 " |
| Rangetop features |
| Rangetop Performance |
| Number of burners |
4 |
| Safety |
| Spill containment |
1 / 2 gallon |
Manual
What our Expect Think
-
30" Freestanding Design – A compact yet powerful range suitable for various kitchen layouts.
-
Powerful Gas Burners – High-performance burners provide precise temperature control for simmering, boiling, and searing.
-
Spacious Oven Capacity – Large oven space allows for multi-rack cooking and accommodates large dishes.
-
True Convection Cooking – Ensures even heat distribution for consistent baking and roasting results.
-
Easy-to-Use Controls – Ergonomic dial controls for seamless operation.
-
Continuous Cast-Iron Grates – Durable and sturdy for easy pan movement.
-
Automatic Ignition – Quick and reliable burner ignition with built-in safety features.
-
Sleek Stainless Steel Finish – A modern and stylish design that complements any kitchen aesthetic.
-
LP Conversion Kit Included – Flexible installation for natural gas or propane use.
-
Interior Oven Light – Provides clear visibility of food while cooking.
Q&A
Q: What type of oven does this range have?
A: It includes a 3.5 cu. ft. convection oven, ensuring even heat distribution for baking and roasting.
Q: Are the burners powerful?
A: Yes, the range has high-powered burners for searing and boiling, along with precise simmer control for delicate cooking.
Q: Is the cooktop easy to clean?
A: Absolutely! The sealed burners and durable cast-iron grates make cleaning simple.
Q: Does the oven have self-cleaning?
A: No, but the easy-clean enamel interior helps with quick maintenance.
Maintenance Tips
-
Clean Burners Regularly: Remove and soak burner caps in warm, soapy water to prevent clogs.
-
Wipe Spills Immediately: Use a damp cloth to prevent stains and buildup.
-
Check Gas Ports: Ensure burner holes are clear for even flame distribution.
-
Clean Oven Interior: Use a mild cleaner or self-cleaning function if available.
-
Inspect Door Seals: Keep gaskets clean and check for wear to maintain efficiency.
-
Care for Grates & Racks: Soak in warm, soapy water and scrub gently to remove grease.
