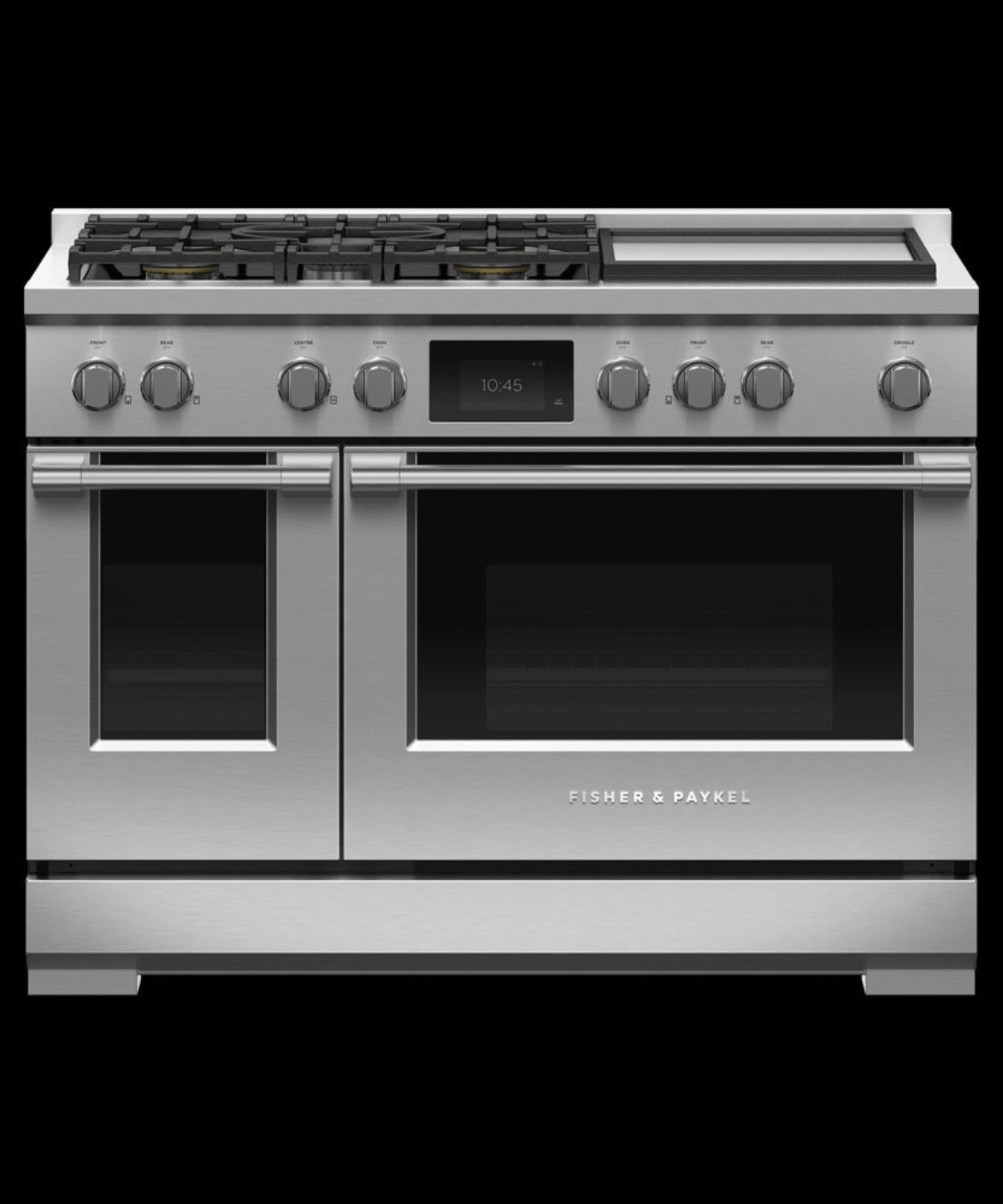

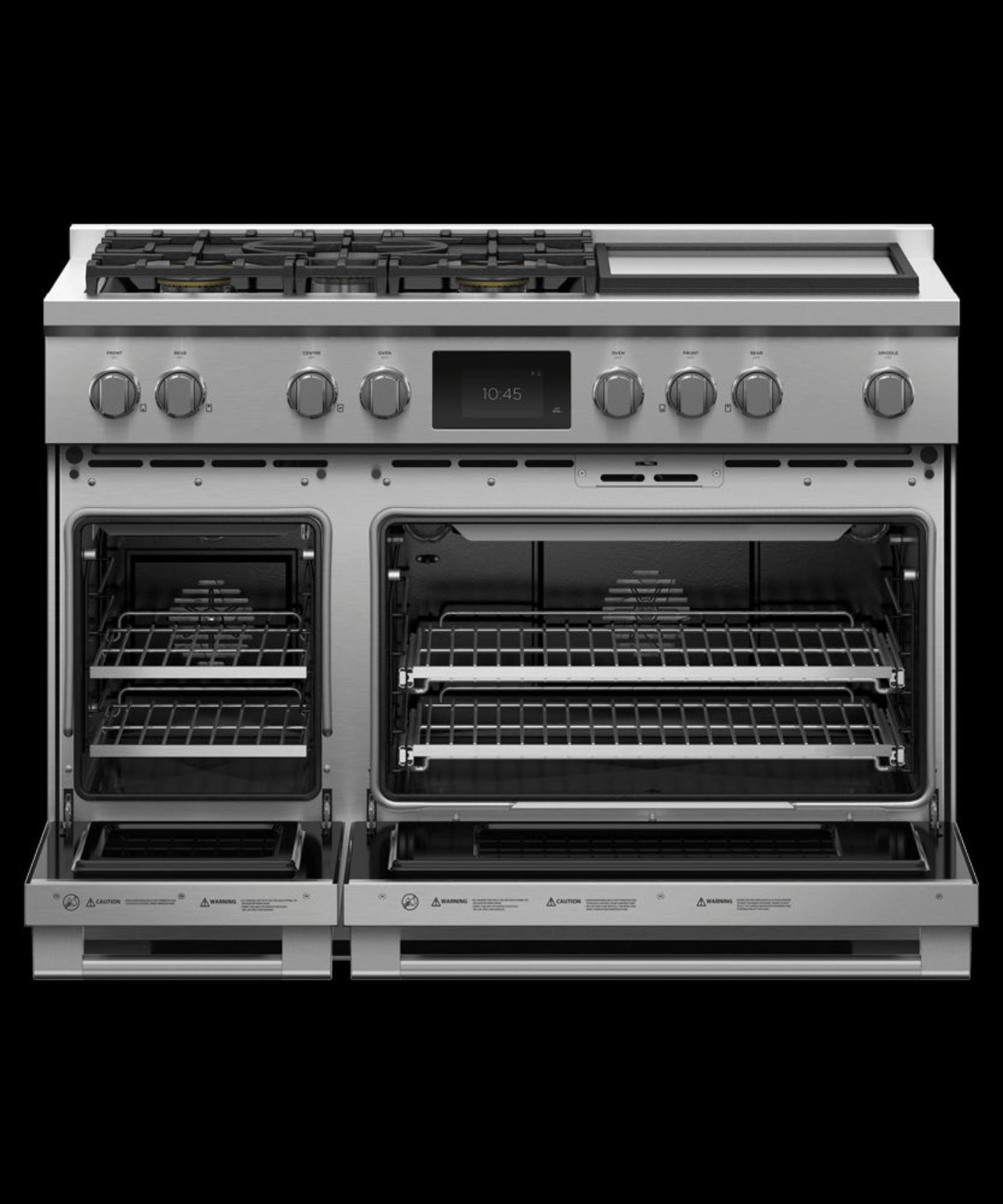

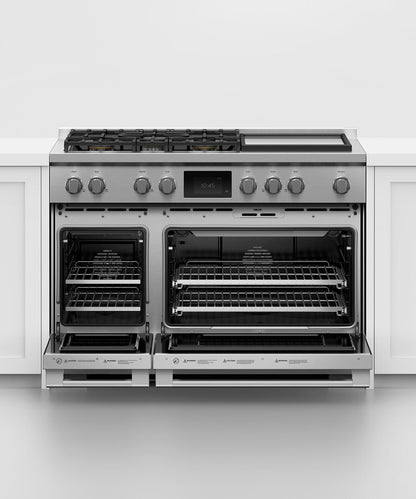

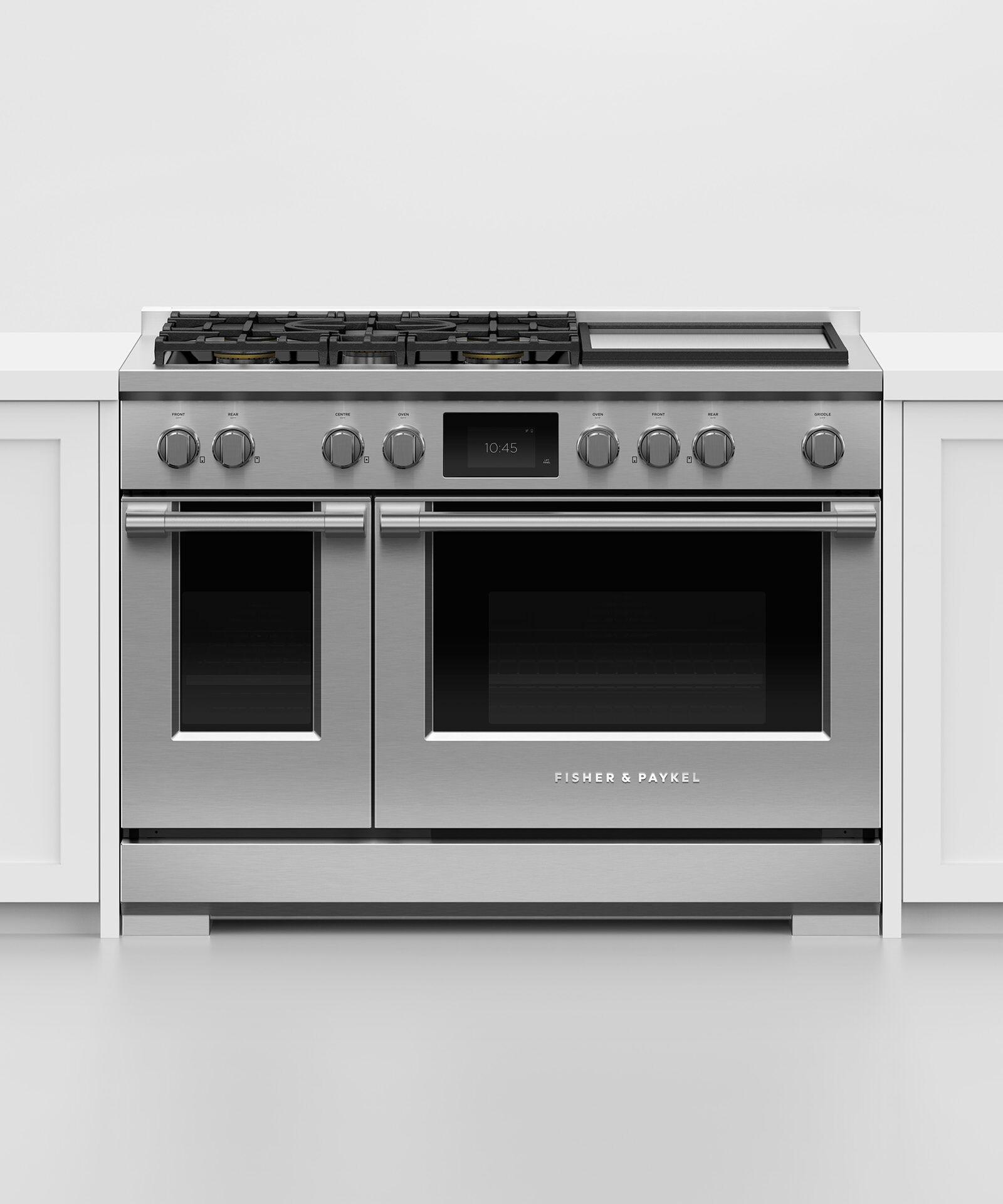

FISHER & PAYKEL RDV3485GDN Dual Fuel Range, 48", 5 Burners with Griddle, Self-cleaning - RDV3485GDN-KT
With intuitive touchscreen and specialized cooking functions across two ovens, this range is a stand-out addition to your kitchen.(BR)Finish Stainless Steel Fuel Type Natural gas
Features
- Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.

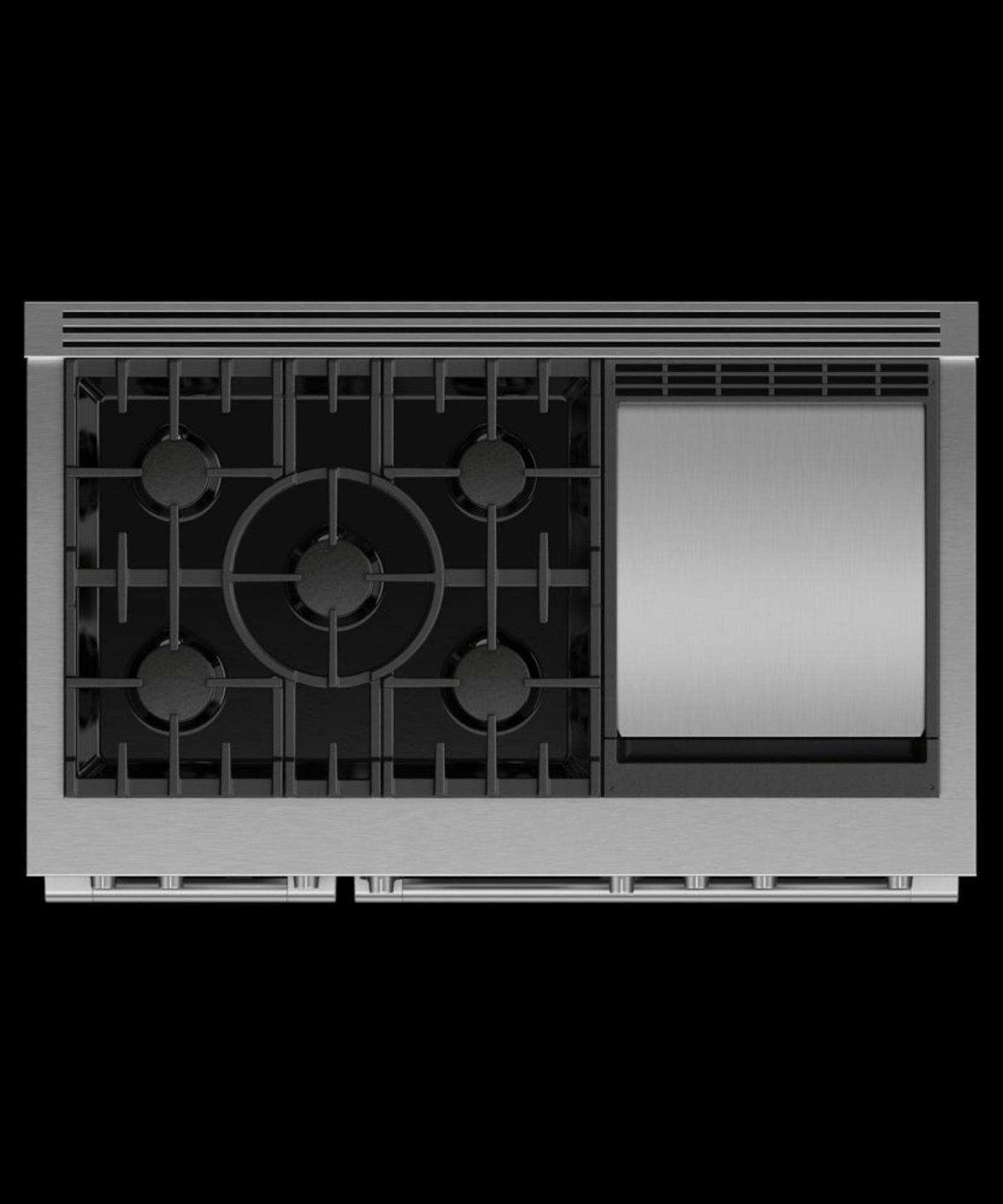

- Gas cooktop with griddle and a top burner heat up to 23,500 BTU, for seriously fast boiling
- 6.9 cu ft total oven capacity across two oven cavities
- Ensure perfect results with the food probe, included
Specifications
| Square handle option |
AH-R48 |
| Burner ratings |
| Maximum burner power |
23500 BTU |
| Power back centre |
23500BTU |
| Power back left |
18500BTU |
| Power back right |
18500BTU |
| Power front left |
18500BTU |
| Power front right |
18500BTU |
| Power griddle |
24000BTU |
| Total cooktop power |
121500 BTU |
| Capacity |
| Shelf positions |
5 |
| Shelf positions |
5 |
| Total capacity (main oven) |
4.8cu ft |
| Total capacity second oven |
2.1cu ft |
| Usable capacity (main oven) |
3.8cu ft |
| Cleaning |
| Controls |
| Electric circuit |
4 wire |
| Gas Requirements |
| Fitting and pipe |
1/2 NPT, min. 5/8 " flex line |
| Supply Pressure (natural gas) |
6 " to 9" W.C |
| Oven features |
| Oven functions |
| Number of functions |
15 |
| Oven performance |
| Bake power |
4600 |
| Broil |
3600W |
| Main oven - True convection power |
2500W |
| Power requirements |
| Amperage |
50A |
| Rated current |
50A |
| Supply frequency |
60Hz |
| Product dimensions |
| Depth |
29 1 / 8 " |
| Height |
35 3 / 4 - 36 3 / 4 " |
| Width |
47 7 / 8 " |
| Rangetop features |
| Recommended Back Guards Ventilation |
| Combustible situation |
BGRV3-3048H |
| Non combustible situation |
BGRV2-3048 / BGRV2-1248 |
| Recommended hood |
HCB48-12_N (48 " " Professional Range Hood, Dual Blower) |
| Safety |
| Secondary oven features |
| 3/4 Extension racks |
2 |
| Secondary oven functions |
| Number of secondary oven functions |
11 |
What our Experts Think
-
Dual Fuel Technology – Combines gas burners for precise cooking and an electric oven for even baking and roasting.
-
Large 48-Inch Size – Provides ample cooking space for preparing multiple dishes at once.
-
5 Powerful Burners & Griddle – Offers a variety of cooking options, from high-heat searing to low simmering.
-
Self-Cleaning Oven – Convenient self-cleaning feature saves time and effort in maintaining your oven.
-
Sleek & Modern Design – A professional look that fits seamlessly in high-end kitchens.
-
Advanced Features – Includes precision controls for consistent temperature and reliable performance.
Q&A
Q: What is the Fisher & Paykel RDV3485GDN?
A: The Fisher & Paykel RDV3485GDN is a 48" Dual Fuel Range with 5 burners and a griddle, featuring a self-cleaning oven.
Q: What does dual fuel mean?
A: Dual fuel refers to using both gas (for the burners) and electric (for the oven) in one range, providing the benefits of both heating methods.
Q: How many burners does this range have?
A: The RDV3485GDN features 5 burners, along with a griddle, offering flexible cooking options.
Q: Does it have a self-cleaning oven?
A: Yes, the oven features a self-cleaning function, making it easier to maintain and keep clean.
Q: What is the width of this range?
A: The RDV3485GDN is 48 inches wide, making it ideal for larger kitchens or for those who need more cooking space.
Q: Can this range be used with both gas and electric connections?
A: Yes, this range requires a gas connection for the burners and an electric connection for the oven.
Q: Is it easy to install?
A: Professional installation is recommended for optimal safety and functionality, especially when dealing with both gas and electric connections.
Q: What color is the range?
A: The RDV3485GDN typically comes in a sleek, modern stainless steel finish, designed to complement a variety of kitchen styles.
Maintenance Tips
-
Daily Cleaning – Wipe spills immediately with a damp cloth and mild detergent.
-
Griddle Care – Season the griddle regularly with a light oil coat to prevent rust.
-
Burner Maintenance – Clean burners and caps with warm soapy water; ensure they are dry before reassembling.
-
Oven Self-Cleaning – Run the self-cleaning cycle periodically to remove baked-on residue.
-
Control Knobs – Wipe with a soft, damp cloth; avoid soaking or using harsh chemicals.
-
Stainless Steel Finish – Use a stainless steel cleaner to maintain shine and prevent fingerprints.
-
Check Gas Connections – Periodically inspect gas lines for leaks or irregular flames.
