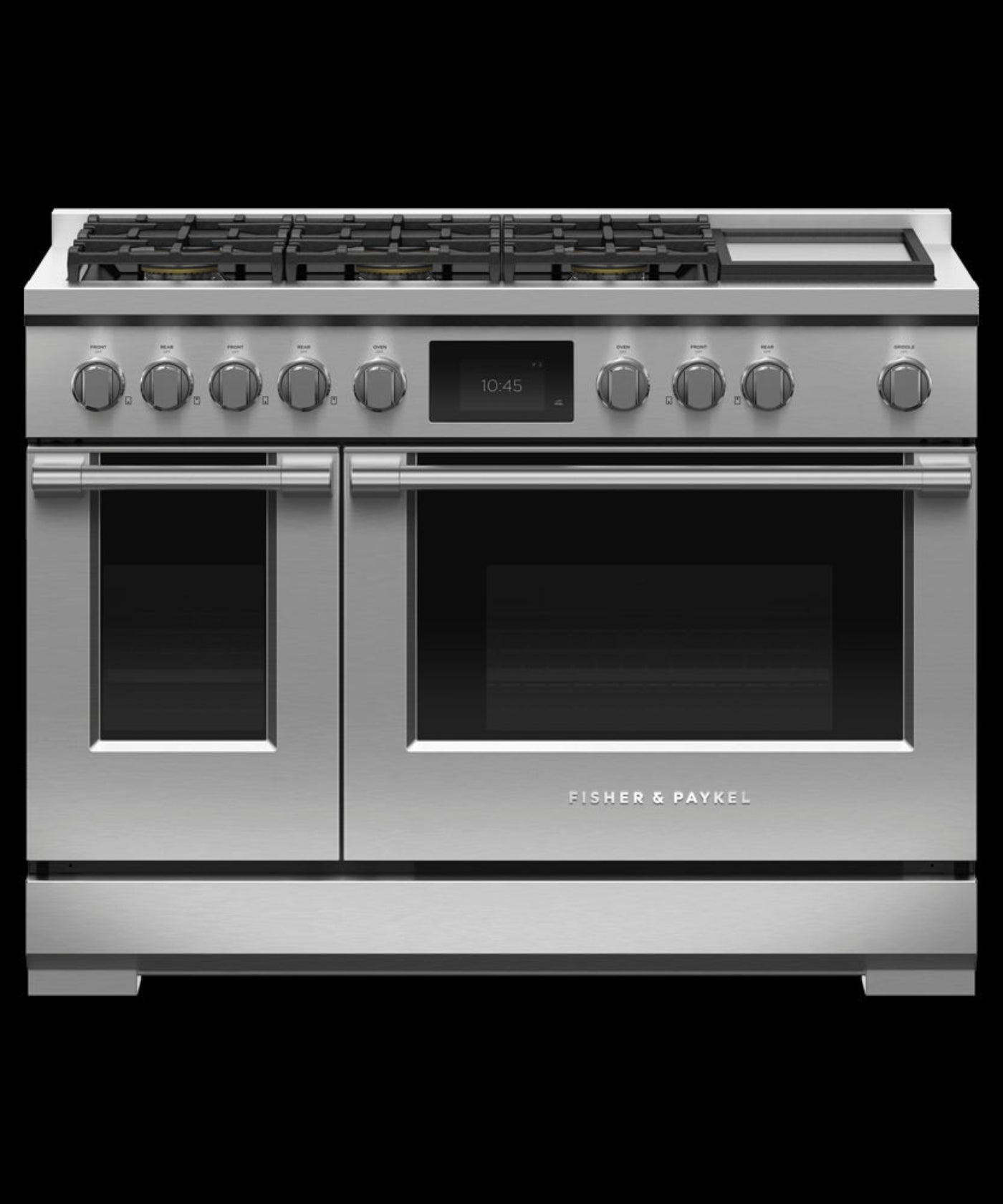

FISHER & PAYKEL RDV3486GDL Dual Fuel Range, 48", 6 Burners with Griddle - RDV3486GDL-KT
With intuitive touchscreen and specialized cooking functions across two ovens, this range is a stand-out addition to your kitchen.(BR)Finish Stainless Steel Fuel Type LPG
Features
- Guided cooking using your touchscreen makes it simple to cook by food, function or recipe
- Gas cooktop with a griddle and six burners that deliver up to 19,000 BTU for fast boiling

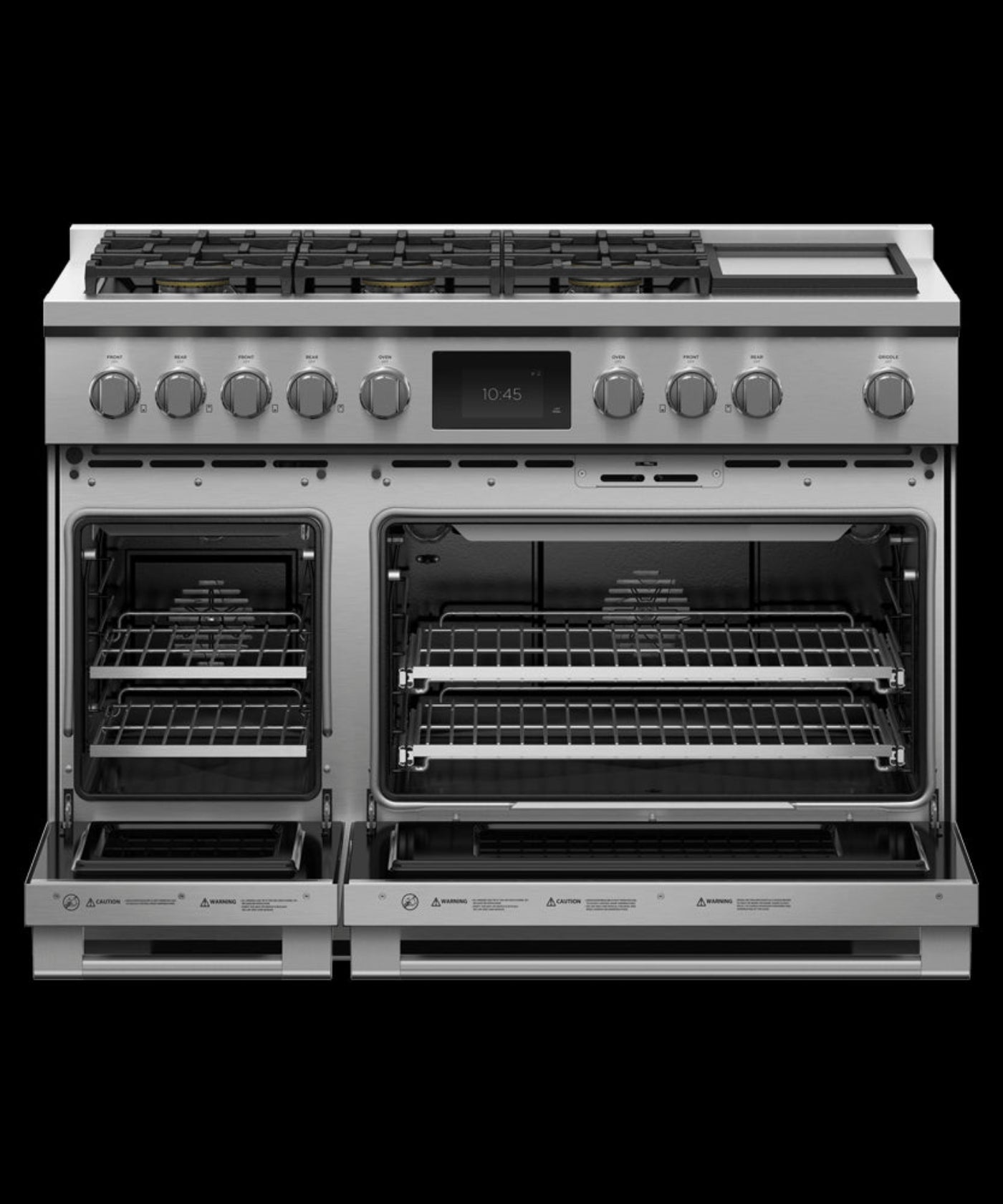

- 6.9 cu ft total oven capacity across two oven cavities
- Use the food probe to monitor your cooking real time
Specifications
| Square handle option |
AH-R48 |
| Burner ratings |
| Maximum burner power |
19000 BTU |
| Power back centre |
13000BTU |
| Power back left |
13000BTU |
| Power back right |
13000BTU |
| Power front centre |
15000BTU |
| Power front left |
19000BTU |
| Power front right |
15000BTU |
| Power griddle |
15000BTU |
| Total cooktop power |
103000 BTU |
| Capacity |
| Shelf positions |
5 |
| Shelf positions |
5 |
| Total capacity (main oven) |
4.8cu ft |
| Total capacity second oven |
2.1cu ft |
| Usable capacity (main oven) |
3.8cu ft |
| Cleaning |
| Controls |
| Gas Requirements |
| Fitting and pipe |
1/2 NPT, min. 5/8 " flex line |
| Supply Pressure (LPG) |
11 " to 14" W.C |
| Oven features |
| Oven functions |
| Number of functions |
15 |
| Power requirements |
| Amperage |
50A |
| Rated current |
50A |
| Supply frequency |
60Hz |
| Supply voltage |
120 / 208 , 120 / 240 V |
| Product dimensions |
| Depth |
29 1 / 8 " |
| Height |
35 3 / 4 - 36 3 / 4 " |
| Width |
47 7 / 8 " |
| Rangetop features |
| Rangetop Performance |
| Number of burners |
6 |
| Recommended Back Guards Ventilation |
| Combustible situation |
BGRV3-3048H |
| Non combustible situation |
BGRV2-3048 / BGRV2-1248 |
| Recommended hood |
HCB48-12_N (48 " Professional Range Hood, Dual Blower) |
| Safety |
| Secondary oven features |
| 3/4 Extension racks |
2 |
| Secondary oven functions |
| Number of secondary oven functions |
11 |
| Warranty |
| Parts and labor |
Limited 2 years |
Manual
What our Experts Think
-
Professional-Grade Cooking – 48" dual fuel range with a gas cooktop and electric convection oven for precision and power.
-
Six Sealed Burners + Griddle – Includes two dual-ring wok burners for high-heat searing and a built-in griddle for versatile cooking.
-
Spacious & Efficient Ovens – 7.7 cu. ft. total capacity, True Convection, and self-cleaning for effortless maintenance.
-
Premium Build & Design – Sleek stainless steel finish, heavy-duty cast-iron grates, and intuitive control knobs.
-
Perfect For – Serious home chefs needing maximum cooking flexibility, ample space, and a professional look.
Q&A
Q: What is the Fisher & Paykel RDV3486GDL?
A: A 48" dual fuel range with 6 burners and an integrated griddle, designed for professional-grade cooking.
Q: What type of fuel does it use?
A: Dual fuel – a gas cooktop for precise heat control and an electric oven for even baking.
Q: How many burners does it have?
A: Six sealed burners, plus a built-in griddle for versatile cooking.
Q: Is the oven self-cleaning?
A: Yes, it features a self-cleaning function for easy maintenance.
Q: What is the oven capacity?
A: 7.7 cu. ft., with dual ovens for flexible cooking options.
Q: Does it have convection cooking?
A: Yes, it includes true convection for even heat distribution.
Q: What are the dimensions?
A: Height: 35.75-36.75", Width: 47.88", Depth: 29.12".
Q: Is it Wi-Fi enabled?
A: No, this model does not support Wi-Fi connectivity.
Q: What makes this range stand out?
A: Its professional design, high-powered burners, built-in griddle, and dual ovens make it a top choice for serious home chefs.
Maintenance Tips
-
Burner & Griddle Care: Clean burners and griddle after each use with warm, soapy water; ensure burner ports are clear.
-
Self-Cleaning Oven: Run periodically to remove baked-on residue; remove racks before starting.
-
Spill Cleanup: Wipe spills immediately to prevent stains and odors.
-
Control Panel & Knobs: Clean with a damp cloth; avoid abrasive cleaners.
-
Ventilation Check: Keep range hood and filters clean for optimal airflow.
-
Oven Door Seal: Ensure a tight seal for efficient heating.
