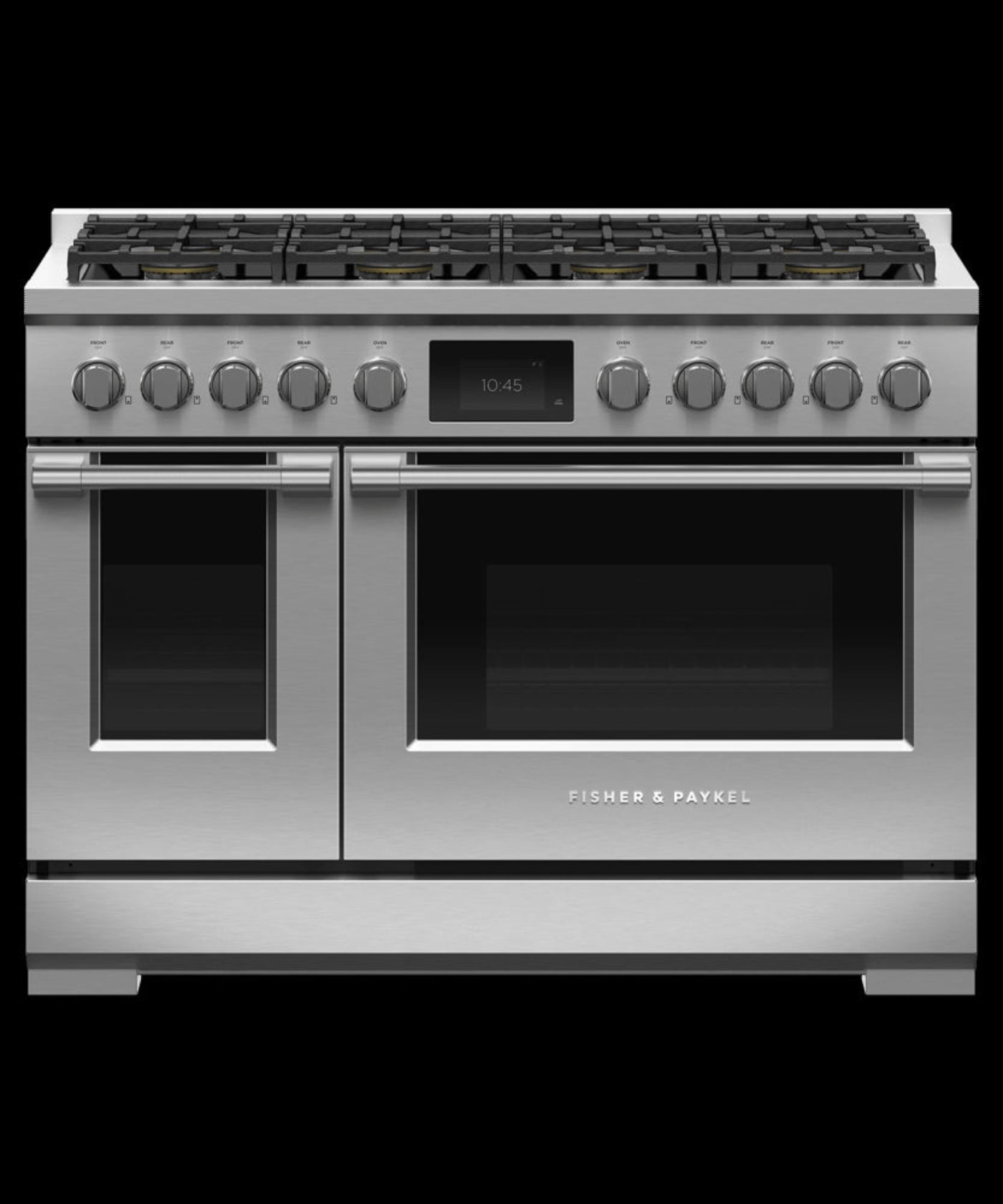

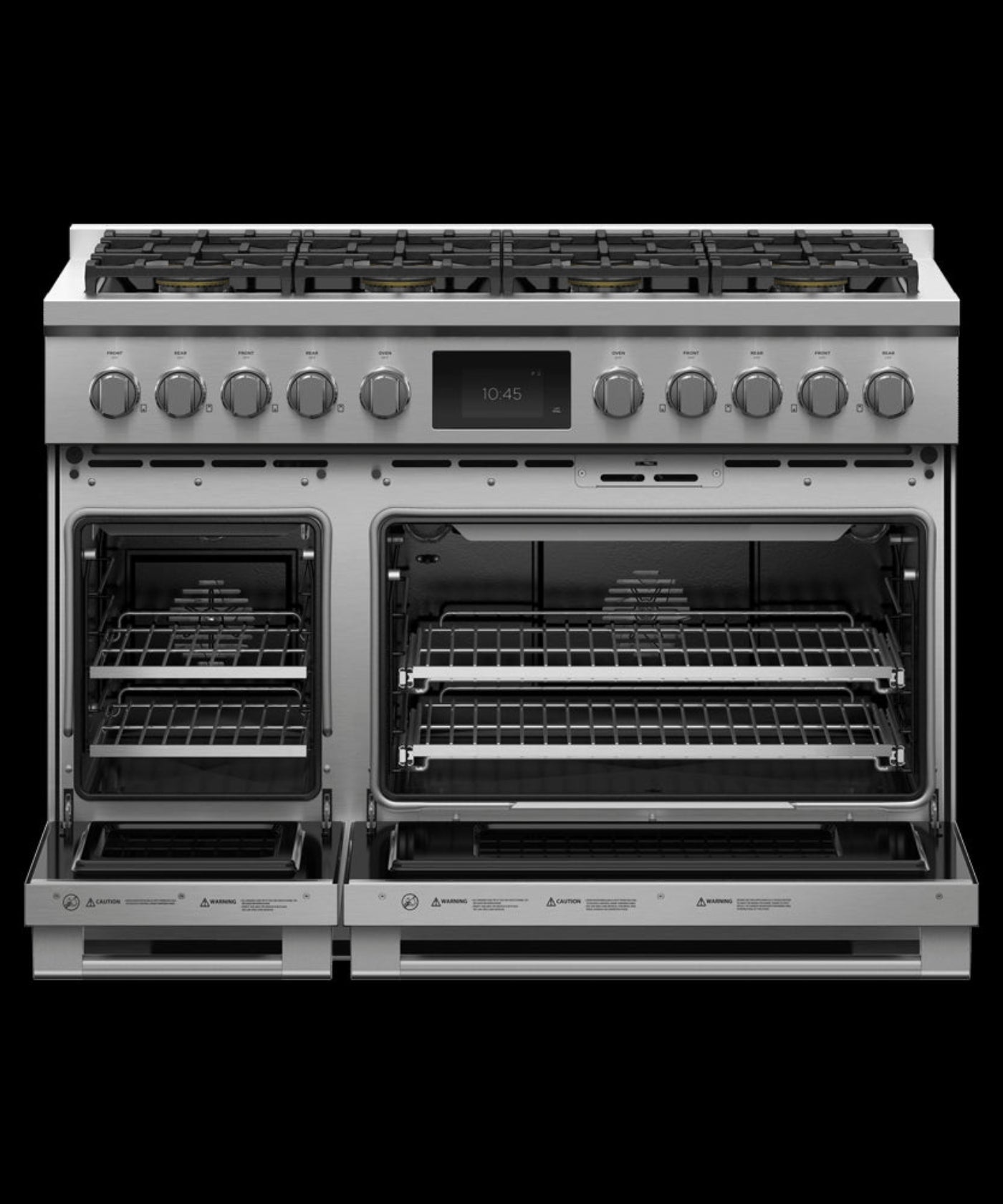

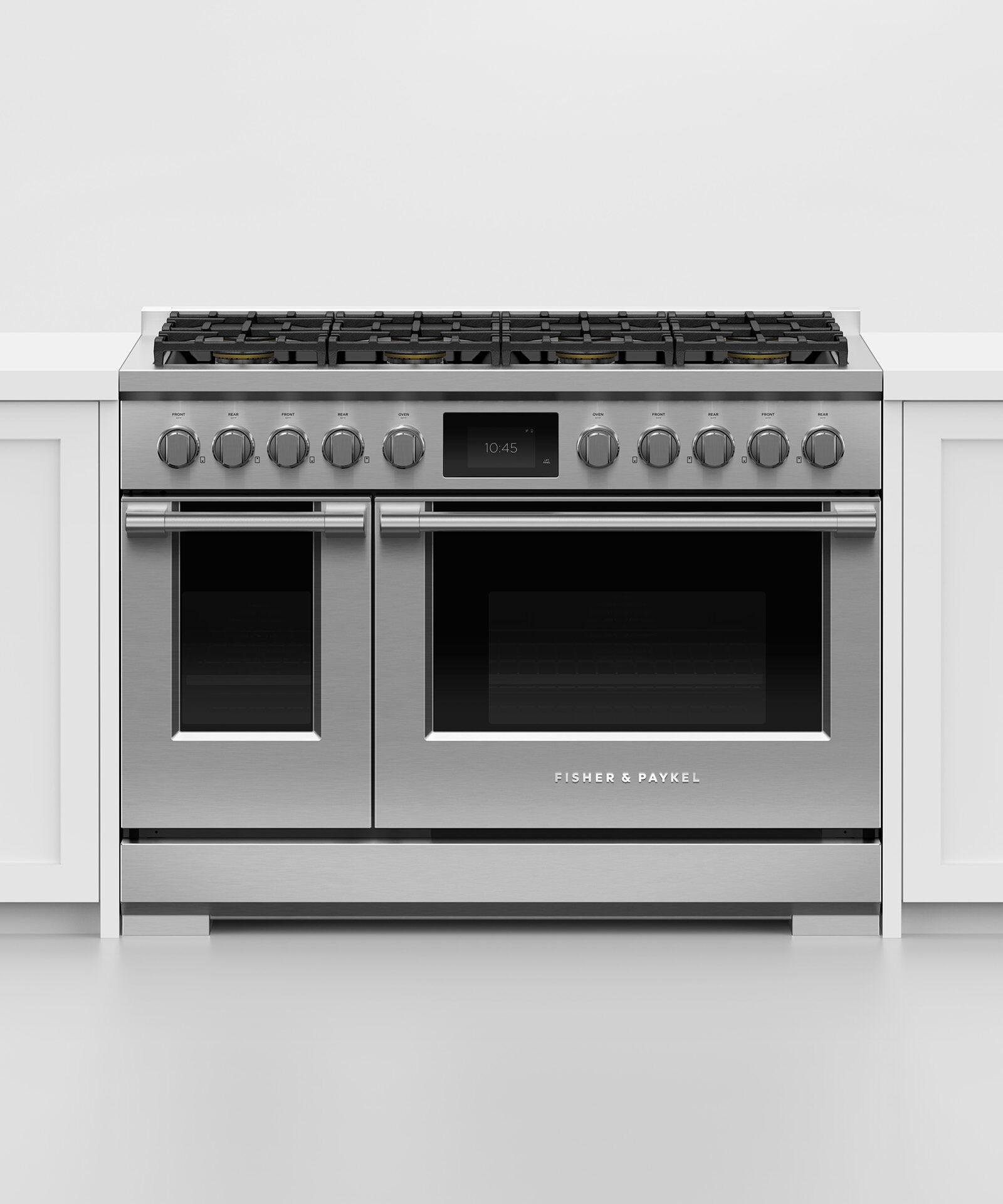

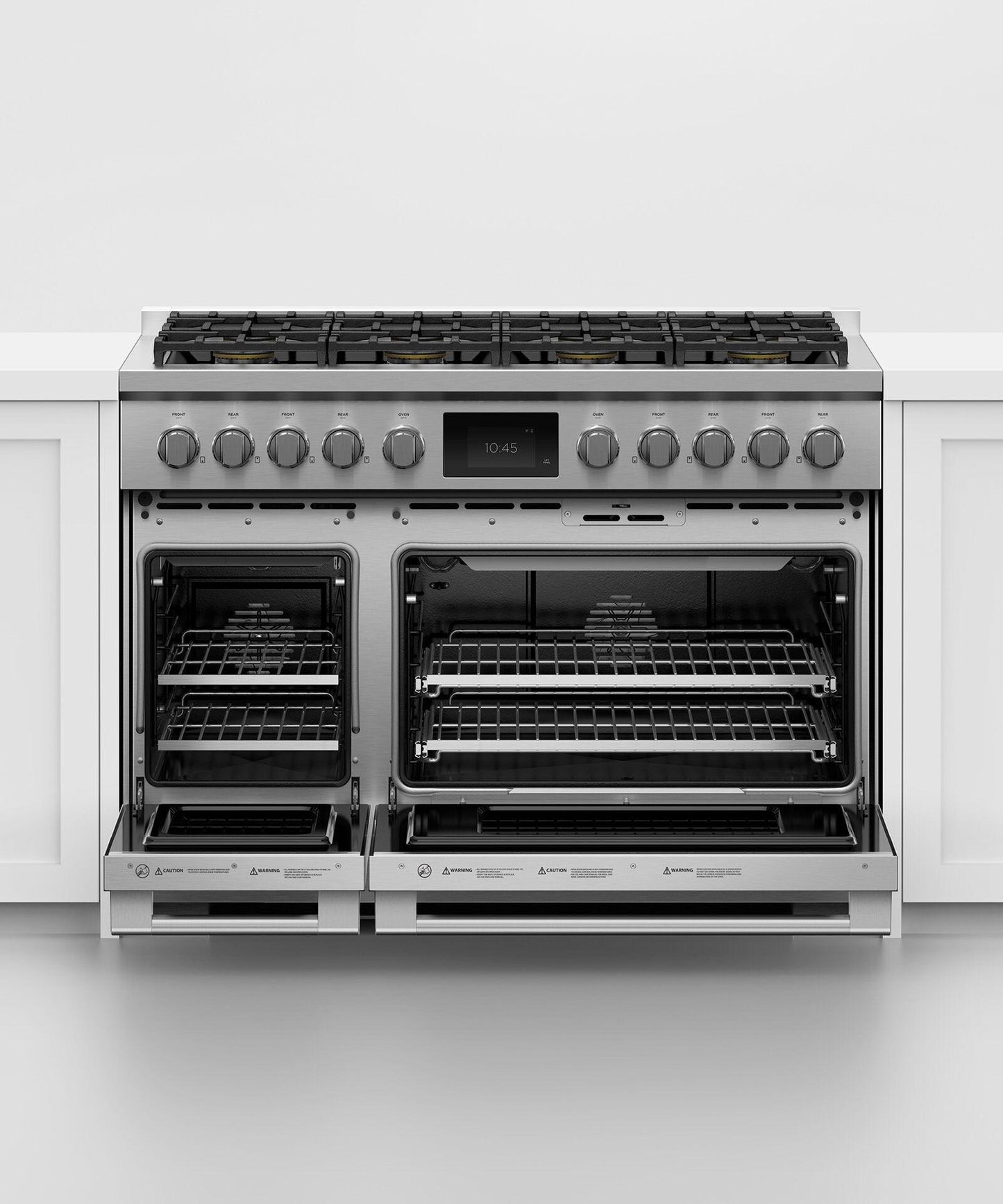

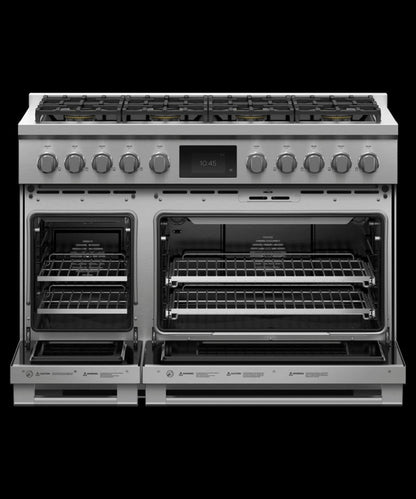

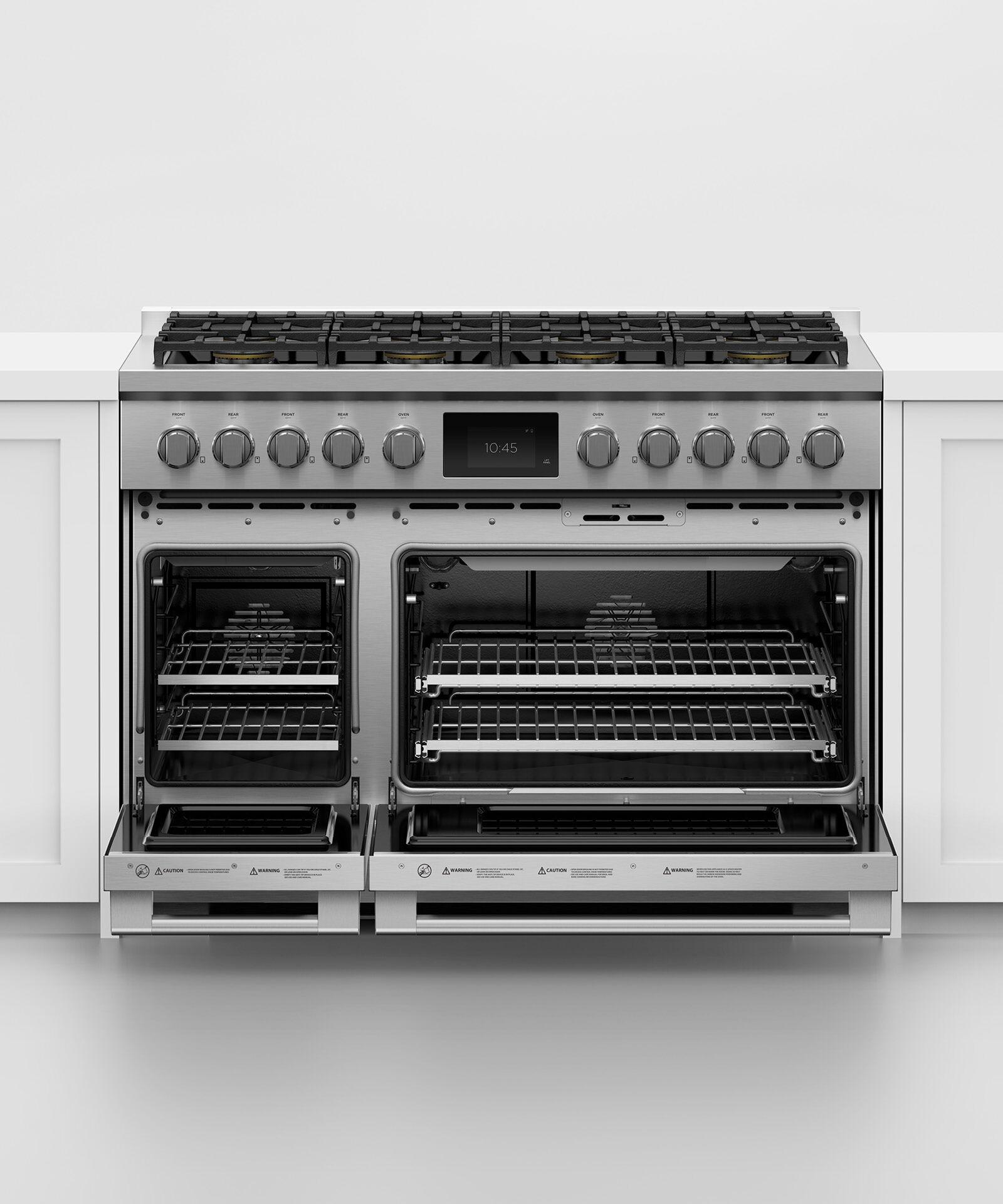

FISHER & PAYKEL RDV3488N Dual Fuel Range, 48", 8 Burners, Self-cleaning - RDV3488N-KT
With intuitive touchscreen and specialized cooking functions across two ovens, this range is a stand-out addition to your kitchen.(BR)Finish Stainless Steel Fuel Type Natural gas
Features
- Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.
- Top burner heat of 23,500 BTU, for seriously fast boiling
- 6.9 cu ft total oven capacity across two oven cavities
- Beautiful LED halo-illuminated dials provide information at a glance
Specifications
| Square handle option |
AH-R48 |
| Burner ratings |
| Maximum burner power |
23500 BTU |
| Power back centre |
18500BTU |
| Power back centre (2) |
18500BTU |
| Power back left |
18500BTU |
| Power back right |
18500BTU |
| Power front centre |
18500BTU |
| Power front centre (2) |
18500BTU |
| Power front left |
23500BTU |
| Power front right |
23500BTU |
| Total cooktop power |
158000 BTU |
| Capacity |
| Shelf positions |
5 |
| Shelf positions |
5 |
| Total capacity (main oven) |
4.8cu ft |
| Total capacity second oven |
2.1cu ft |
| Usable capacity (main oven) |
3.8cu ft |
| Cleaning |
| Controls |
| Electric circuit |
4 wire |
| Gas Requirements |
| Fitting and pipe |
1/2 NPT, min. 5/8 " flex line |
| Supply Pressure (natural gas) |
6 " to 9" W.C |
| Oven features |
| Oven functions |
| Number of functions |
15 |
| Oven performance |
| Bake power |
4600 |
| Broil |
3600W |
| Main oven - True convection power |
2500W |
| Power requirements |
| Amperage |
50A |
| Rated current |
50A |
| Supply frequency |
60Hz |
| Product dimensions |
| Depth |
29 1 / 8 " |
| Height |
35 3 / 4 - 36 3 / 4 " |
| Width |
47 7 / 8 " |
| Rangetop features |
| Recommended Back Guards Ventilation |
| Combustible situation |
BGRV3-3048H |
| Non combustible situation |
BGRV2-3048 / BGRV2-1248 |
| Recommended hood |
HCB48-12_N (48 " " Professional Range Hood, Dual Blower) |
| Safety |
| Secondary oven features |
| 3/4 Extension racks |
2 |
| Secondary oven functions |
| Number of secondary oven functions |
11 |
Manual
What our Experts Think
-
High-Performance Cooking – 48" dual fuel range with a gas cooktop and electric convection oven for precision and power.
-

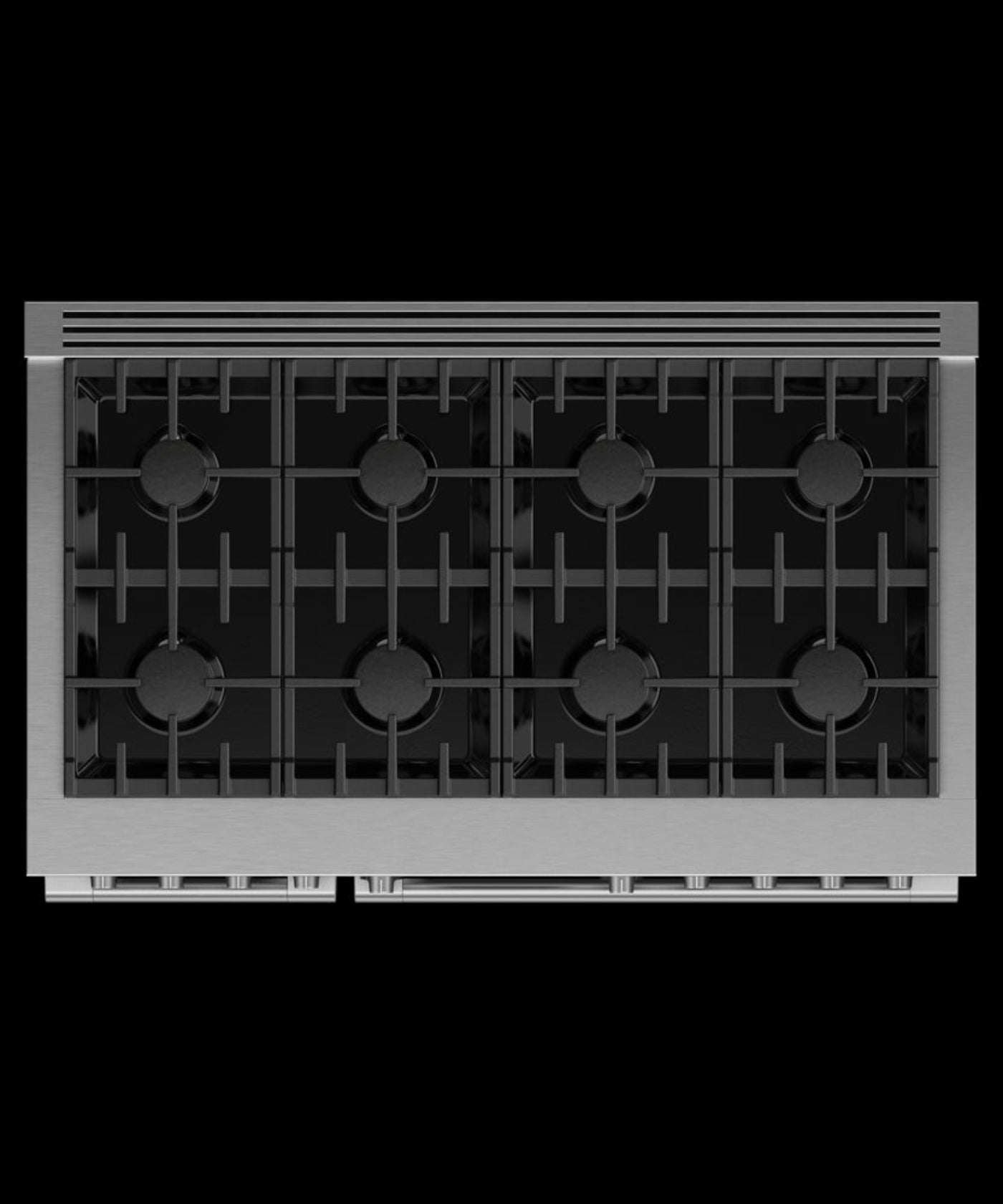

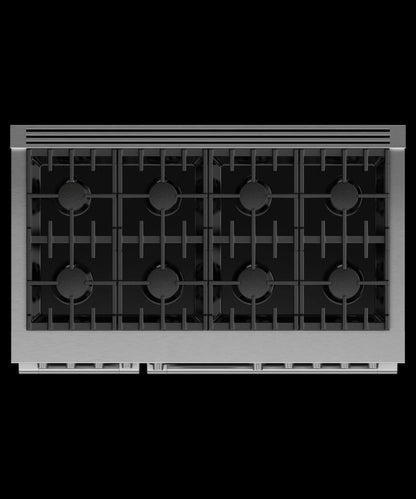

Eight Sealed Burners – Includes two dual-ring wok burners for high-heat searing and delicate simmering.
-
Spacious Oven Capacity – 7.7 cu. ft. total capacity with self-cleaning and True Convection for even baking.
-
Professional-Grade Build – Sleek stainless steel finish, heavy-duty cast-iron grates, and intuitive control knobs.
-
Perfect For – Serious home chefs needing maximum cooking space, versatility, and premium performance.
Q&A
Q: What is the Fisher & Paykel RDV3488N?
A: A 48" dual fuel range with 8 burners and a self-cleaning electric oven, built for high-performance cooking.
Q: What type of fuel does it use?
A: Dual fuel – a gas cooktop for precise heat control and an electric oven for even baking.
Q: How many burners does it have?
A: Eight sealed burners, including high-powered burners for rapid boiling and searing.
Q: Is the oven self-cleaning?
A: Yes, it features a self-cleaning function for easy maintenance.
Q: What is the oven capacity?
A: 7.7 cu. ft., with dual ovens for maximum cooking flexibility.
Q: Does it have convection cooking?
A: Yes, it includes true convection for even heat distribution.
Q: What are the dimensions?
A: Height: 35.75-36.75", Width: 47.88", Depth: 29.12".
Q: Is it Wi-Fi enabled?
A: No, this model does not support Wi-Fi connectivity.
Q: What makes this range stand out?
A: Its professional-grade design, spacious dual ovens, and powerful burners make it ideal for serious home chefs and large-scale cooking.
Maintenance Tips
-
Burner Care: Clean burners and grates weekly with warm, soapy water; ensure burner ports are unclogged.
-
Self-Cleaning Oven: Run periodically to remove baked-on residue; remove racks before starting.
-
Spill Cleanup: Wipe spills immediately to prevent stains and odors.
-
Control Panel & Knobs: Use a damp cloth; avoid abrasive cleaners.
-
Ventilation Check: Keep range hood and filters clean for optimal airflow.
-
Oven Door Seal: Ensure a tight seal for efficient heating.
