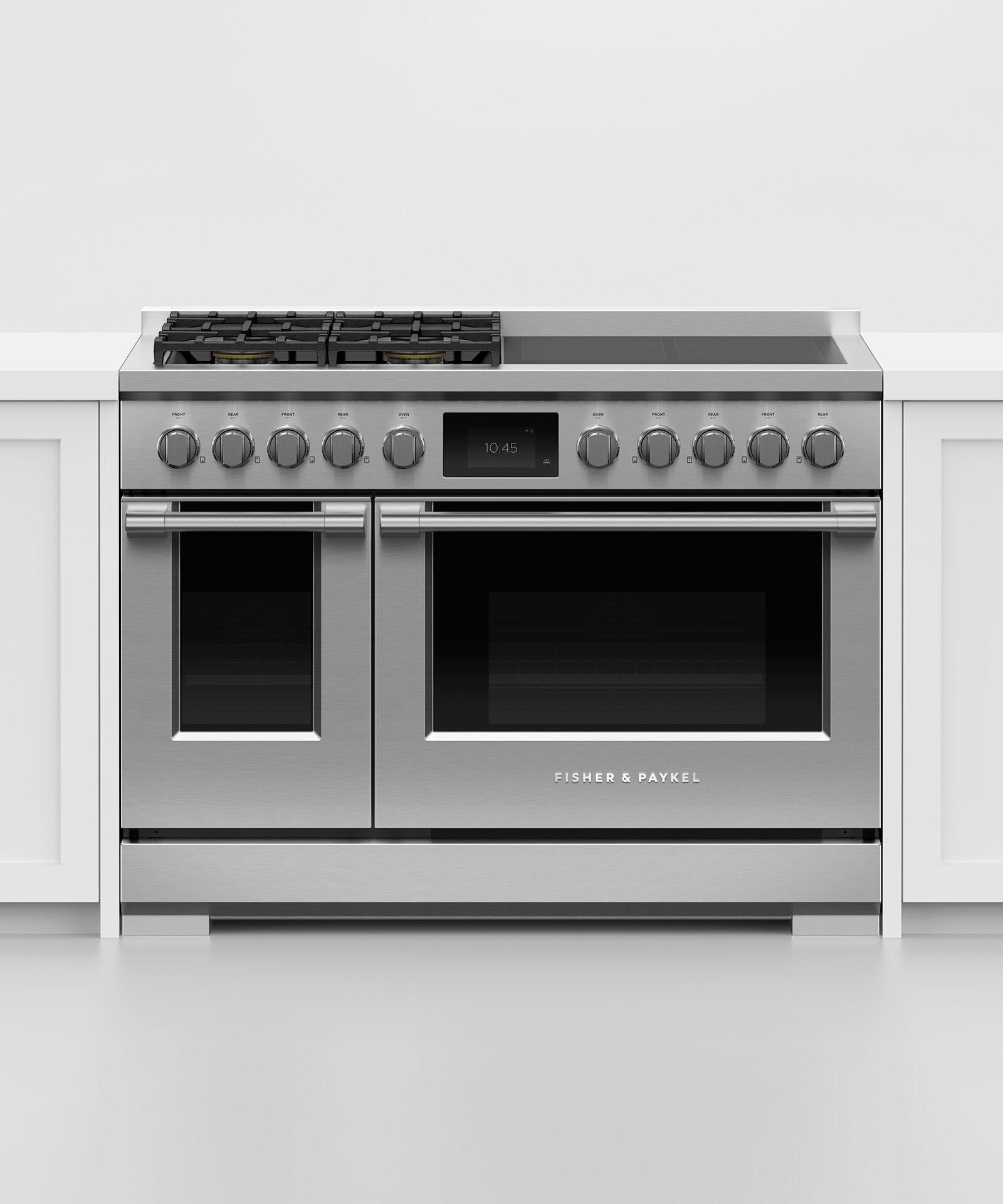

FISHER & PAYKEL RHV3484L Dual Fuel Range, 48", 4 Burners, 4 Induction Zones, Self-cleaning, LPG - RHV3484L-KT
With both induction and gas cooktops and two convection ovens, you're ready to create a feast - guided by an intuitive touchscreen.(BR)Finish Stainless Steel Fuel Type LPG
Features
- Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.
- Top burner heat of 19,000 BTU, for seriously fast boiling
- Four induction cooking zones, which can be paired to form two SmartZones
- 6.9 cu ft total oven capacity across two oven cavities
Specifications
| Accessories |
| Accessories (sold separately) |
| Square handle option |
AH-R48 |
| Burner ratings |
| Maximum burner power |
19000 BTU |
| Power back left |
13000BTU |
| Power back right |
13000BTU |
| Power front left |
19000BTU |
| Power front right |
13000BTU |
| Total cooktop power |
58000 BTU |
| Capacity |
| Shelf positions |
5 |
| Shelf positions |
5 |
| Total capacity (main oven) |
4.8cu ft |
| Total capacity second oven |
2.1cu ft |
| Usable capacity (main oven) |
3.8cu ft |
| Cleaning |
| Controls |
| Electric circuit |
4 wire |
| Gas Requirements |
| Fitting and pipe |
1/2 NPT, min. 5/8 " flex line |
| Supply Pressure (LPG) |
11 " to 14" W.C |
| Oven features |
| Oven functions |
| Number of functions |
15 |
| Oven performance |
| Bake |
4600W |
| Broil |
3600W |
| Broil power |
4000W |
| Main oven - True convection power |
2500W |
| Power requirements |
| Rated current |
50A |
| Supply frequency |
60Hz |
| Product dimensions |
| Depth |
29 1 / 8 " |
| Height |
35 3 / 4 - 36 3 / 4 " |
| Width |
47 7 / 8 " |
| Rangetop features |
| Heat settings |
9 |
| SmartZone |
2 |
| Rangetop Performance |
| Left front zone rating |
2100 (3700)W |
| Left rear zone rating |
2100 (3700)W |
| Number of burners |
4 |
| Number of cooking zones |
4 |
| PowerBoost all zones |
up to 3700W |
| Right front zone rating |
2100 (3700)W |
| Right rear zone rating |
2100 (3700)W |
| Recommended Back Guards Ventilation |
| Combustible situation |
BGRV3-3048H |
| Non combustible situation |
BGRV2-3048 / BGRV2-1248 |
| Recommended hood |
HCB48-12_N (48 " Professional Range Hood, Dual Blower) |
| Safety |
| Secondary oven features |
| 3/4 Extension racks |
2 |
| Secondary oven functions |
| Number of secondary oven functions |
11 |
Manual
What our Expect Think
-
Versatile Dual-Fuel Performance – Combines the power of gas burners with the precision of induction cooking for ultimate flexibility.
-
Spacious 48” Design – Ideal for serious home chefs, featuring four gas burners and four induction zones for simultaneous cooking.
-
High-Performance Burners – Powerful LPG burners deliver up to 23,500 BTU, perfect for searing, sautéing, and simmering.
-
Induction Cooking Zones – Fast, energy-efficient heating with precise temperature control for delicate cooking.
-
Self-Cleaning Oven – Saves time with a built-in pyrolytic cleaning function that breaks down grease and residue.
-
Large Capacity Oven – Even heat distribution ensures consistent baking and roasting results.
-
Premium Stainless Steel Construction – Durable, sleek, and designed to complement any high-end kitchen.
Q&A
Q: What are the dimensions of the FISHER & PAYKEL RHV3484L Dual Fuel Range?
A: It is 48 inches wide, offering a professional-grade cooking experience.
Q: How many burners and cooking zones does this range have?
A: It features 4 high-powered gas burners and 4 induction cooking zones for ultimate flexibility.
Q: What is the power output of the gas burners?
A: The burners deliver up to 23,500 BTU for high-heat searing and fast boiling.
Q: Is this range self-cleaning?
A: Yes, it includes a self-cleaning function for easy maintenance.
Q: What type of fuel does this range use?
A: It is a dual-fuel model, combining gas burners (LPG) with electric-powered induction zones.
Q: Does it have a convection oven?
A: Yes, it features a convection oven for even heat distribution and superior baking results.
Q: What kind of controls does it have?
A: It includes precision dial controls and an intuitive touchscreen for seamless operation.
Maintenance Tips
-
Clean Burners & Induction Zones: Wipe burners and induction surfaces with a damp cloth after each use to prevent buildup.
-
Use the Right Cookware: Ensure induction-compatible cookware is used for optimal performance.
-
Wipe Spills Immediately: Clean spills from the cooktop and oven to prevent stains and residue.
-
Check Gas Connections: Periodically inspect for leaks or irregular flames in LPG burners.
-
Self-Cleaning Cycle: Use the oven’s self-clean function periodically to remove grease and buildup.
-
Avoid Harsh Cleaners: Use non-abrasive cleaners to protect surfaces and maintain a pristine finish.
