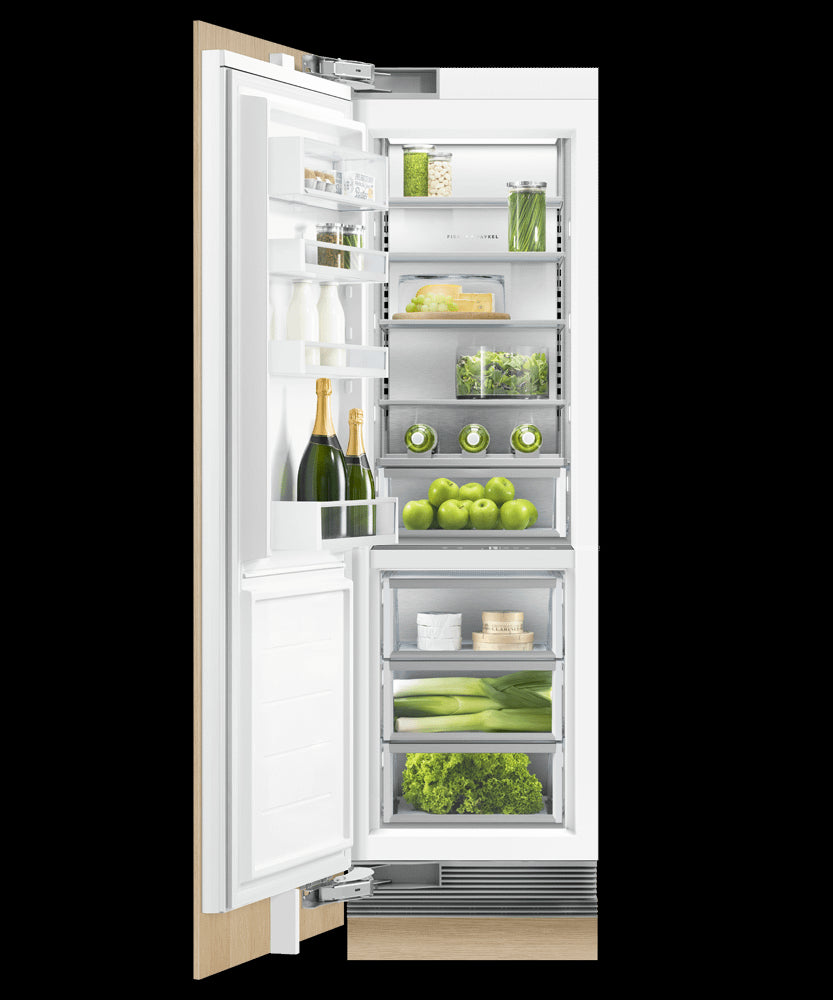

FISHER & PAYKEL RS2474BRU1 Integrated Refrigerator Freezer, 24", Ice & Water - RS2474BRU1-KT
A slim profile, perfect for compact kitchens, or pair with other Integrated models for generous chilled and frozen storage.(BR)Finish Panel Ready Hinge Right Hinge
Features
- Flush fit design with 3/16" gaps and custom height installation
- Convenient access to fresh, chilled water and ice with internal water dispenser and ice maker
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory
- Easy-to-use touch-control panel and Wi-Fi capability
Specifications
| Accessories |
| Accessories (sold separately) |

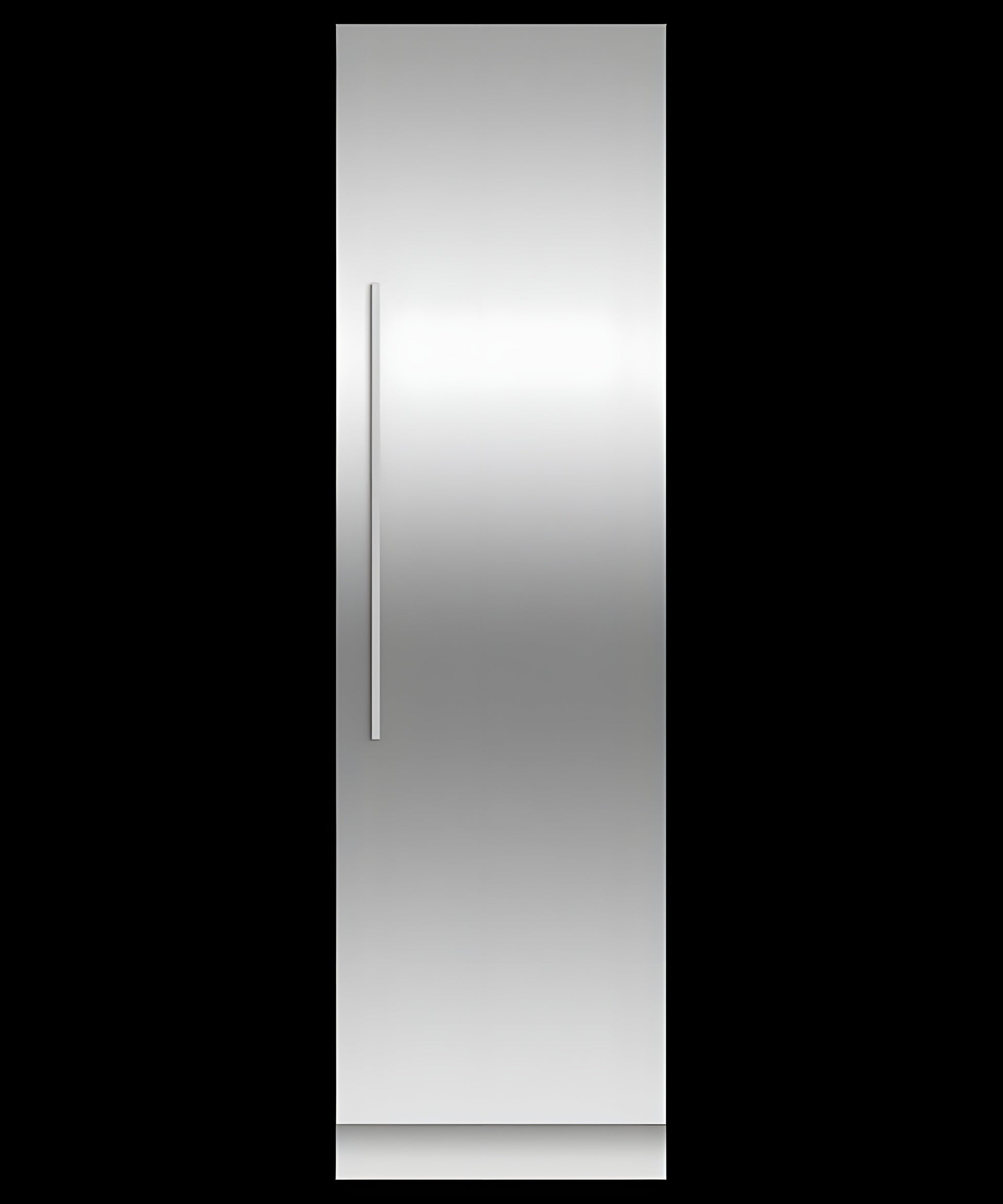

| Door panel set stainless steel |
RD2474BR (right hinge), RD2474BL (left hinge) |
| Handle kit Contemporary square fine, aluminium |
AHD5RDB74 |
| Handle kit Contemporary square fine, black |
AHD5RDB74B |
| Handle kit Professional round flush |
AHP3RDB74 |
| Joiner kit |
AJRS74LR |
| Toe kick stainless steel 23" |
AKRS2304 |
| Toe kick stainless steel 47" |
AKRS4704 |
| Toe kick stainless steel 71" |
AKRS7104 |
| Water filter replacement |
847200 |
| Capacity |
| Total gross capacity |
303cu ft |
| Volume freezer |
4.3cu ft |
| Volume refrigerator |
6.4cu ft |
| Consumption |
| Energy rating |
Energy star Most efficient |
| Energy usage |
382kWh/year |
| Features |
| Adjustable door shelves |
4 |
| Covered door shelves |
1 |
| Stackable bottle holders |
2 |
| Water tank capacity |
30.7oz |
| Freezer Features |
| Freezer bins |
3 |
| Ice making rate per day |
2.2lbs |
| Installation Dimensions |
| Minimum inside width of cabinetry frame |
23 5 / 8 " |
| Minimum internal depth of cabinetry |
24 " |
| Minimum internal height of cabinetry |
74 " |
| Performance |
| Power requirements |
| Rated current |
10A |
| Supply frequency |
60Hz |
| Supply voltage |
115V |
| Product dimensions |
| Depth |
22 11 / 16 " |
| Height |
73 5 / 8 " |
| Width |
23 5 / 16 " |
Manual
What our Expect Think
-
Seamless Built-In Design – Integrates perfectly into custom cabinetry for a sleek, modern look.
-
24” Refrigerator Freezer Combination – Compact yet spacious with well-organized storage solutions.
-
Ice & Water Dispenser – Internal water dispenser and automatic ice maker for convenience.
-
ActiveSmart™ Technology – Adjusts cooling and airflow to maintain optimal food freshness.
-
SmartTouch Controls – Intuitive digital interface for easy temperature adjustments.
-
Soft-Close Drawers – High-quality construction ensures smooth and quiet operation.
-
Energy-Efficient Performance – Optimized for cooling efficiency while reducing energy consumption.
Q&A
Q: What are the dimensions of the FISHER & PAYKEL RS2474BRU1 Integrated Refrigerator Freezer?
A: It is 24 inches wide, designed for seamless built-in integration.
Q: Does this model include an ice and water dispenser?
A: Yes, it features an internal ice maker and water dispenser for convenience.
Q: What is the total capacity of this refrigerator freezer?
A: It offers ample storage with separate refrigerator and freezer compartments.
Q: Is this refrigerator panel-ready?
A: Yes, it is designed for custom panel integration to match your kitchen cabinetry.
Q: Does it have an advanced cooling system?
A: Yes, it includes ActiveSmart™ technology to maintain optimal temperature and humidity levels.
Q: What type of shelving and storage does it offer?
A: It features adjustable shelving, spacious bins, and humidity-controlled crispers.
Q: Is this model energy-efficient?
A: Yes, it is designed for energy efficiency while providing consistent cooling performance.
Maintenance Tips
-
Clean Interior Regularly: Wipe shelves and drawers with a damp cloth and mild detergent to prevent odors.
-
Replace Water Filter: Change the water filter every 6 months for fresh ice and clean water.
-
Check Door Seals: Keep gaskets clean and inspect for wear to maintain energy efficiency.
-
Vacuum Condenser Coils: Clean every 6-12 months to ensure optimal cooling performance.
-
Monitor Temperature Settings: Keep fridge and freezer at recommended temperatures for food safety.
-
Avoid Overloading: Allow proper air circulation by organizing food efficiently.
