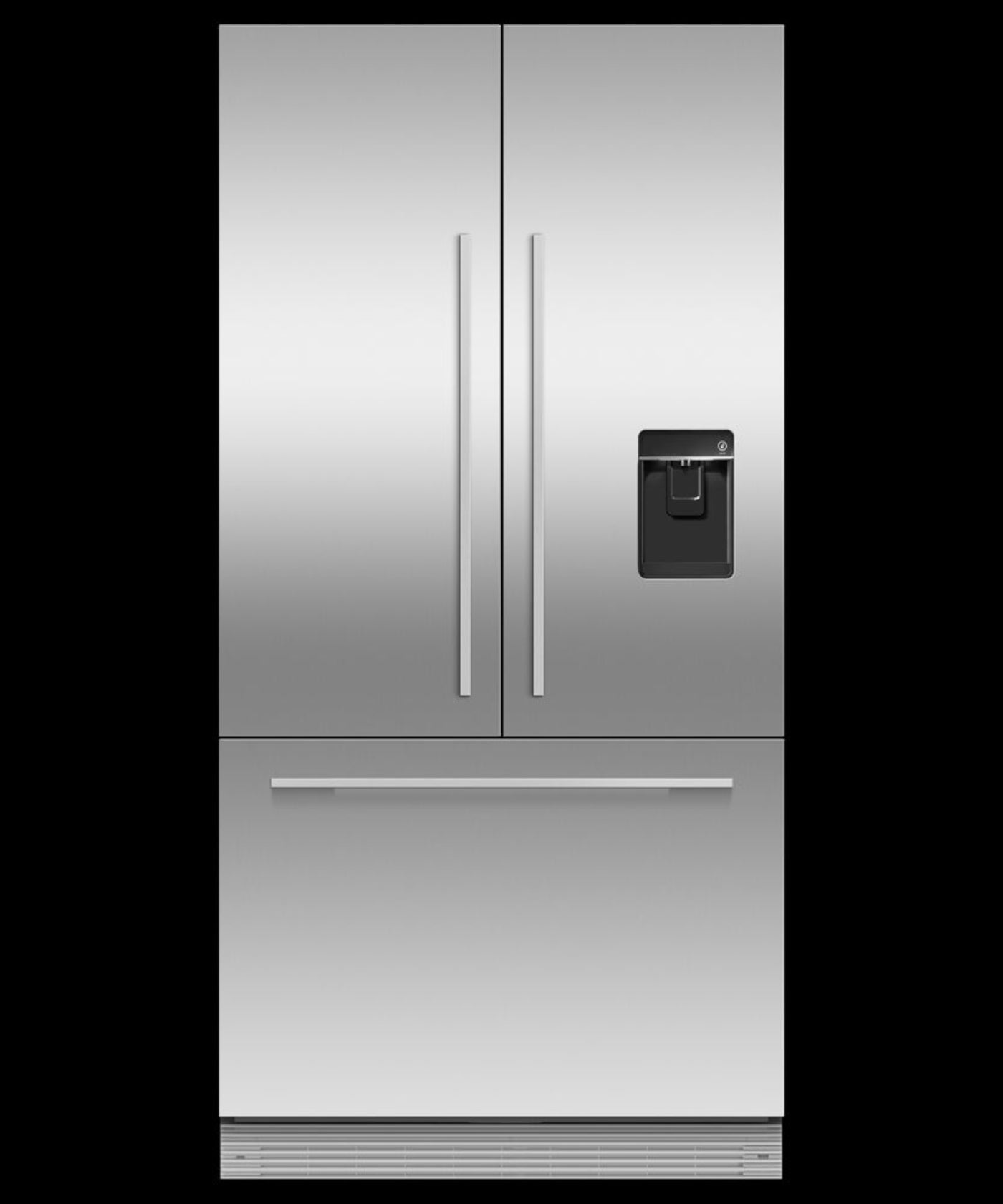

FISHER & PAYKEL RS36A72U1N Integrated French Door Refrigerator Freezer, 36", Ice & Water - RS36A72U1N-KT
This large capacity refrigerator with bottom freezer seamlessly integrates into your kitchen, fitting flush into your cabinetry.(BR)Finish Panel Ready Hinge French hinge
Features
- ActiveSmart(TM) technology helps keep food fresher for longer by constantly maintaining the ideal temperature
- Stainless steel door panel purchased separately - with water dispenser option available
- Internal ice maker with boost for busy times

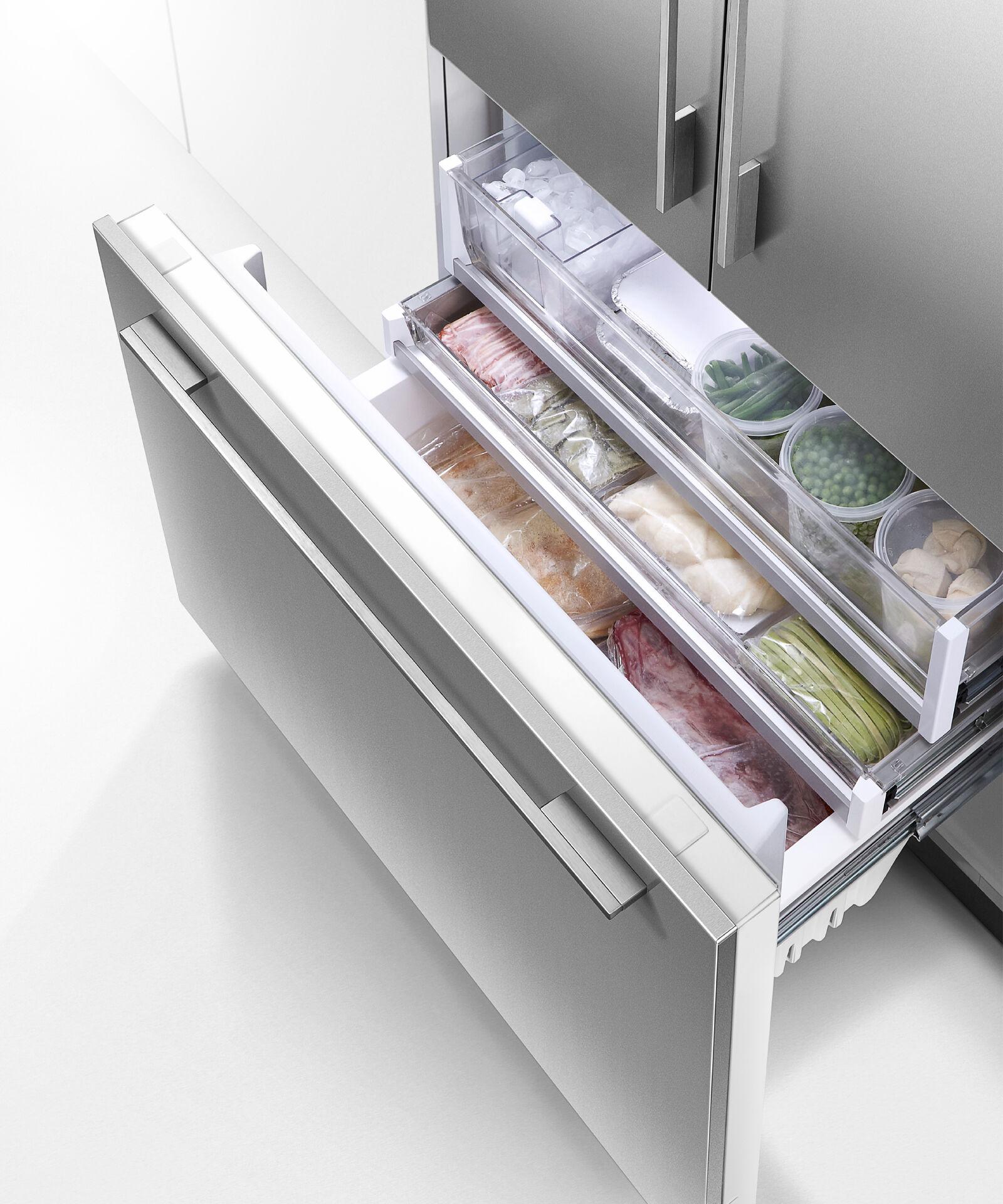

- Spacious bottom freezer with full extension drawer gives easy access to frozen goods
Specifications
| Door panel stainless steel |
RD3672AU |
| Handle kit Contemporary round, aluminium |
AHS-ASBI-A |
| Handle kit Contemporary square fine, aluminium |
AHD5RD36A |
| Handle kit Contemporary square fine, black |
AHD5RD36AB |
| Handle kit Contemporary square, aluminium |
RS36A |
| Handle kit Professional round |
AHCRS36A |
| Handle kit Professional round flush |
AHP3RD36A |
| Handle kit Professional square |
AHV2RS36A |
| Water filter replacement |
FWC3 |
| Capacity |
| Total gross capacity |
16.8cu ft |
| Volume |
16.8cu ft |
| Volume freezer |
5.1cu ft |
| Volume refrigerator |
11.7cu ft |
| Consumption |
| Energy rating |
Energy star |
| Energy usage |
561kWh/year |
| Features |
| Adjustable door shelves |
6 |
| Covered door shelves |
2 |
| Deli storage bins |
1 |
| Fruit and vegetable bins |
2 |
| Stackable bottle holders |
4 |
| Water Filter |
Part number 842802 |
| Freezer Features |
| Freezer bins |
1 |
| Performance |
| Power requirements |
| Supply frequency |
60Hz |
| Supply voltage |
115V |
| Product dimensions |
| Depth |
23 3 / 4 " |
| Height |
71 13 / 16 " |
| Width |
35 1 / 16 " |
| Warranty |
| Parts and labor |
2 years |
| Sealed system parts only |
5 years |
Manual
What our Experts Think
-
Spacious 36" Design – Ample storage for fresh and frozen foods with a sleek, integrated look.
-
French Door Convenience – Easy access to fresh food while minimizing energy loss.
-
Built-In Ice & Water Dispenser – Provides filtered water and ice on demand.
-

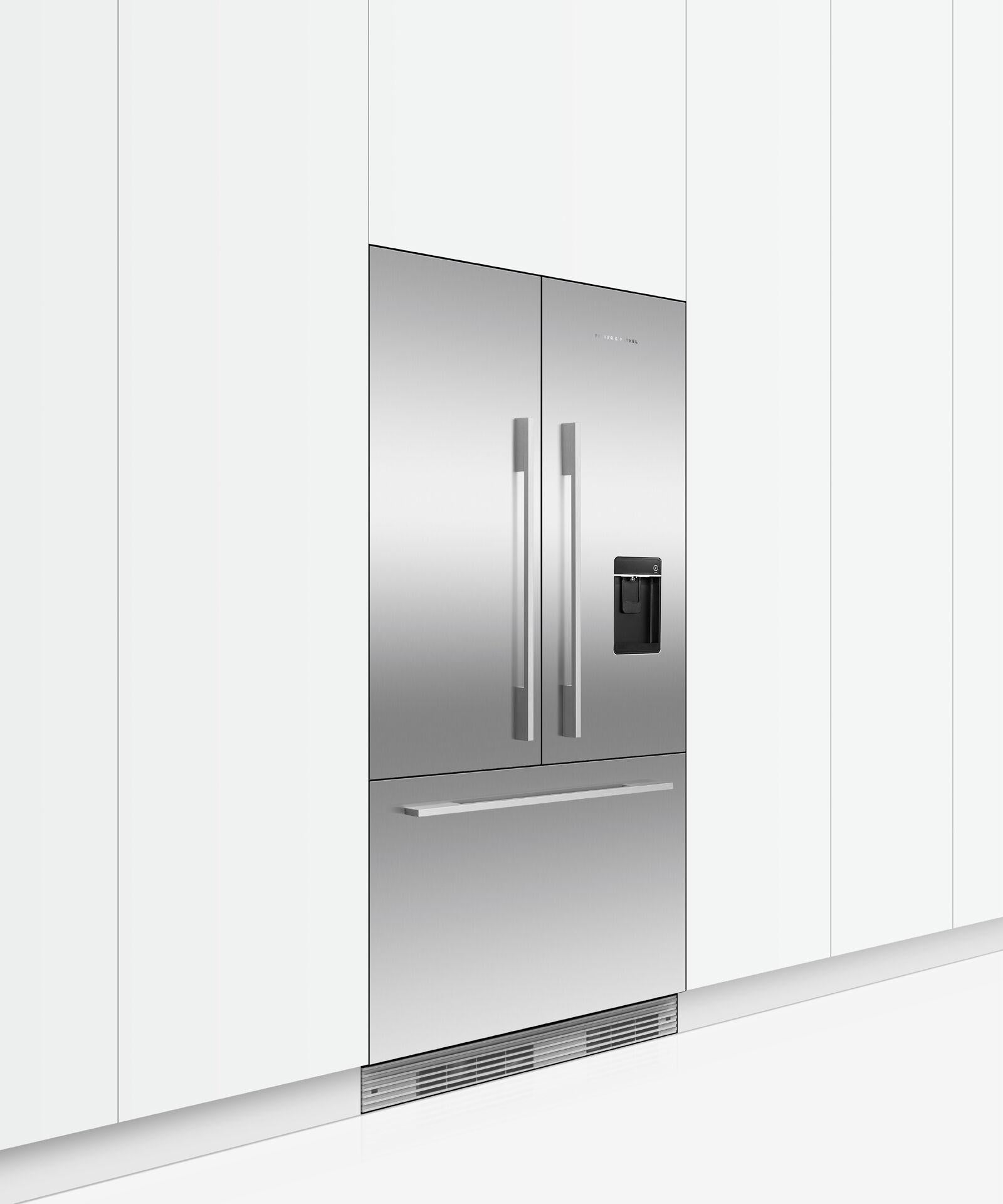

Seamless Integration – Designed to blend perfectly with your kitchen cabinetry.
-
Advanced Cooling Technology – Maintains optimal temperature and humidity for food preservation.
Q&A
Q: What is the Fisher & Paykel RS36A72U1N?
A: The Fisher & Paykel RS36A72U1N is a 36" integrated French door refrigerator-freezer with built-in ice and water dispensing, designed to blend seamlessly with kitchen cabinetry.
Q: Does this refrigerator have an ice and water dispenser?
A: Yes, it features an internal water dispenser and an automatic ice maker for convenient access to fresh, filtered water and ice.
Q: What makes this refrigerator "integrated"?
A: The integrated design allows it to be fitted with custom panels to match your kitchen cabinetry for a sleek, built-in look.
Q: How energy efficient is this model?
A: This refrigerator is designed to meet high energy efficiency standards, helping to reduce energy consumption while maintaining optimal cooling performance.
Q: Is professional installation required?
A: Yes, professional installation is recommended to ensure proper panel alignment and water line connection.
Maintenance Tips
-
Clean Regularly: Wipe the interior and exterior with a soft cloth and mild detergent to prevent fingerprints, smudges, and spills.
-
Avoid Abrasive Cleaners: Use non-abrasive cleaners to protect the finish and prevent scratches.
-
Check & Clean Door Seals: Ensure door gaskets are clean and intact to maintain energy efficiency and prevent air leaks.
-
Clean Coils: Vacuum or dust the condenser coils every 3–6 months for optimal cooling performance.
-
Maintain Ice & Water Dispenser: Regularly clean the ice maker and water dispenser to prevent mineral buildup and ensure fresh-tasting ice and water.
-
Monitor Temperature Settings: Keep the refrigerator at 34-40°F and the freezer at 0°F for proper food preservation.
-
Clear Drain Lines: Ensure the defrost drain is clear to prevent water buildup inside the unit.
