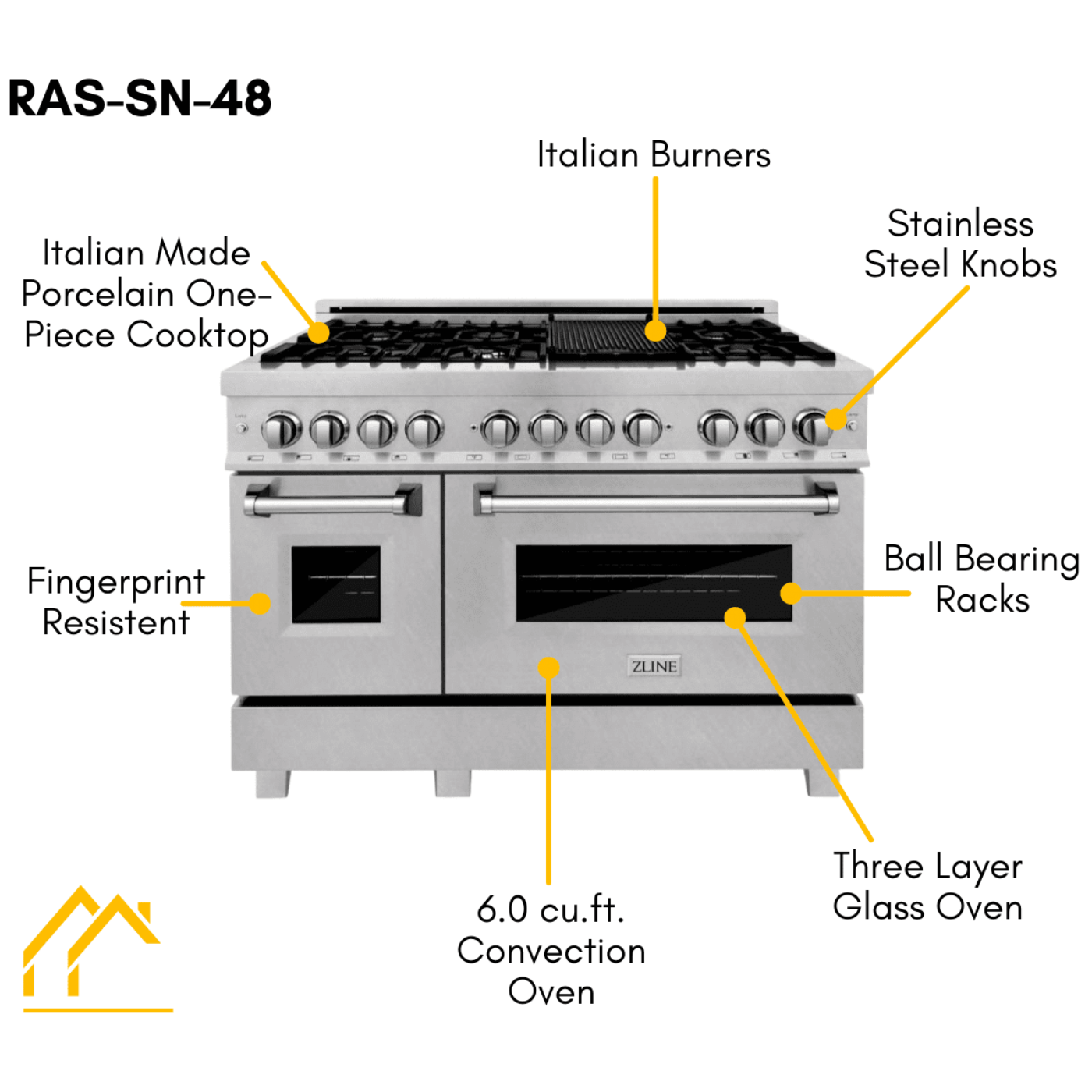

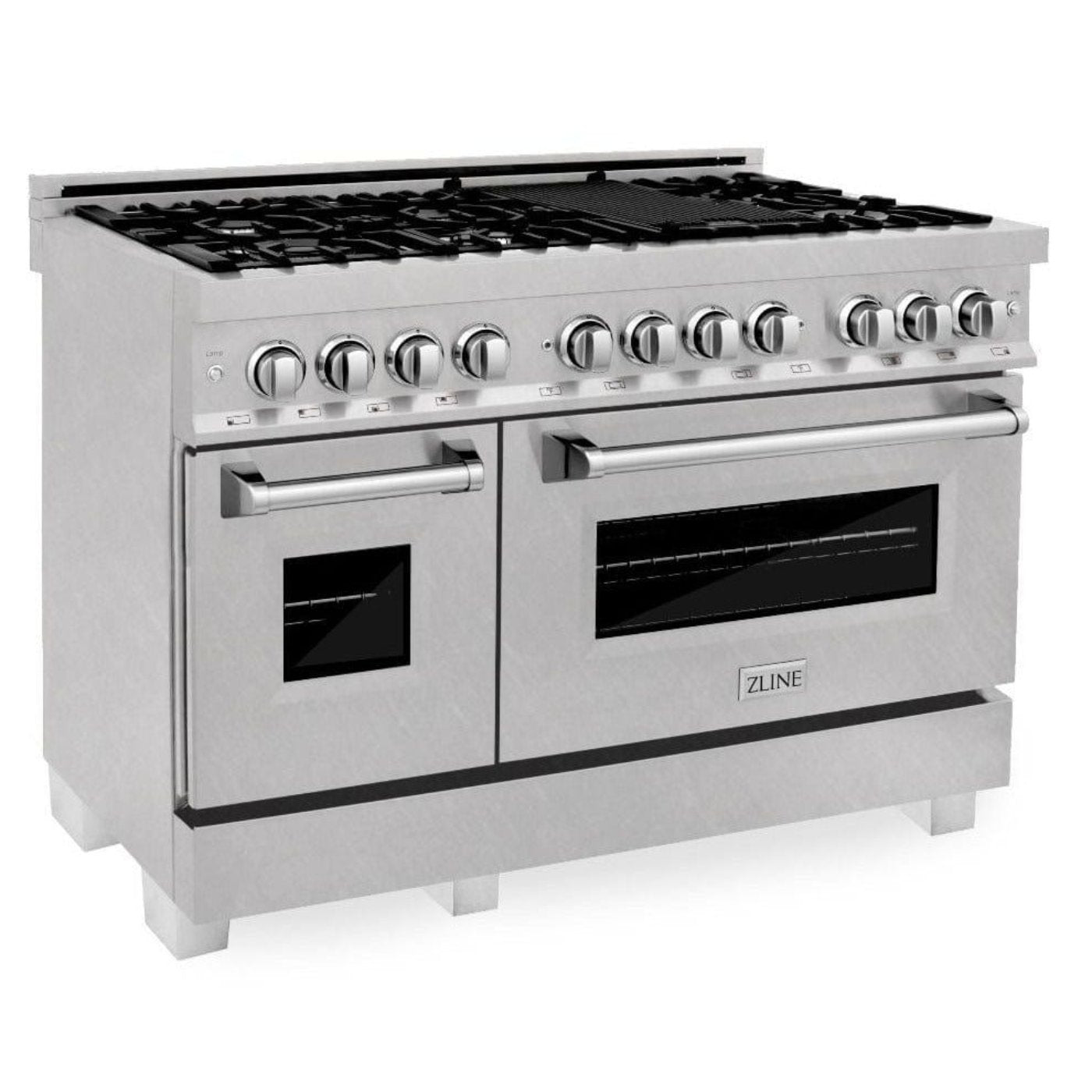

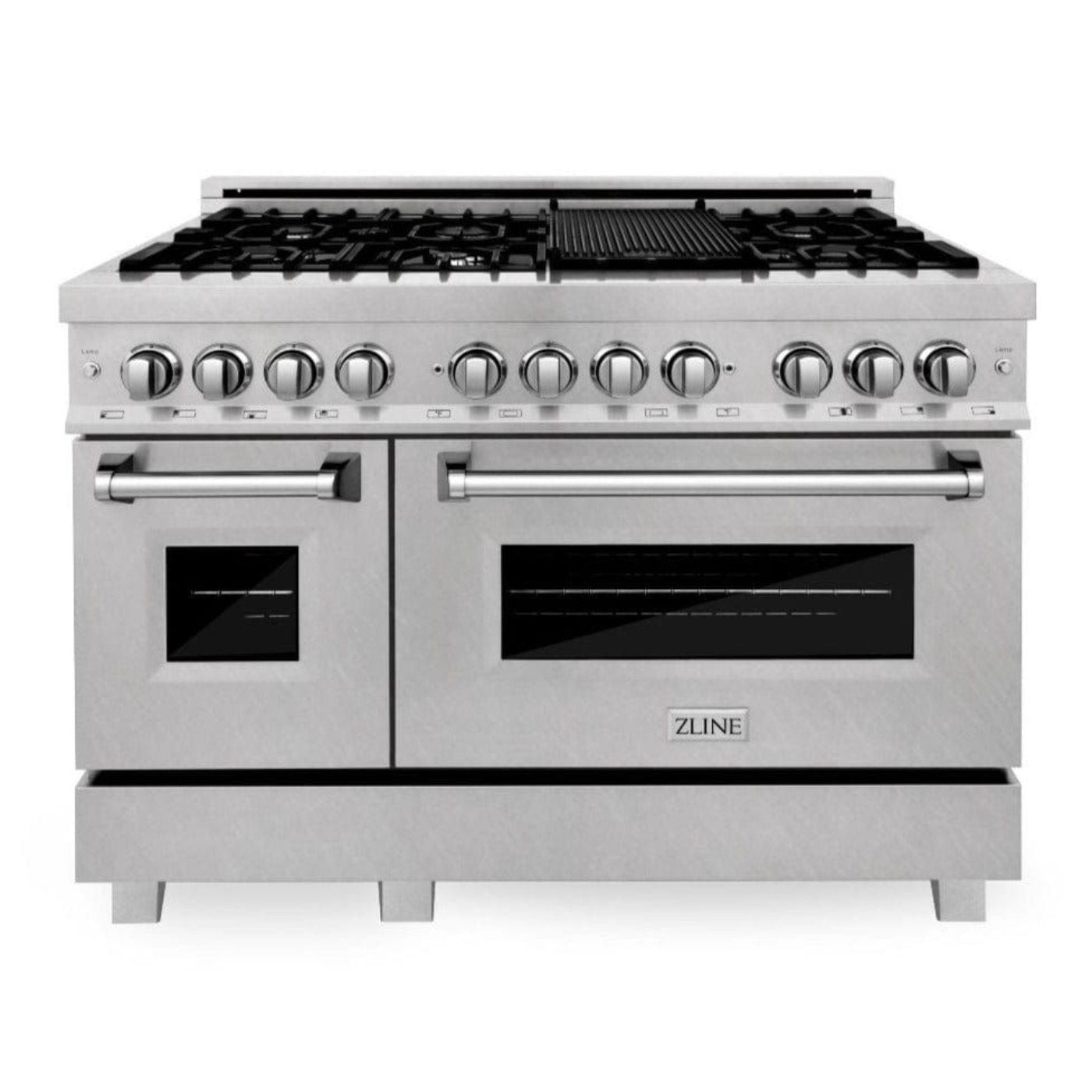

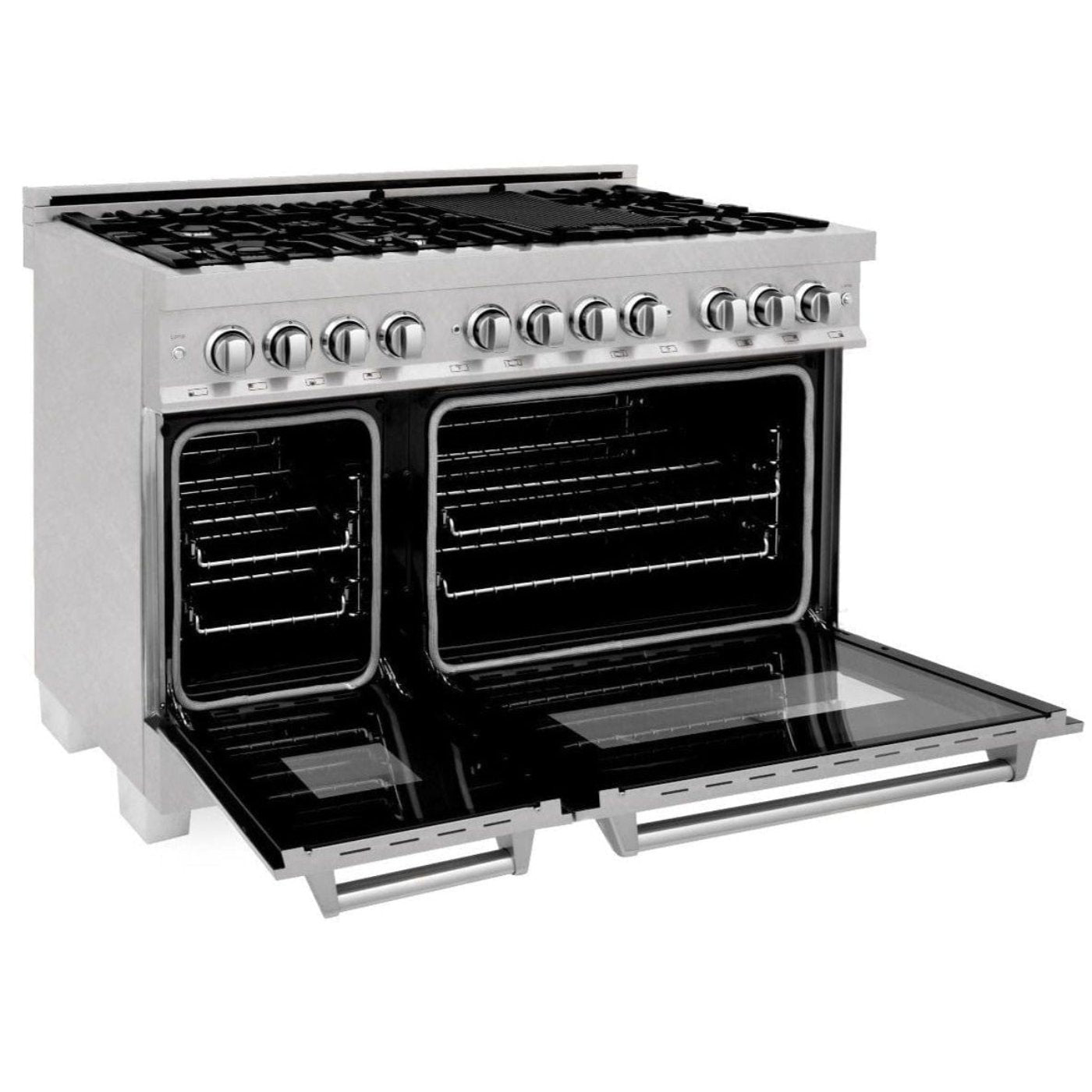

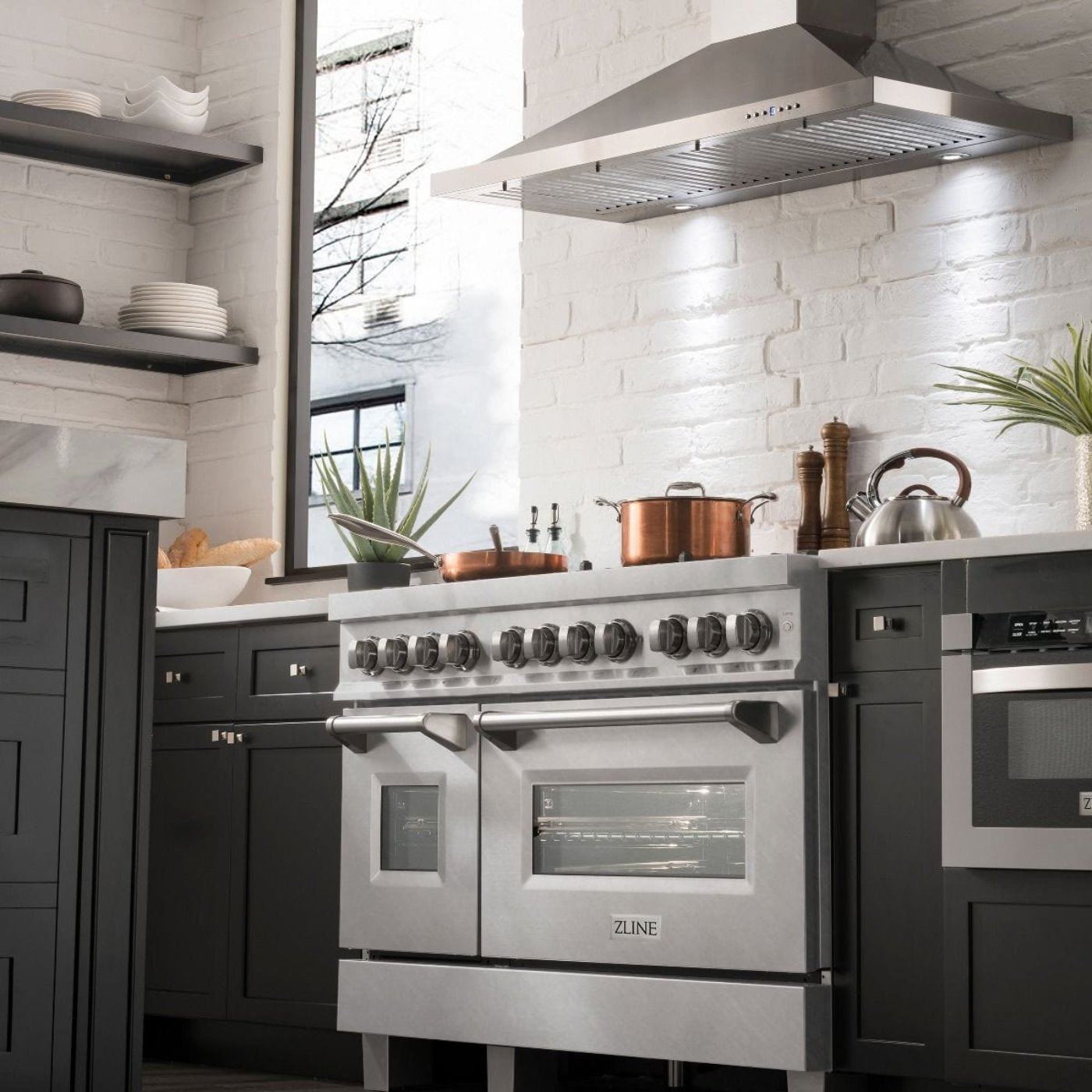

ZLINE 48 in. Professional Gas Burner/Electric Oven in DuraSnow® Stainless with 6.0 cu.ft. Oven, RAS-SN-48

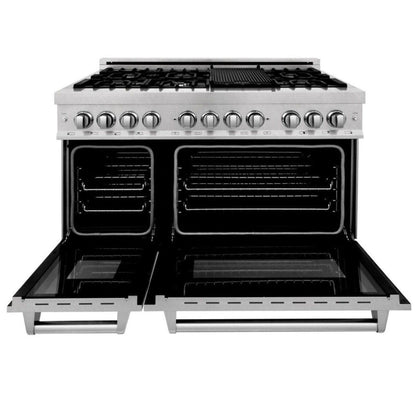

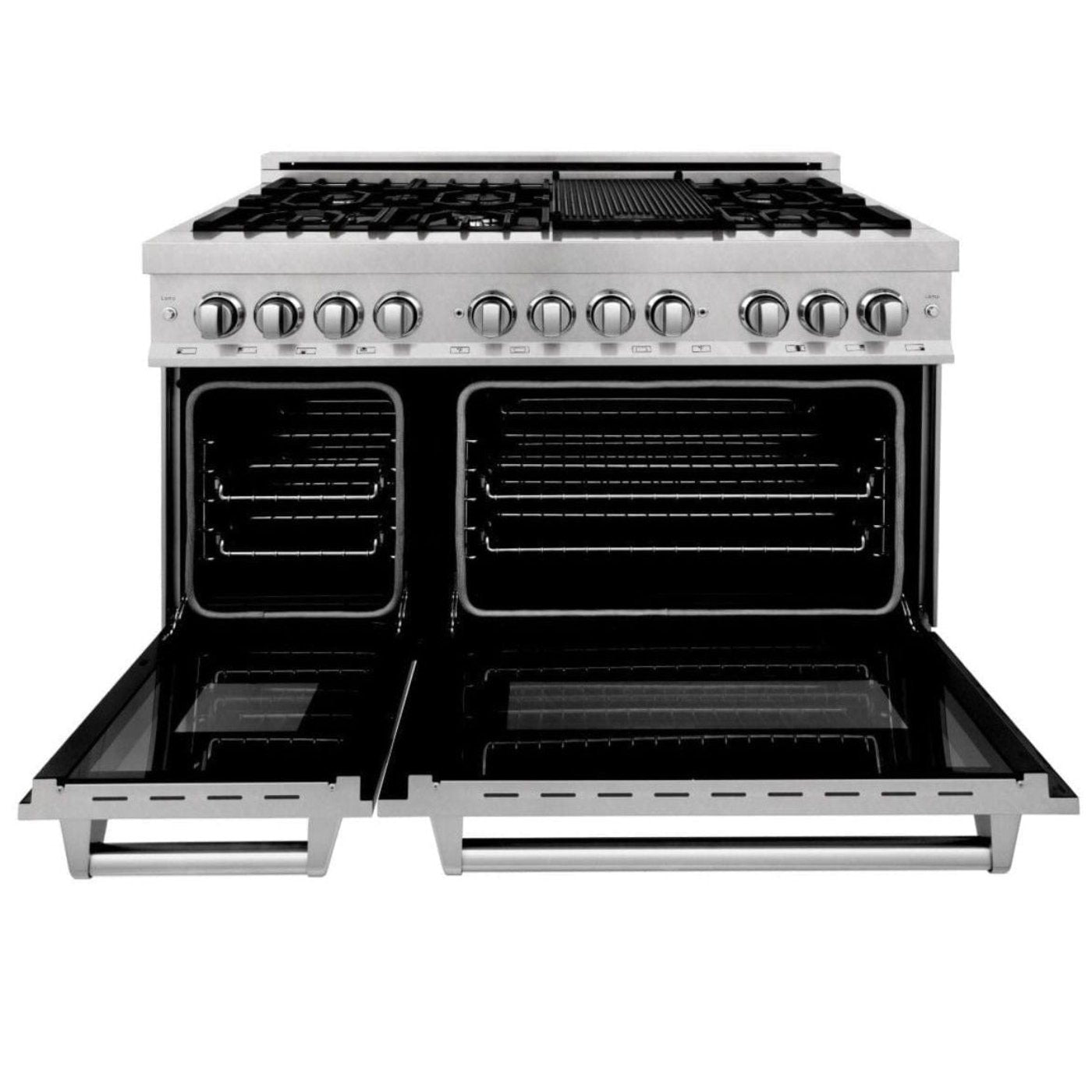

ZLINE's Professional 48" Range is complete with a 7 burner gas cooktop for energy efficiency, temperature control, and even-cooking. The 6.0 cu.ft. of deep oven capacity provides a large cooking area that's perfect for multiple dishes at once and easily handles large baking sheets, like an 18" pizza.

THREE-LAYER GLASS OVE

• An oven with three layers of glass and dual lighting.
• Professional aluminum mesh seal for optimum insulation.
• Oven light controlled by a light switch located on the front control panel.
• Crystal clear visibility to see inside your oven while cooking.

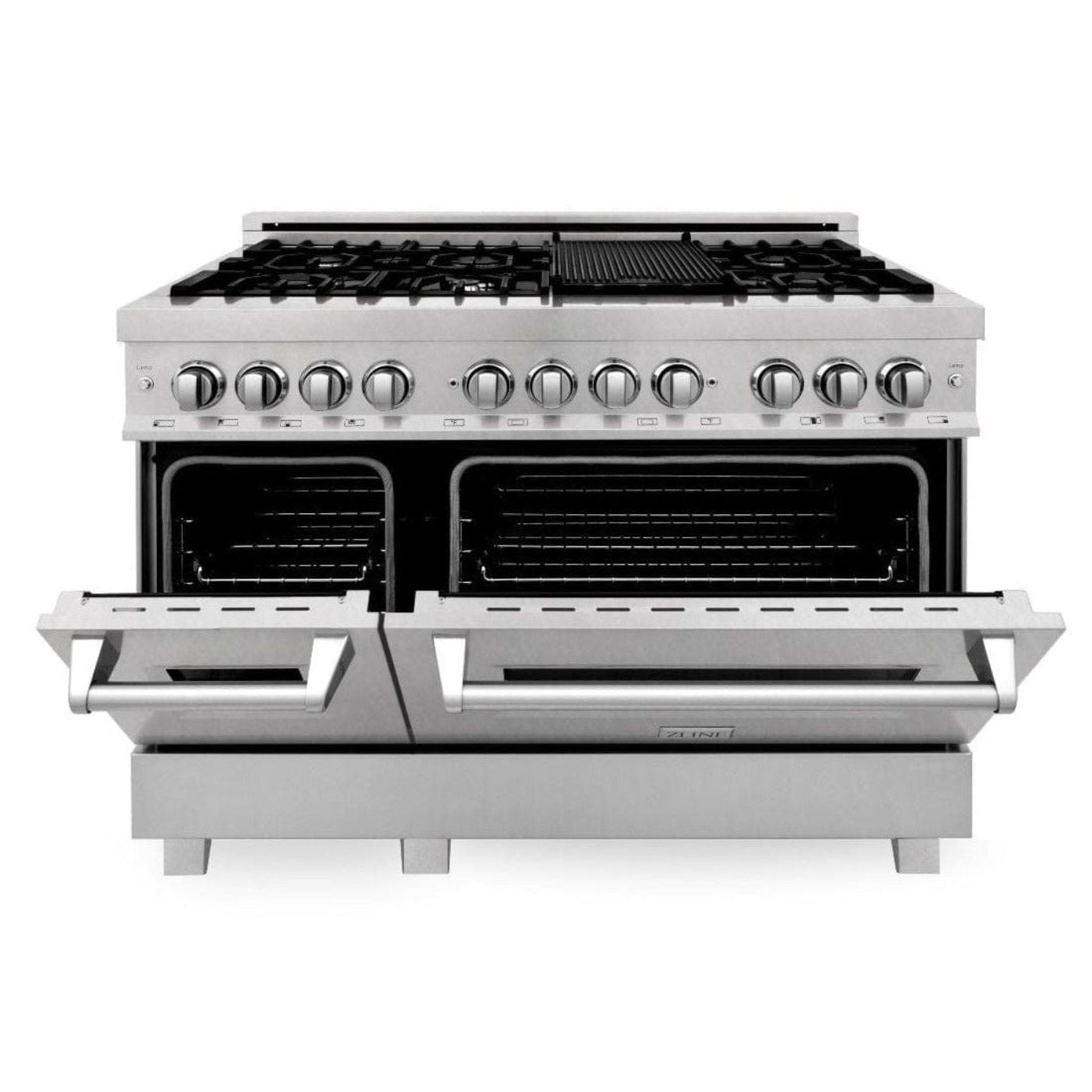

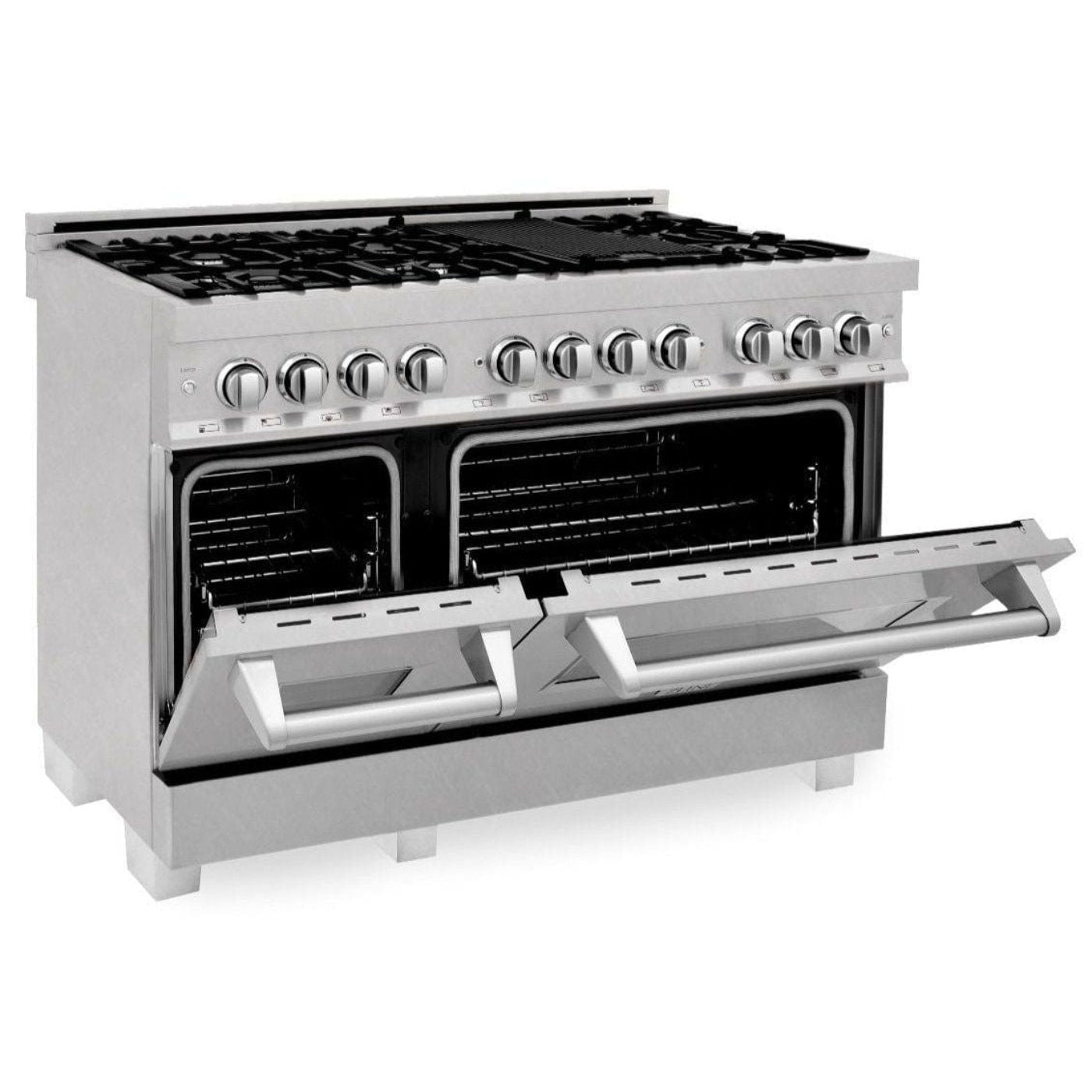

STAY-PUT HINGES

• ZLINE's proprietary stay-put hinges.
• Designed to support the full weight of oven door and stop at any place.
• Durable and effective, with a smooth action.

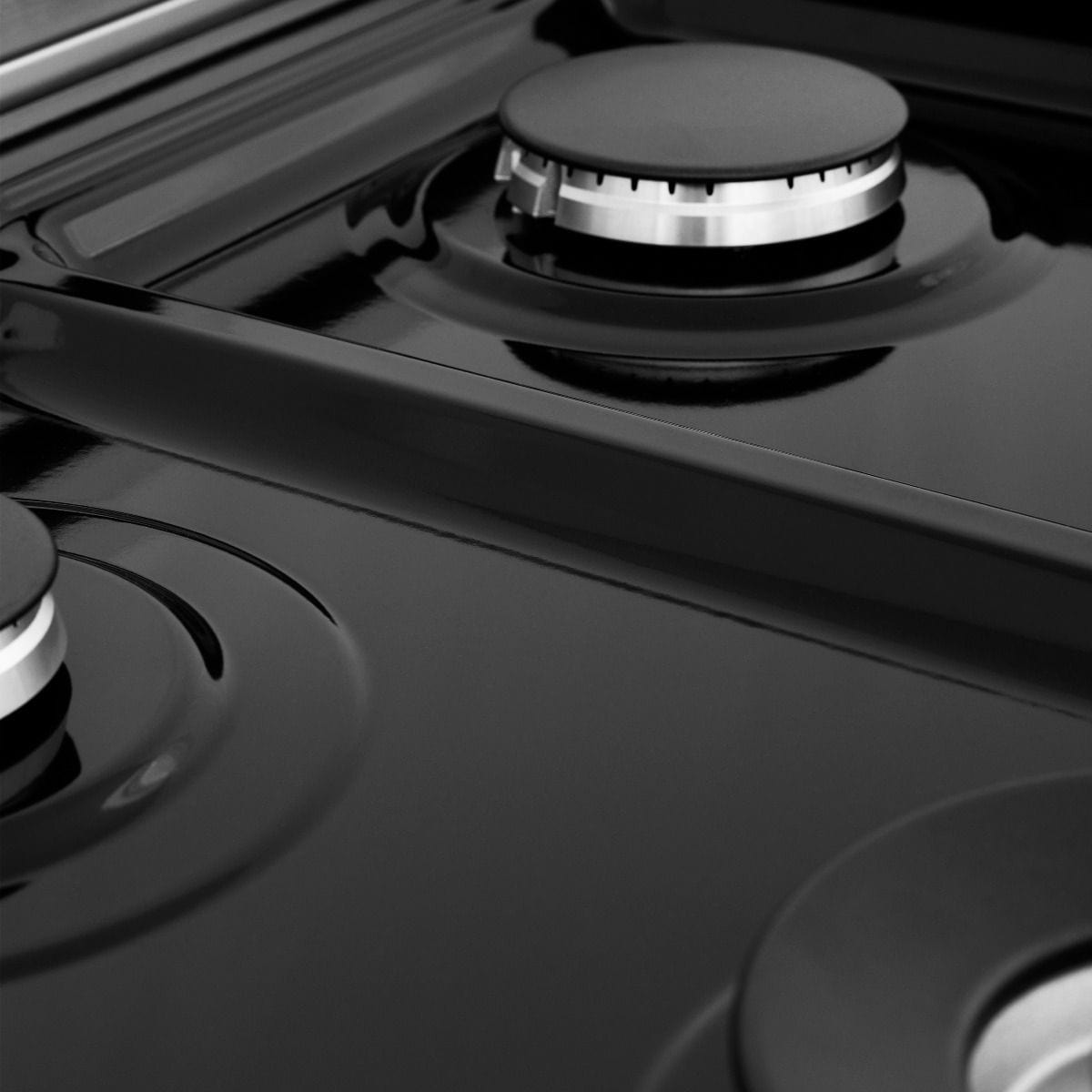

PORCELAIN COOKTOP

• Heavy Duty Italian made porcelain one-piece cooktop.
• 7 burners provide the perfect range of cooking power from 4,200 to 18,000 BTU's.
• One-piece cooktop allows for an easy to clean surface - no crevices that can hold residue.
• No-scratch porcelain designed to handle every cooking environment.

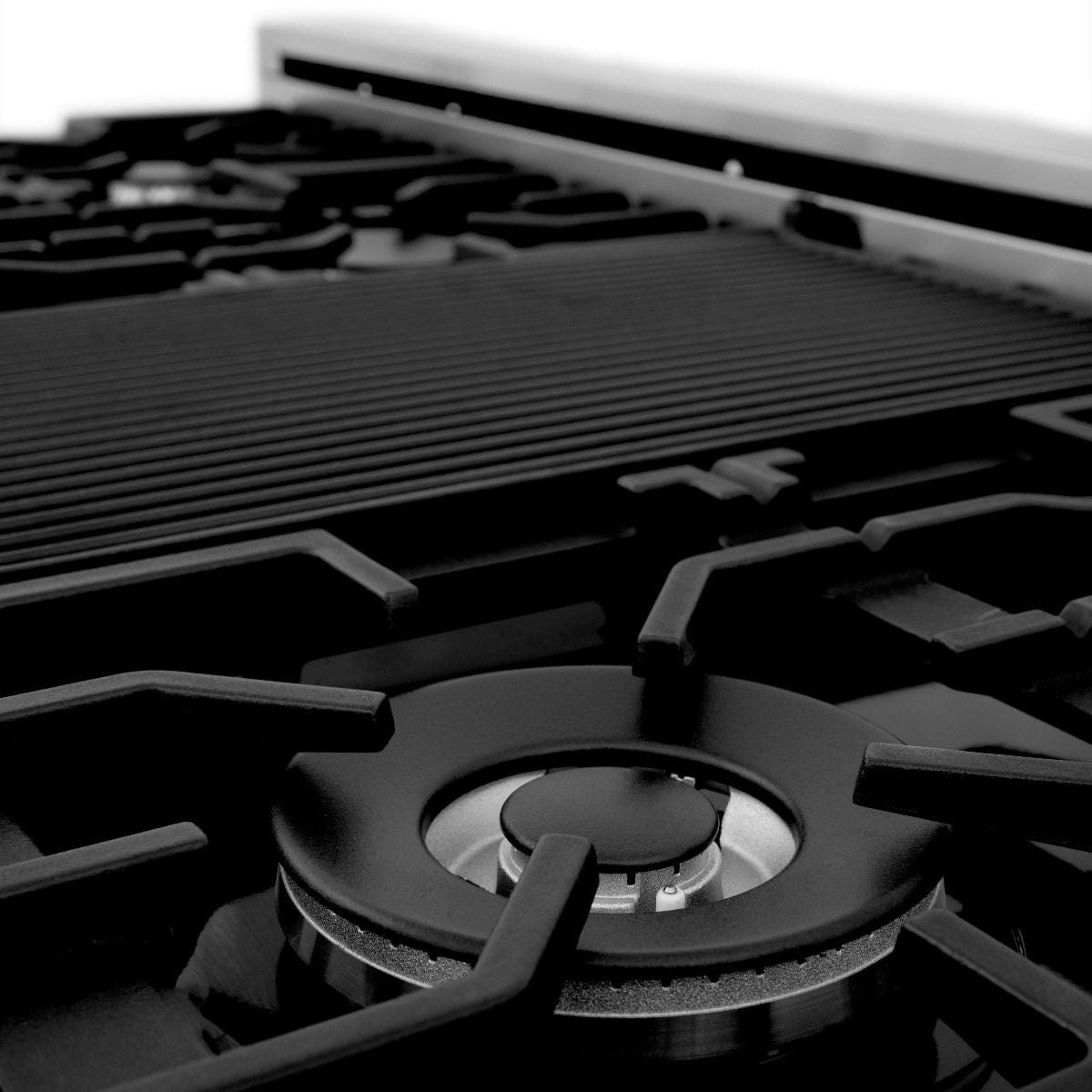

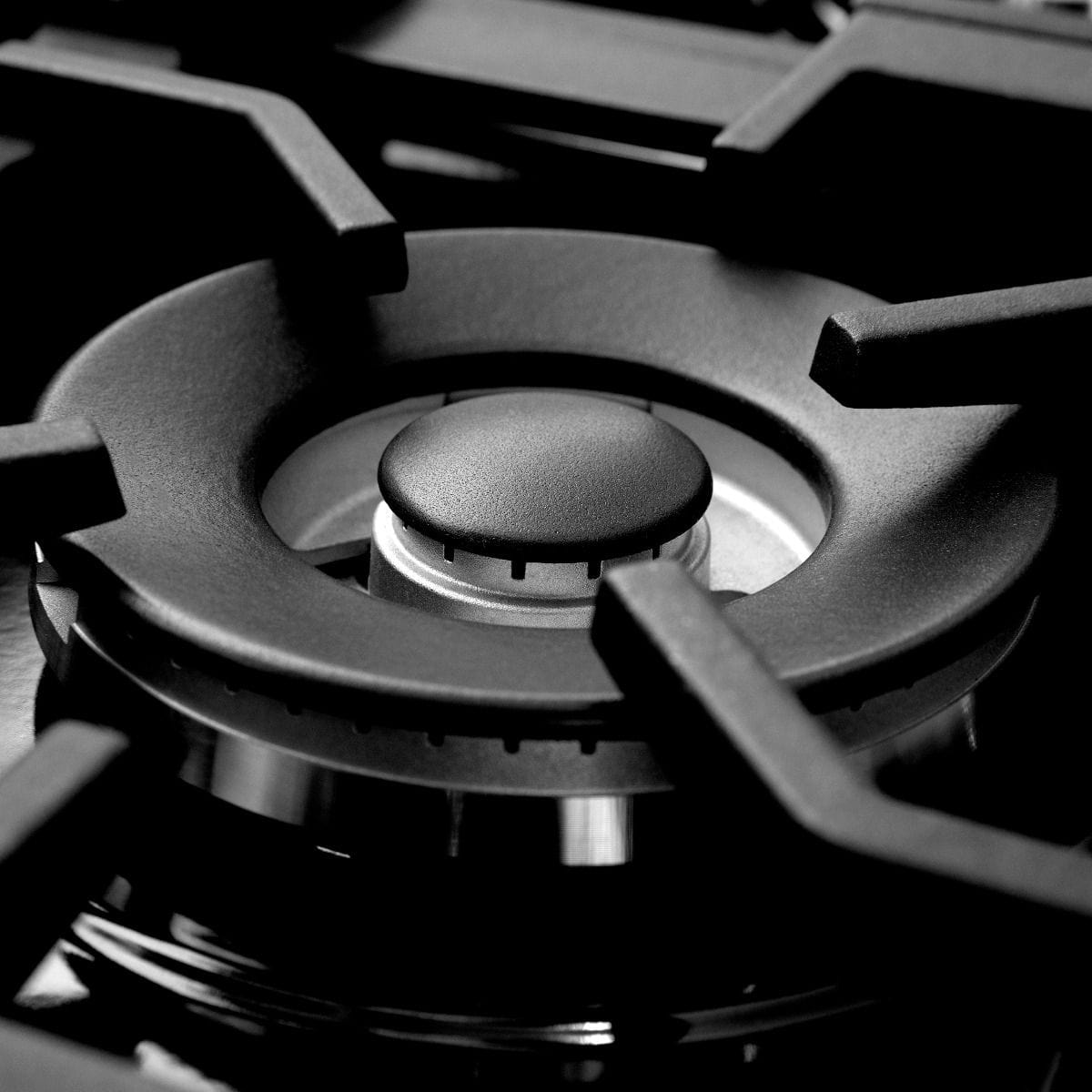

CAST IRON GRILL

• Solid-piece cast iron grill - heavy duty and built to last.
• Extremely durable, with an exceptional strength-to-weight ratio.

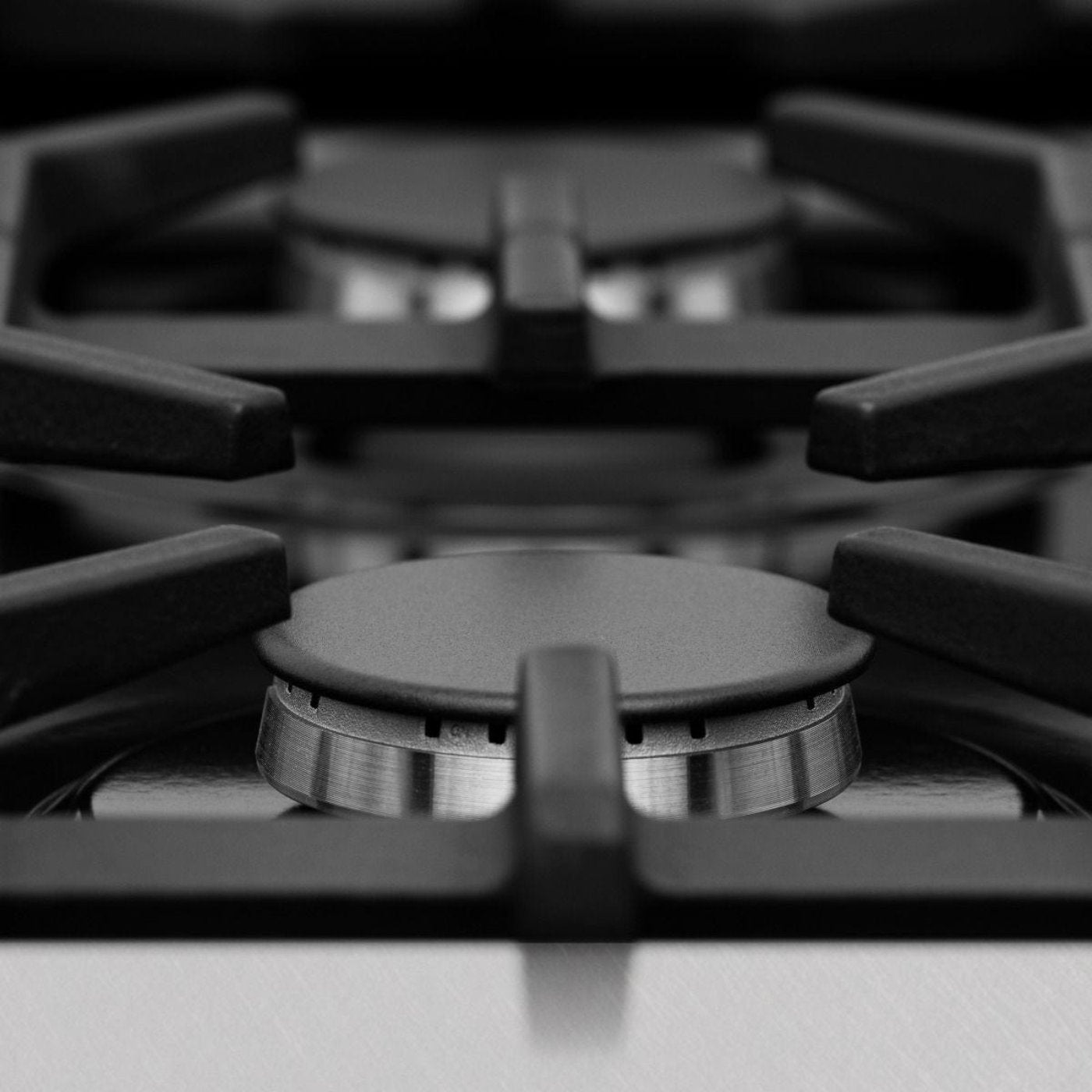

ITALIAN BURNERS

• Handcrafted, high-quality Italian burners imported directly from Italy.
• Premium alloy to ensure efficient and clean-burning flames.
• Durable and easy to clean. Italian burners easily detach for a simple clean.

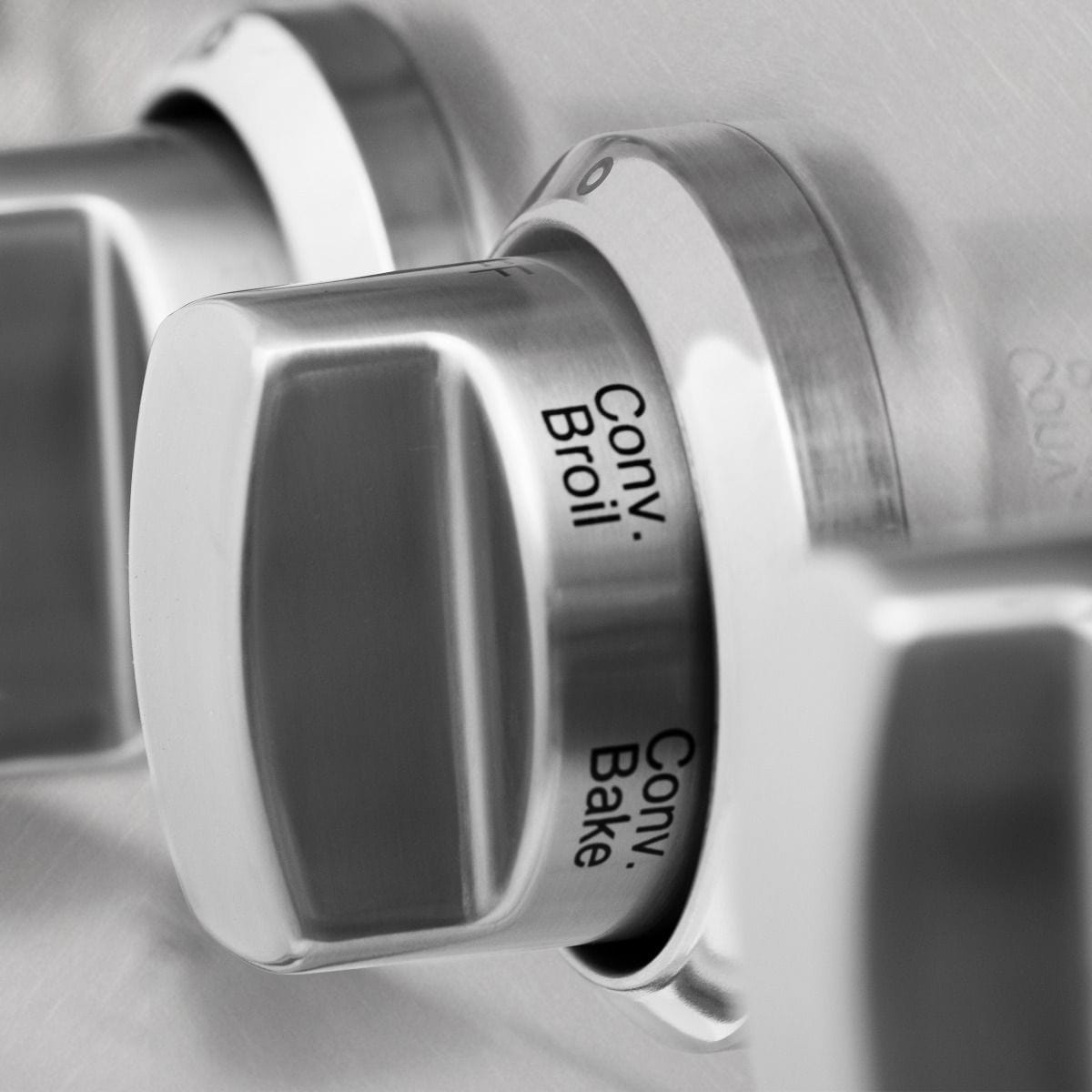

STAINLESS STEEL KNOBS

• Heavy duty stainless steel knob controls with smooth action turn.
• 5 oven settings.

ADJUSTABLE LEGS

• ZLINE ranges feature stainless steel, easy-to-install adjustable legs
• Twist legs to adjust total range height anywhere from 36" to 38.5"

OVEN FUNCTIONS

• High Bake
• Low Bake
• Broil
• Convection Bake
• Convection Broil

Convection Fan can be turned on or off by the oven knobs.

SPECIFICATIONS

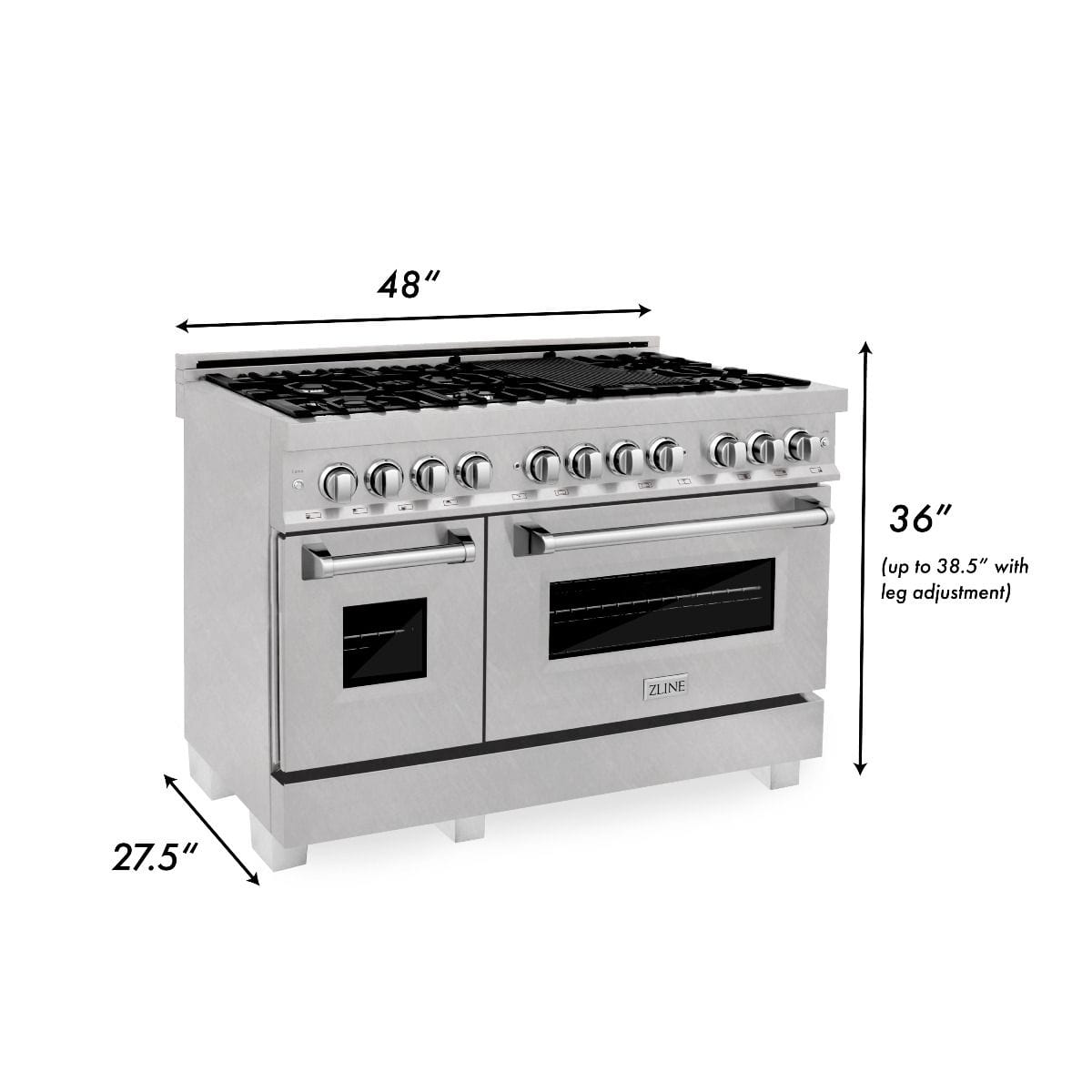

Dimensions:	48" W x 27.38" (29" w/handle) D x 36"H
Oven Dimension:	26.5"/12.5 W x 18.5" D x 14" H
Lighting:	Dual Lighting, controlled by a light switch on the front control panel
Voltage:	*Requires a minimum of 220V-240V/60HZ/30-50A (please check your kitchen meets this electrical requirement prior to purchase) NEMA-14-50 4 wire plug system
Mount Type:	Free Standing
Control Type:	Durable Front Control
Material:	- Stainless Steel frame with 1 Piece porcelain Top - Italian made hinges and burners
Warranty:	1 Year Full Warranty
Certifications:	ETL Certified
Product Weight:	270 lbs
Cooktop:	- Cooktop: (7) Burners with porcelain Cook Top with electronic spark ignition for all burners - Type: Gas or Propane - This range is shipped for use with natural gas. It also has an LP conversion kit for propane use included.
Oven:	- Convection Electric - 6.0 cu.ft. deep oven - Triple Glass Window - Dual Lighting - Professional Aluminum mesh Seal - Red indicator light shuts off to let you know when oven has reached desired temperature
BTU Ratings:	- Dual Burner (x2) - 18,000 BTU - Rapid Burner - 13,000 BTU - Griddle Burner - 13,000 BTU - Semi-Rapid Burner (x2) - 8,500 BTU - Auxiliary Burner - 4,200 BTU
Fuel Type:	- Cooktop: Gas or Propane - Oven: Convection Electric
UPC:	812316034538

Product Manual

INSTALLATION INSTRUCTIONS

What Our Experts Think

• Gas Burners & Electric Oven: Offers the perfect combination of gas precision and electric oven consistency for versatile cooking.
• DuraSnow® Stainless Finish: Fingerprint-resistant and highly durable, maintaining a sleek and modern look with easy maintenance.
• 6.0 Cu. Ft. Oven Capacity: Large capacity for preparing multiple dishes or large meals with ease.
• Heavy-Duty Burners: High-powered gas burners provide responsive heat for various cooking techniques.
• Spacious Oven: Ideal for roasting, baking, and cooking large quantities, with even heat distribution.
• Professional-Grade Performance: Designed for durability and precision, making it perfect for home chefs who demand excellence.

Q&A

Q: What are the key features of the ZLINE 48 in. Professional Gas Burner/Electric Oven?
A: This range combines a powerful gas burner cooktop with a 6.0 cu. ft. electric oven, featuring a DuraSnow® stainless steel finish for enhanced durability and a sleek, easy-to-maintain appearance.

Q: What is the DuraSnow® finish?
A: The DuraSnow® finish is a high-quality, fingerprint-resistant stainless steel that provides long-lasting durability and maintains a pristine, modern look with minimal effort.

Q: What is the oven capacity?
A: The oven has a spacious 6.0 cu. ft. capacity, ideal for cooking large meals, baking, roasting, or broiling.

Q: How many burners does the cooktop have?
A: The cooktop includes multiple high-performance gas burners, offering versatility and precise heat control for all your cooking needs.

Q: Why should I choose this range?
A: With its combination of a gas burner cooktop, a spacious electric oven, and a durable DuraSnow® stainless steel finish, this range offers both professional-grade cooking performance and a stylish, easy-to-clean design

Maintenance Tips

• Exterior Cleaning:

  • Clean the DuraSnow® stainless steel surface with a soft cloth and mild soap to remove fingerprints, grease, and stains. Avoid abrasive cleaners or scrubbers to protect the finish.
  • Use a microfiber cloth to buff the surface and maintain its smooth, matte look.

• Burner Maintenance:

  • After each use, clean the burner grates and caps with warm, soapy water to remove food residue. Dry them completely before reassembling.
  • Check burner ports regularly for blockages and clean with a small brush or pin to ensure the burners function properly.

• Oven Care:

  • Wipe down the oven interior after every use once it cools to prevent grease and food buildup.
  • Use a non-abrasive oven cleaner or the self-cleaning feature (if available) for deep cleaning.
  • Clean oven racks and check for smooth operation. If necessary, remove any food residue or rust.

• Knobs & Control Panel:

  • Clean the knobs and control panel with a soft cloth to remove grease, spills, or stains. Avoid excess moisture to protect the control mechanisms.

• DuraSnow® Finish Maintenance:

  • To protect the DuraSnow® finish, avoid using harsh chemicals or abrasive cleaning tools. Clean the surface gently to preserve its matte appearance and durability.

• Gas Burner Safety:

  • Regularly inspect gas lines and burners for leaks or damage. If you smell gas, turn off the appliance and contact a professional immediately.

• General Maintenance:

  • Ensure the oven door seals are in good condition and free from debris to maintain a tight seal and efficient cooking.
  • Periodically check all screws and components to ensure they are securely fastened.
